HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032115821

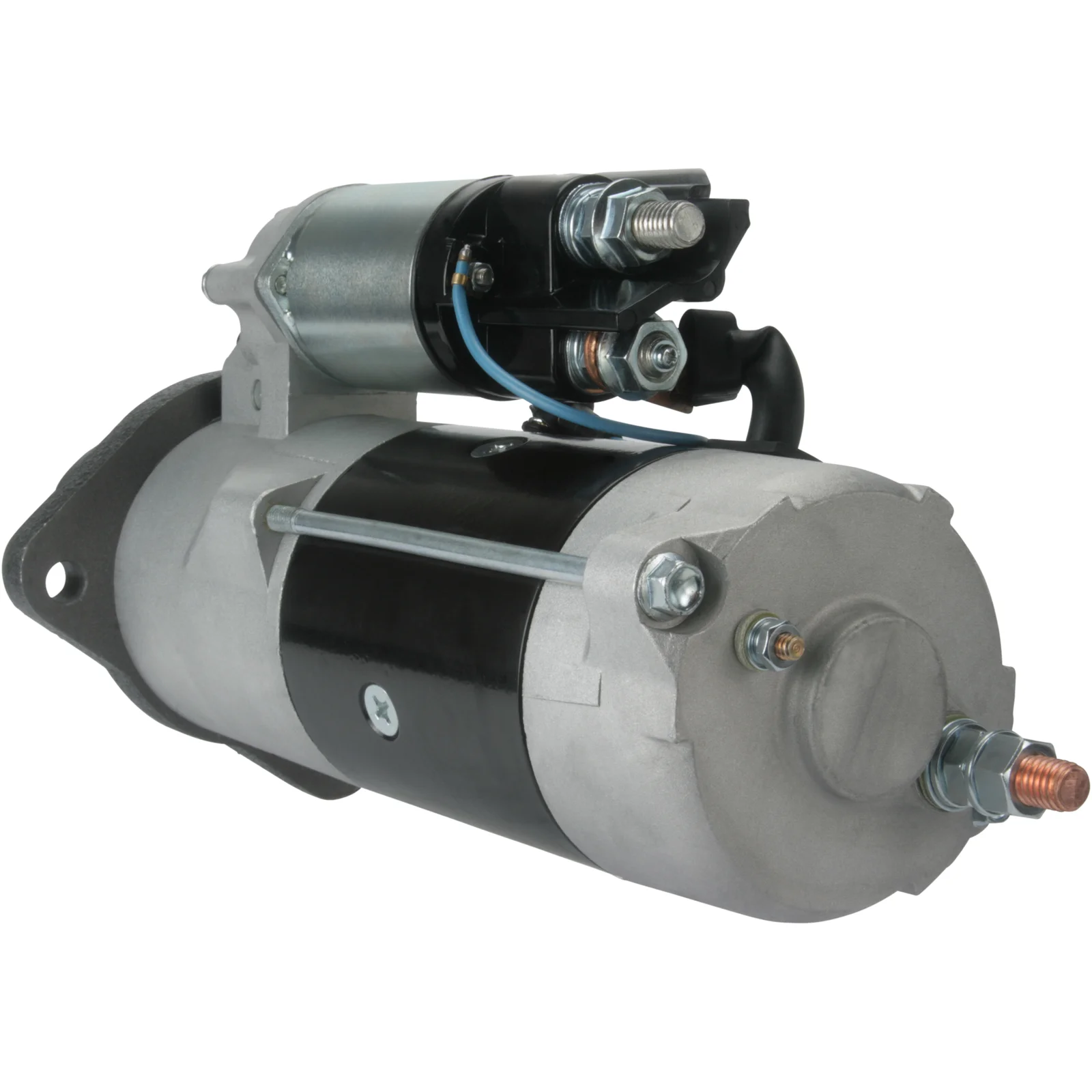

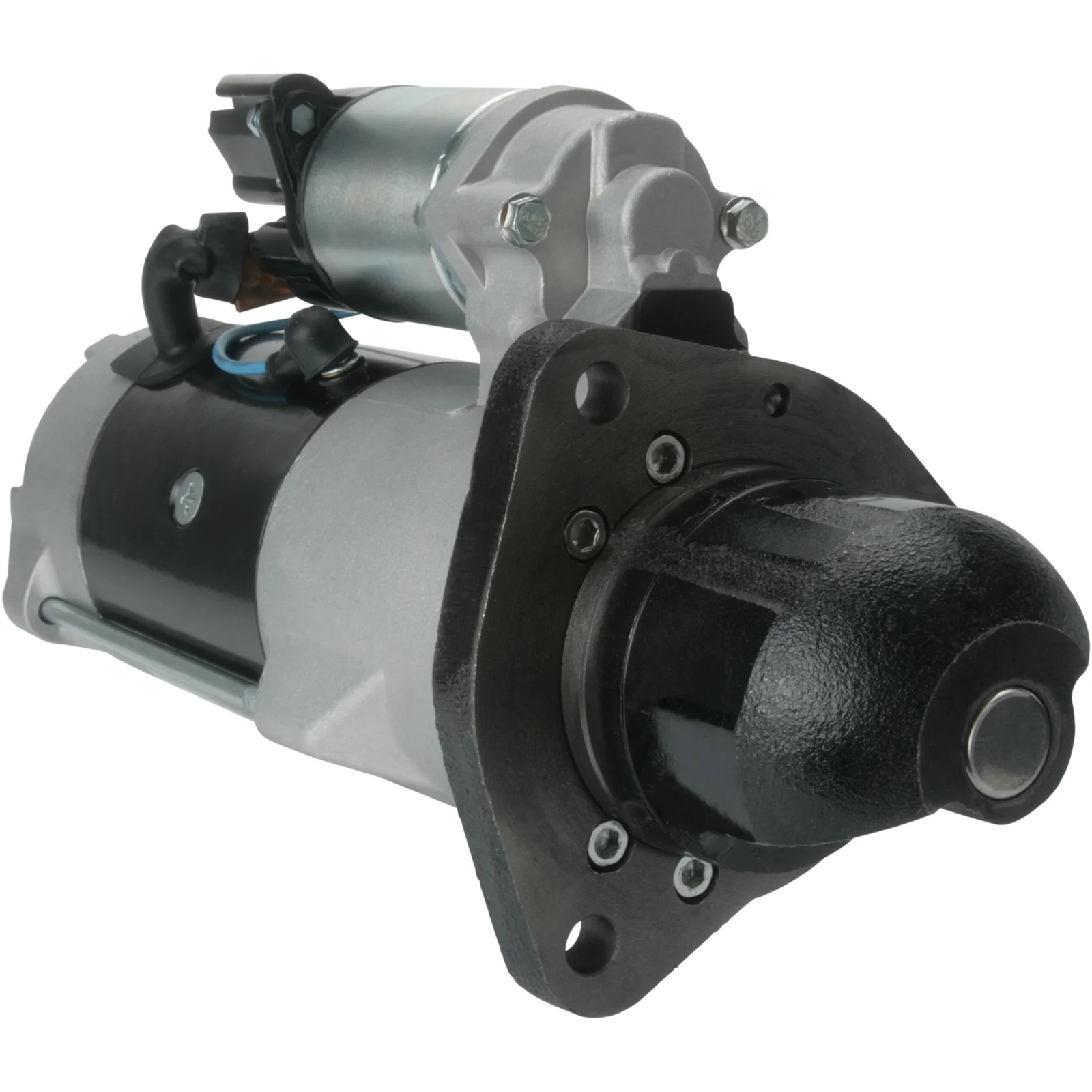

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 8.0, No./teeth: 12, Rotation: CW

Description

Voltage: 24
kW: 8.0
Insulated return: Yes
Mounting flange: 92.00
Drive distance: 46.00
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 308.00
Distance / front: 96.00
Number / teeth: 12
B+: 1/2" UNC
Thread length mm: 26.00
Position / 50: 15
Terminal 50: 3/16" UNF
Gear type: GR
Distance 2: 126.50
Distance 3: 126.50
Distance mm: 126.50
Rotation: CW
Position / b-: 20
B-: 1/2" UNC
Total length mm: 447.00
Number / mounting holes: 3 (0)

Files

  • OEM
    F032115821, RE506826, RE515895, RE522852, 267-4624, 2873K414, 028000-7010, 428000-0130, 428000-0131, 2886976

  • Normalised article numbler
    cst40641, dsn2073, f032115821, re506826, re515895, re522852, s1133, s6181, 2873k414, 19859, 19859n, 107306, 2674624, 2886976, 0280007010, 641508133, 4280000130, 4280000131
  • Description
    Voltage: 24
    kW: 8.0
    Insulated return: Yes
    Mounting flange: 92.00
    Drive distance: 46.00
    Mounting hole 3 mm: 13.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 308.00
    Distance / front: 96.00
    Number / teeth: 12
    B+: 1/2" UNC
    Thread length mm: 26.00
    Position / 50: 15
    Terminal 50: 3/16" UNF
    Gear type: GR
    Distance 2: 126.50
    Distance 3: 126.50
    Distance mm: 126.50
    Rotation: CW
    Position / b-: 20
    B-: 1/2" UNC
    Total length mm: 447.00
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032115821, RE506826, RE515895, RE522852, 267-4624, 2873K414, 028000-7010, 428000-0130, 428000-0131, 2886976

    • Normalised article numbler
      cst40641, dsn2073, f032115821, re506826, re515895, re522852, s1133, s6181, 2873k414, 19859, 19859n, 107306, 2674624, 2886976, 0280007010, 641508133, 4280000130, 4280000131
