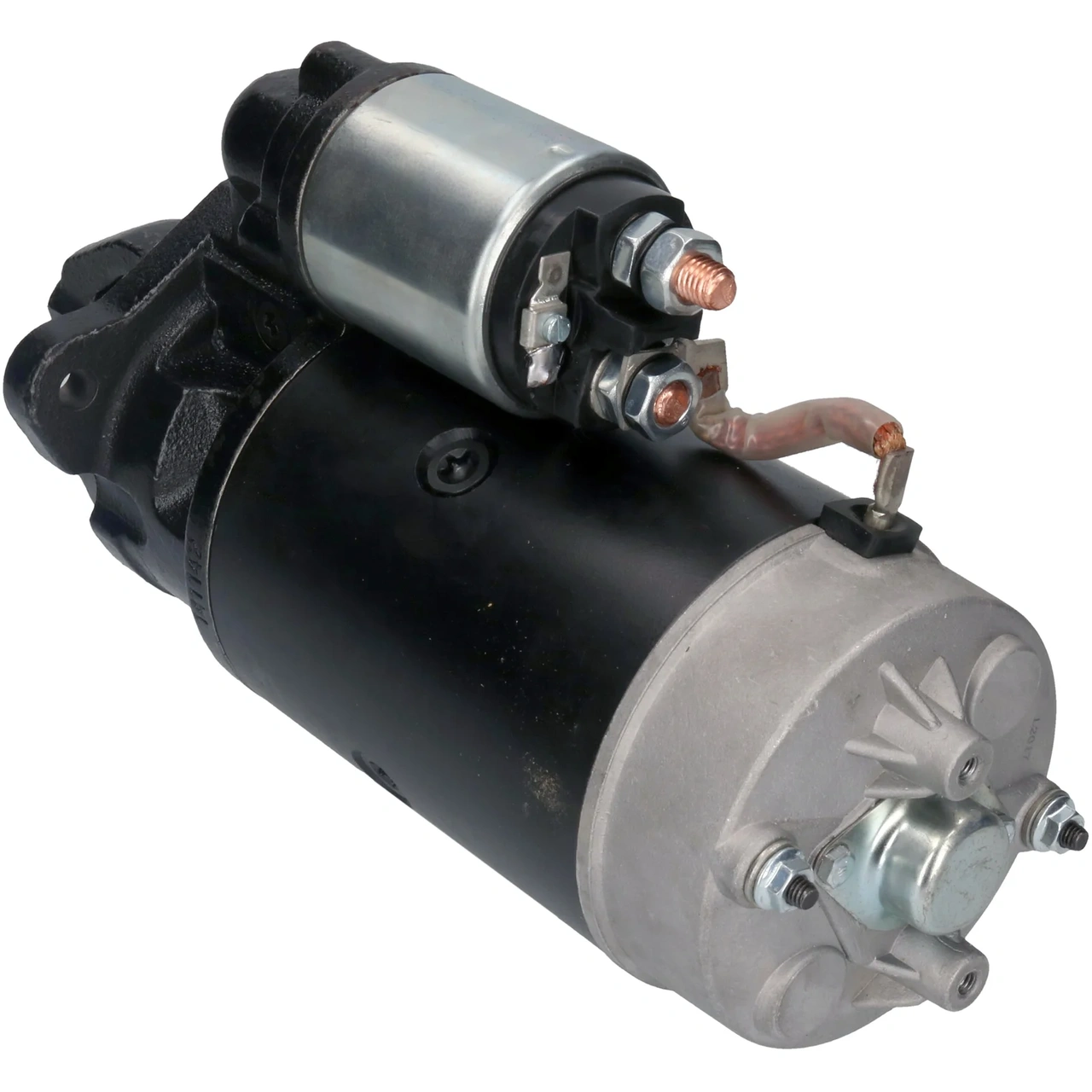

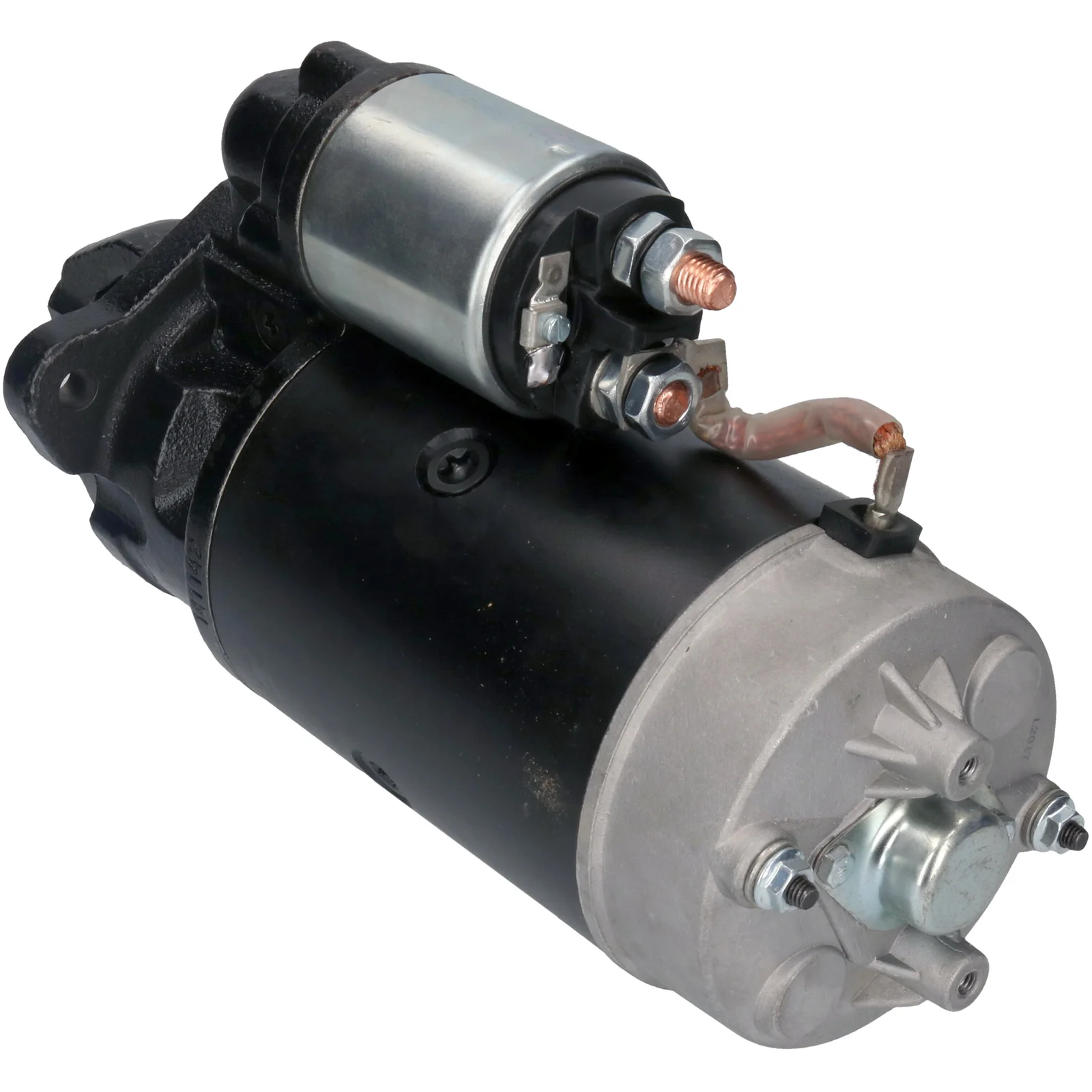

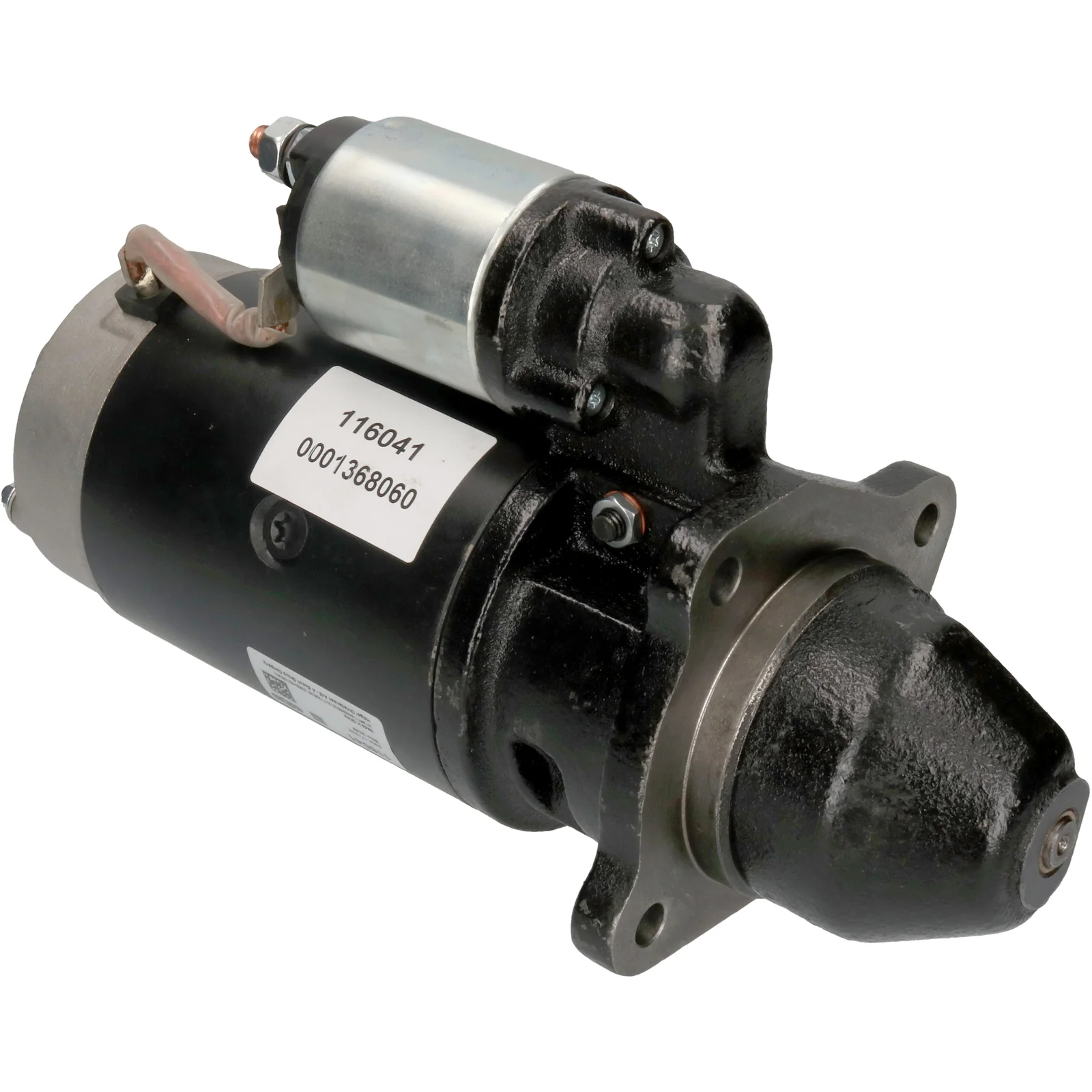

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116041

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 10, Rotation: CW

Description

Voltage: 24
kW: 4.0
Mounting flange: 89.00
Drive distance: 30.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 255.00
Distance / front: 77.00
Number / teeth: 10
B+: M10
Thread length mm: 9.00
Position / 50: 45
Terminal 50: M4
Gear type: DD
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 127.00
Rotation: CW
Total length mm: 341.00
Product info: BN
Number / mounting holes: 3 (0)

Files

  • OEM
    F032116041, 23300-8X800, 23300-9X800, 0001368060, 9000143304

  • Normalised article numbler
    cst10669, f032116041, s0570, 233008x800, 233009x800, 254275, 0001368060, 11090335, 161002103, 600061104, 9000143304
  • Description
    Voltage: 24
    kW: 4.0
    Mounting flange: 89.00
    Drive distance: 30.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 255.00
    Distance / front: 77.00
    Number / teeth: 10
    B+: M10
    Thread length mm: 9.00
    Position / 50: 45
    Terminal 50: M4
    Gear type: DD
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 127.00
    Rotation: CW
    Total length mm: 341.00
    Product info: BN
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116041, 23300-8X800, 23300-9X800, 0001368060, 9000143304

    • Normalised article numbler
      cst10669, f032116041, s0570, 233008x800, 233009x800, 254275, 0001368060, 11090335, 161002103, 600061104, 9000143304
