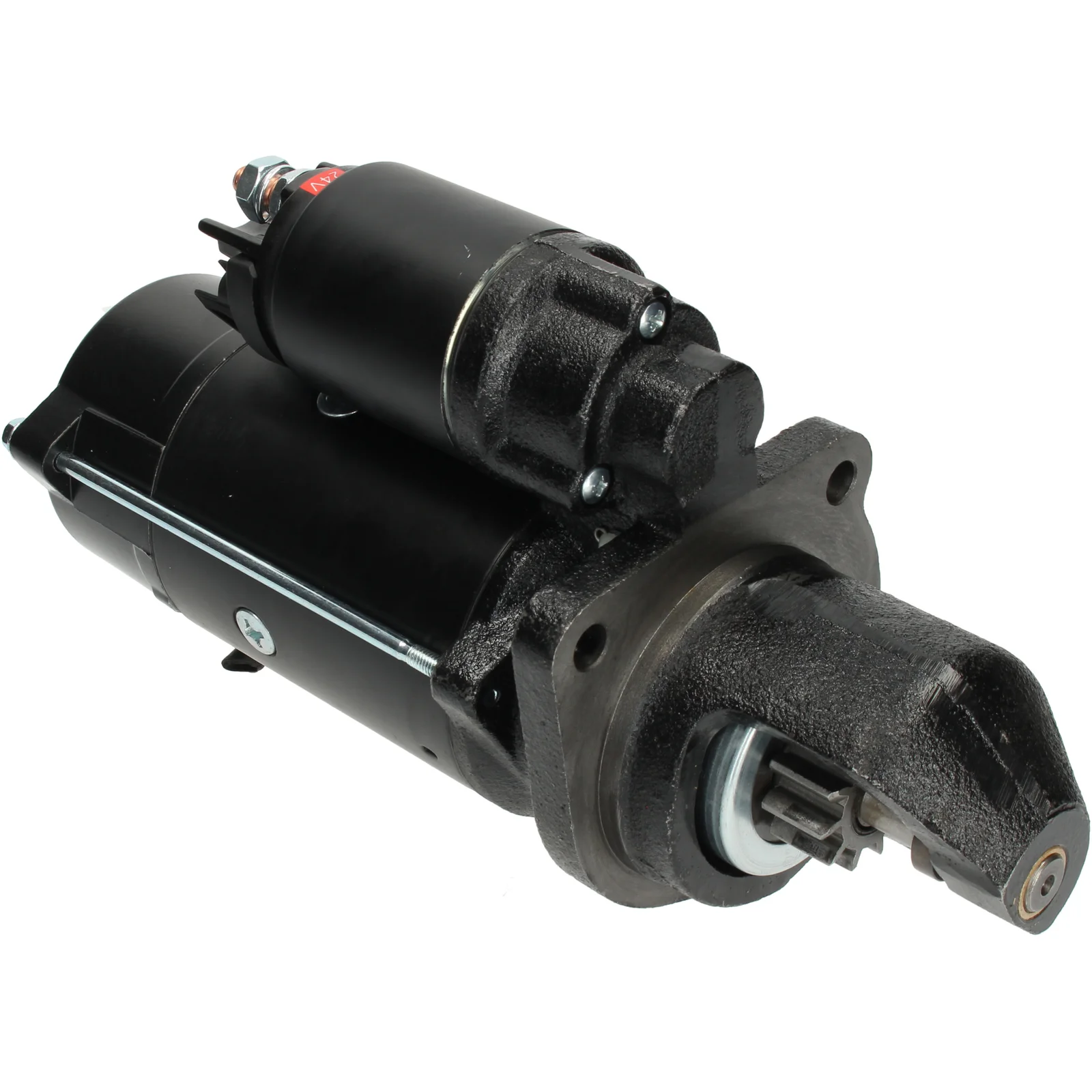

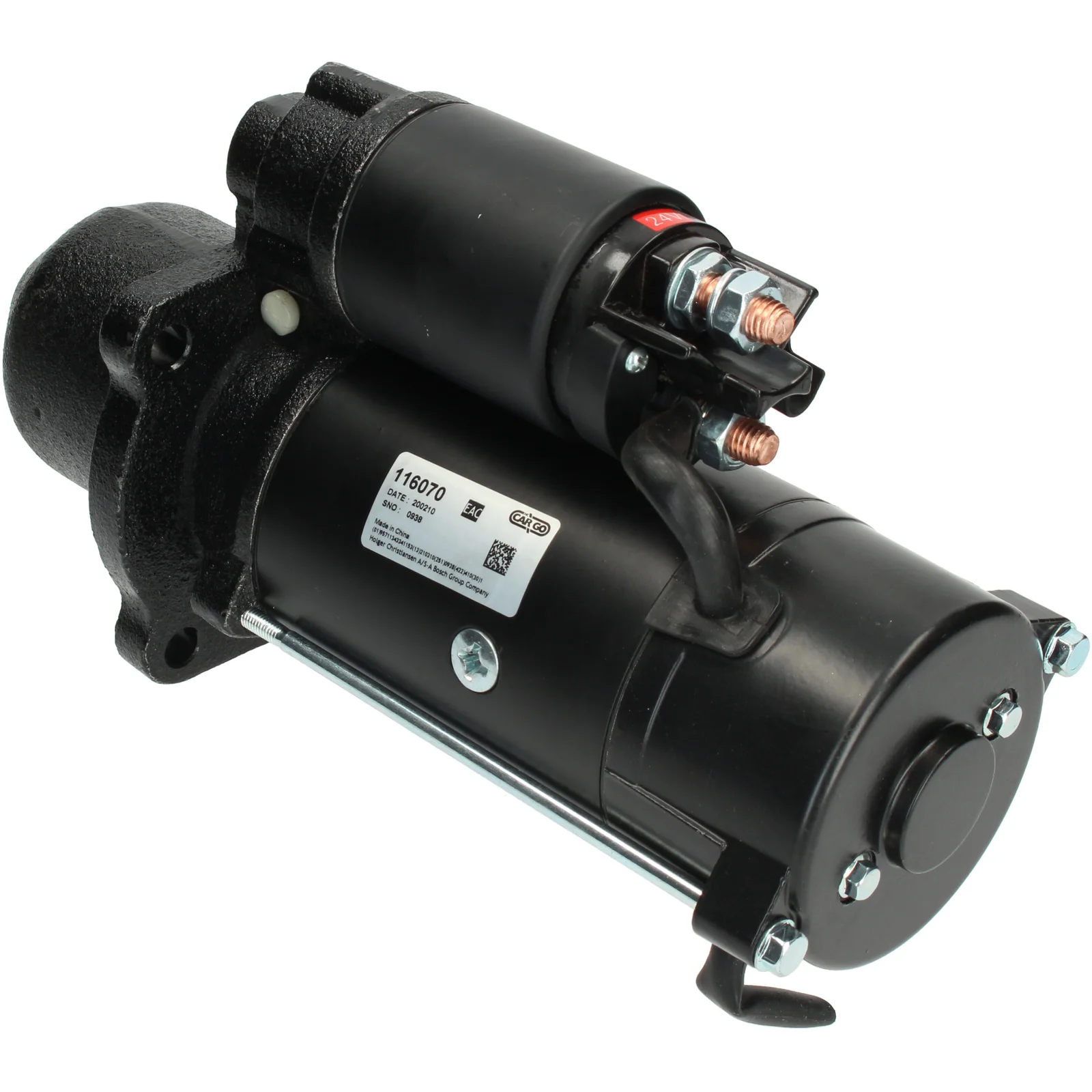

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116070

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 11, Rotation: CW

Description

Voltage: 24
kW: 4.0
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / rear: 226.00
Distance / front: 94.50
Number / teeth: 11
B+: M10
Position / B+: 60
Position / 50: 17
Terminal 50: Plug
Gear type: GR
Distance 2: 127.00
Distance 3: 90.00
Distance mm: 90.00
Rotation: CW
Total length mm: 320.50
Number / mounting holes: 3 (0)

Files

  • OEM
    AZF4327, azf4588, F032116070, V836664354, V836674649, V836874005, 11.131.335, 11.132.189, 836664354, 836674649, 836874005

  • Normalised article numbler
    azf4327, azf4588, f032116070, is1344, lrs04255, ms214, ms611, v836664354, v836674649, v836874005, 455417, 11131335, 11132189, 836664354, 836674649, 836874005
  • Description
    Voltage: 24
    kW: 4.0
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / rear: 226.00
    Distance / front: 94.50
    Number / teeth: 11
    B+: M10
    Position / B+: 60
    Position / 50: 17
    Terminal 50: Plug
    Gear type: GR
    Distance 2: 127.00
    Distance 3: 90.00
    Distance mm: 90.00
    Rotation: CW
    Total length mm: 320.50
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZF4327, azf4588, F032116070, V836664354, V836674649, V836874005, 11.131.335, 11.132.189, 836664354, 836674649, 836874005

    • Normalised article numbler
      azf4327, azf4588, f032116070, is1344, lrs04255, ms214, ms611, v836664354, v836674649, v836874005, 455417, 11131335, 11132189, 836664354, 836674649, 836874005
