HC-Cargo Starter motor

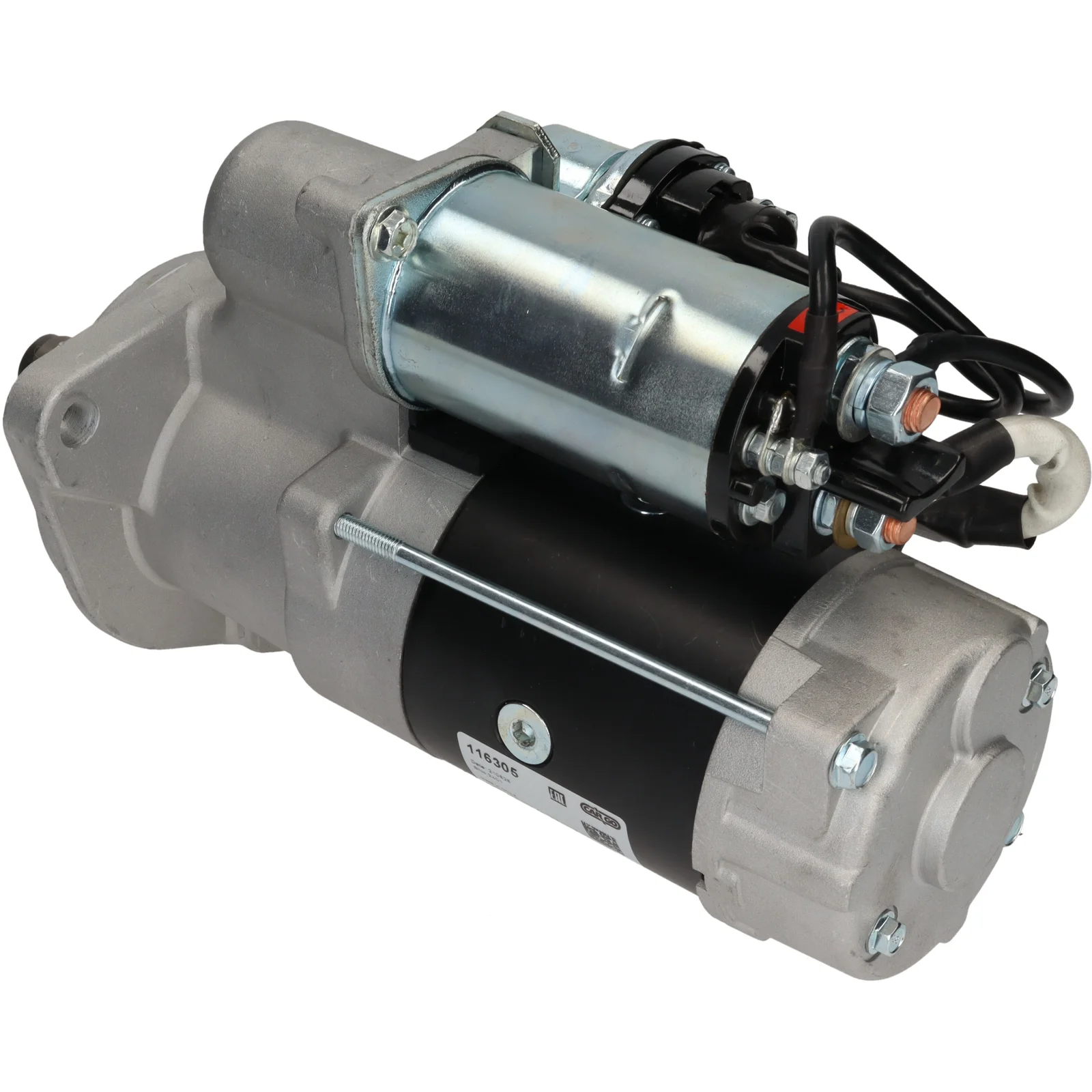

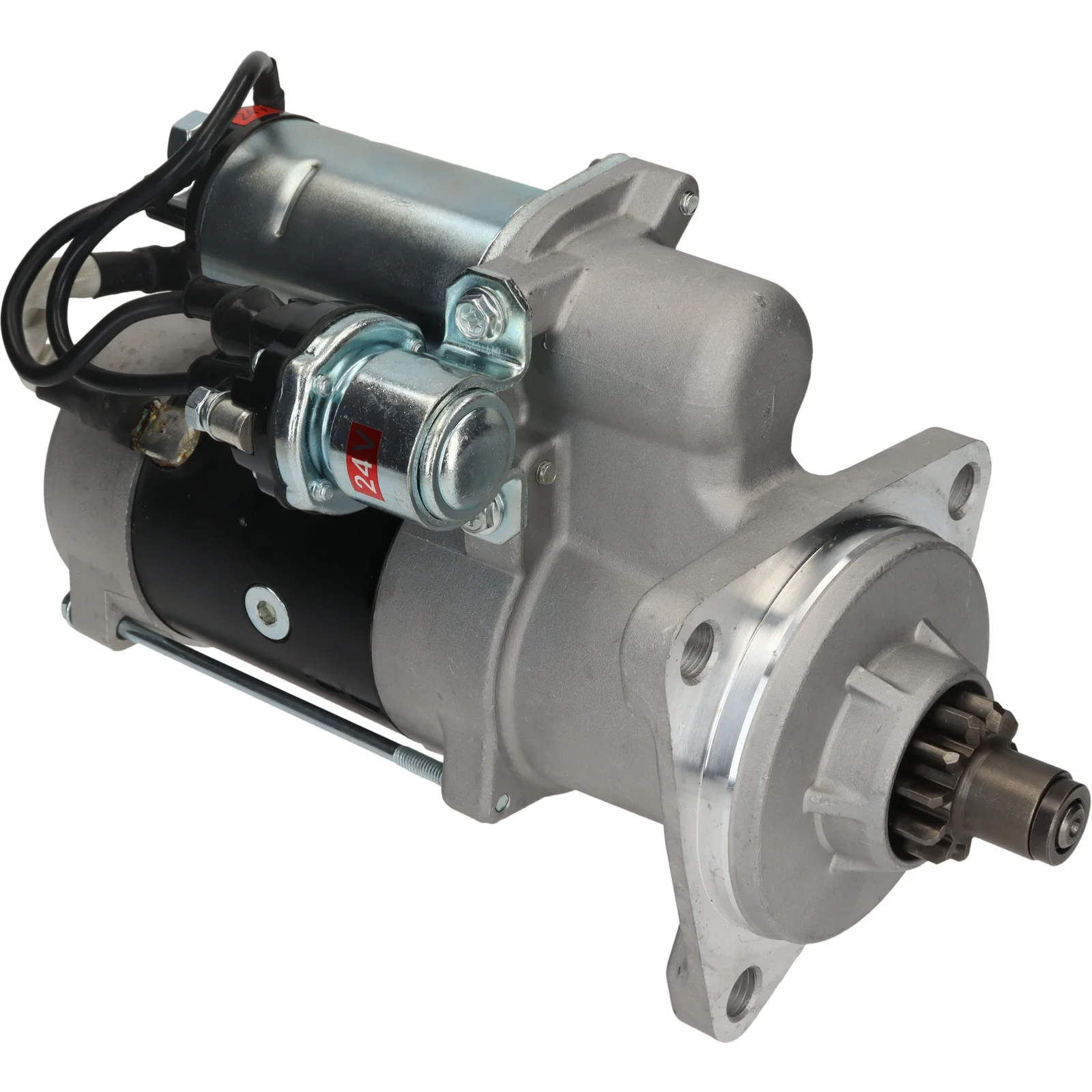

HC-Cargo Starter motor
Article no.: F032116305

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.5, No./teeth: 11, Rotation: CW

Description

Voltage: 24
kW: 4.5
Mounting flange: 105.00
Drive distance: 41.50
Mounting hole 3 mm: 13.00
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance / back: 240.00
Distance / front: 67.00
Number / teeth: 11
B+: M10
Position / B+: 60
Position / 50: 15
Terminal 50: M6
Gear type: GR
Distance 2: 111.00
Distance 3: 111.00
Distance in millimeters: 135.00
Rotation: CW
Total length in millimeters: 307.00
Number / mounting holes: 3 (0)

Files

  • OEM
    F032116305, 65.26201-7076, 600516-00003, 6526201-7076, 8200475, 8200734, 8200777, 30051600003, 30051600041, 30051600041A

  • Normalised article numbler
    cst46126, drs0632, drs0632n, f032116305, s1097delco, s1097s, s9277, 19982, 8200475, 8200734, 8200777, 231004113, 30051600003, 30051600041, 30051600041a, 60051600003, 65262017076
  • Description
    Voltage: 24
    kW: 4.5
    Mounting flange: 105.00
    Drive distance: 41.50
    Mounting hole 3 mm: 13.00
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance / back: 240.00
    Distance / front: 67.00
    Number / teeth: 11
    B+: M10
    Position / B+: 60
    Position / 50: 15
    Terminal 50: M6
    Gear type: GR
    Distance 2: 111.00
    Distance 3: 111.00
    Distance in millimeters: 135.00
    Rotation: CW
    Total length in millimeters: 307.00
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116305, 65.26201-7076, 600516-00003, 6526201-7076, 8200475, 8200734, 8200777, 30051600003, 30051600041, 30051600041A

    • Normalised article numbler
      cst46126, drs0632, drs0632n, f032116305, s1097delco, s1097s, s9277, 19982, 8200475, 8200734, 8200777, 231004113, 30051600003, 30051600041, 30051600041a, 60051600003, 65262017076
