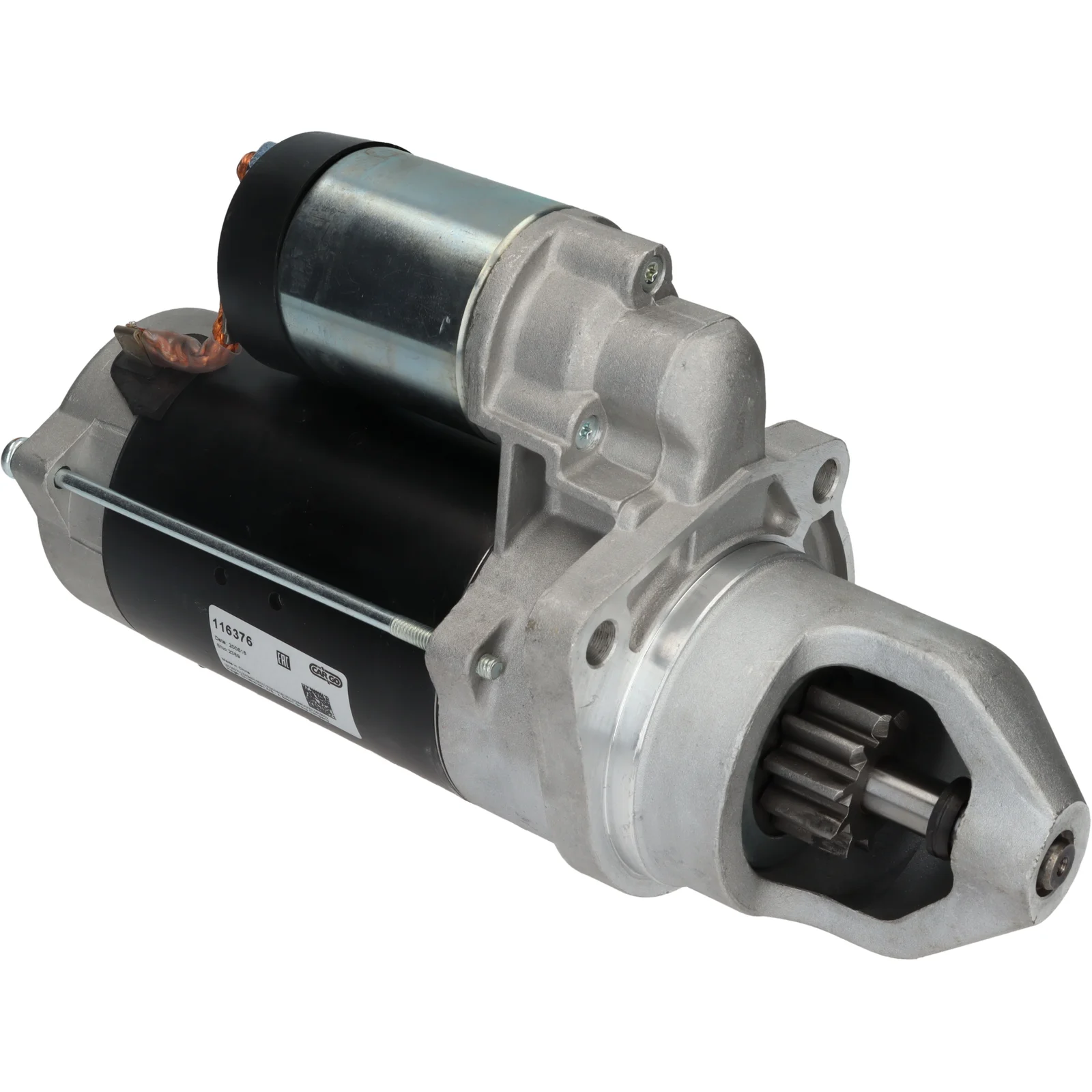

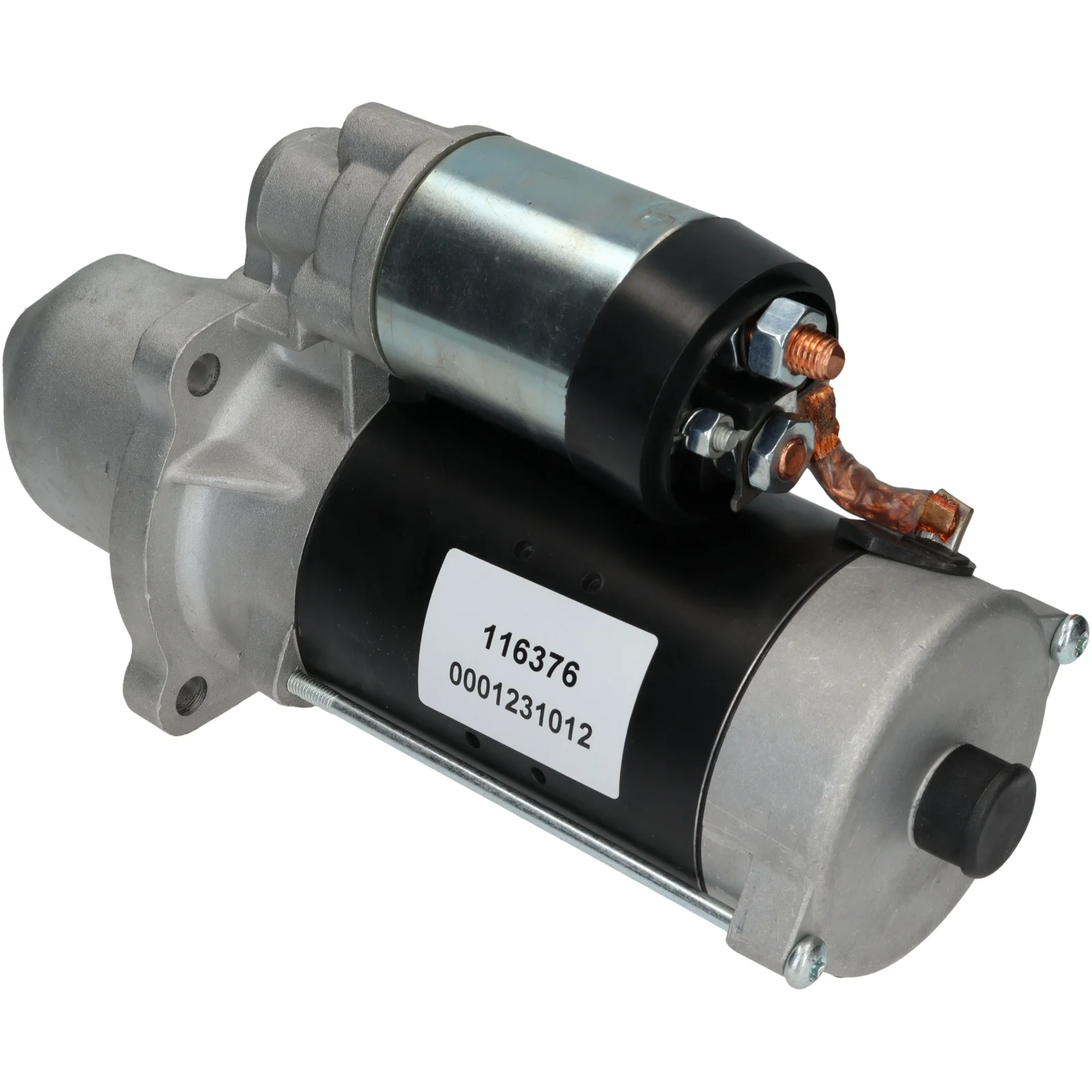

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116376

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 10, Rotation: CW

Description

Voltage: 24
kW: 4.0
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 219.00
Distance / front: 96.00
Number / teeth: 10
B+: M10
Position / B+: 60
Position / 50: 45
Terminal 50: M6
Gear type: GR
Distance 2: 127.00
Distance 3: 90.00
Distance mm: 90.00
Rotation: CW
Total length mm: 315.00
Number / mounting holes: 3 (0)

Files

  • OEM
    F032116376, 0001231012, 1340895, 19084036

  • Normalised article numbler
    cst10717, drt1520, f032116376, s0235, s0674s, 10388, 30964n, 105687, 220725, 220725a, 0001231012, 1340895, 11021520, 19084036, 0986021520
  • Description
    Voltage: 24
    kW: 4.0
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 219.00
    Distance / front: 96.00
    Number / teeth: 10
    B+: M10
    Position / B+: 60
    Position / 50: 45
    Terminal 50: M6
    Gear type: GR
    Distance 2: 127.00
    Distance 3: 90.00
    Distance mm: 90.00
    Rotation: CW
    Total length mm: 315.00
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116376, 0001231012, 1340895, 19084036

    • Normalised article numbler
      cst10717, drt1520, f032116376, s0235, s0674s, 10388, 30964n, 105687, 220725, 220725a, 0001231012, 1340895, 11021520, 19084036, 0986021520
