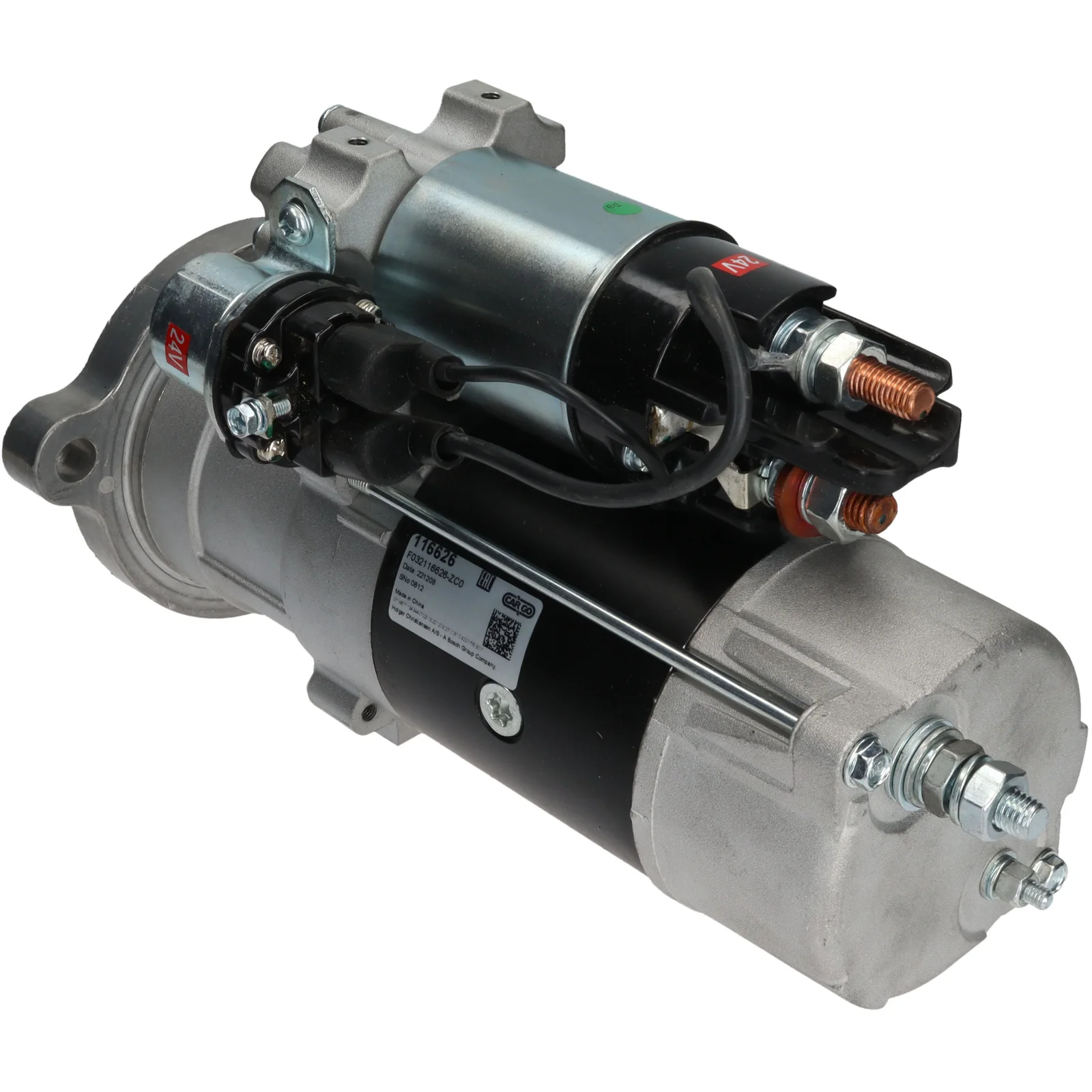

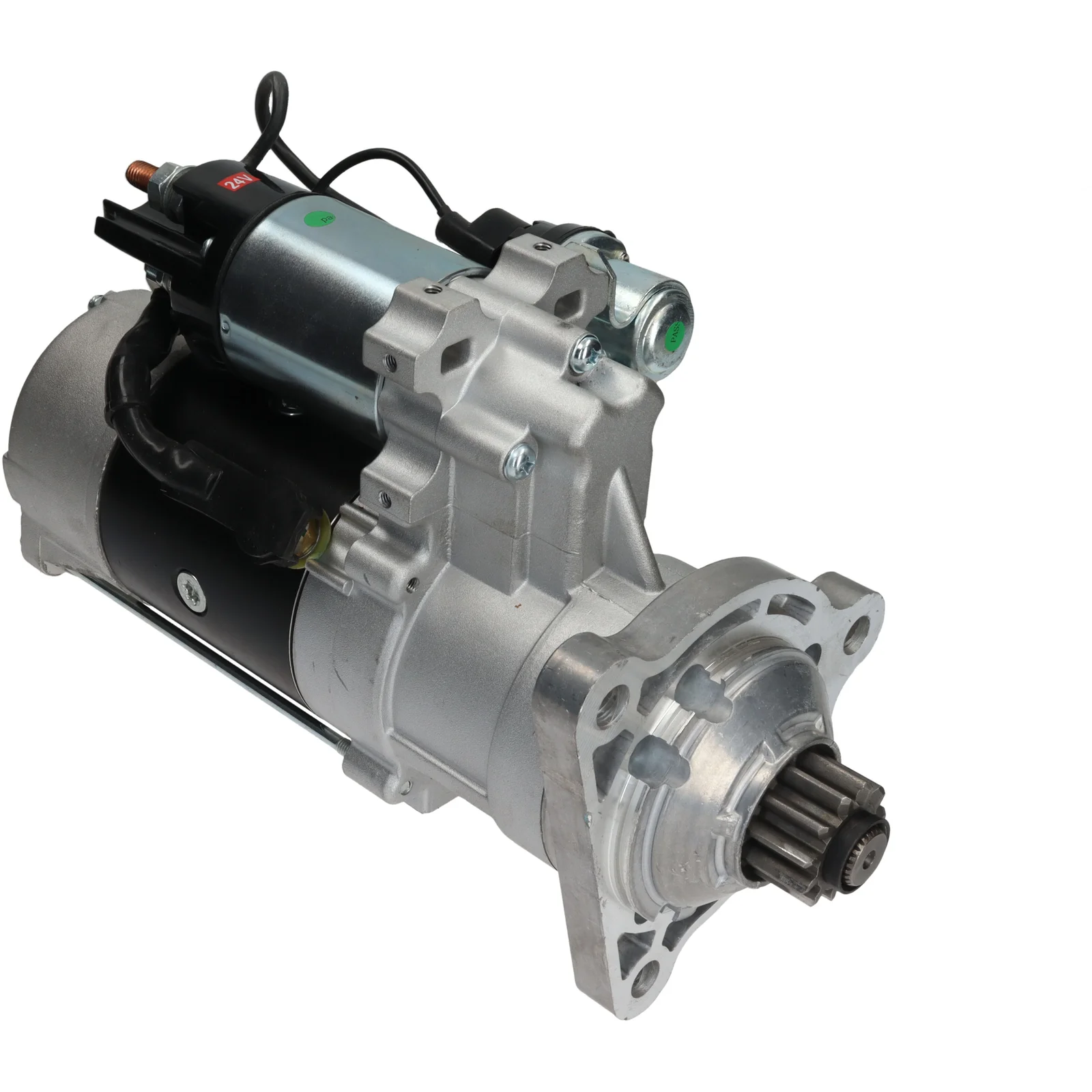

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116626

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 7.0, No./teeth: 11, Rotation: CW

Description

Voltage: 24
kW: 7.0
Mounting flange: 92.00
Drive distance: 48.00
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 330.00
Distance / front: 55.50
Number / teeth: 11
B+: M10
Position / B+: 60
Thread length mm: 21.00
Terminal 50: M5
Gear type: GR
Distance 2: 126.50
Distance 3: 126.50
Distance mm: 126.50
Rotation: CW
B-: M10
Total length mm: 385.50
Number / mounting holes: 3 (0)

Files

  • OEM
    F032116626, 65.26201-7058, 65.26201-7067, 65.26201-7067A, 65.26201-7074, 65.26201-7074A, 65.26201-7074C, 65.26201-7074D, 300516-00075, 300516-00075A, 300516-00075B, 500902, 6526201-7058, 19080029, 65262017074

  • Normalised article numbler
    cst46602, drs0305, drs0306, drs0306n, f032116626, s1094delco, 254693, 500902, 19080029, 281001113, 30051600075, 30051600075a, 30051600075b, 65262017058, 65262017067, 65262017067a, 65262017074, 65262017074a, 65262017074c, 65262017074d
  • Description
    Voltage: 24
    kW: 7.0
    Mounting flange: 92.00
    Drive distance: 48.00
    Mounting hole 3 mm: 13.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 330.00
    Distance / front: 55.50
    Number / teeth: 11
    B+: M10
    Position / B+: 60
    Thread length mm: 21.00
    Terminal 50: M5
    Gear type: GR
    Distance 2: 126.50
    Distance 3: 126.50
    Distance mm: 126.50
    Rotation: CW
    B-: M10
    Total length mm: 385.50
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116626, 65.26201-7058, 65.26201-7067, 65.26201-7067A, 65.26201-7074, 65.26201-7074A, 65.26201-7074C, 65.26201-7074D, 300516-00075, 300516-00075A, 300516-00075B, 500902, 6526201-7058, 19080029, 65262017074

    • Normalised article numbler
      cst46602, drs0305, drs0306, drs0306n, f032116626, s1094delco, 254693, 500902, 19080029, 281001113, 30051600075, 30051600075a, 30051600075b, 65262017058, 65262017067, 65262017067a, 65262017074, 65262017074a, 65262017074c, 65262017074d
