HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116711

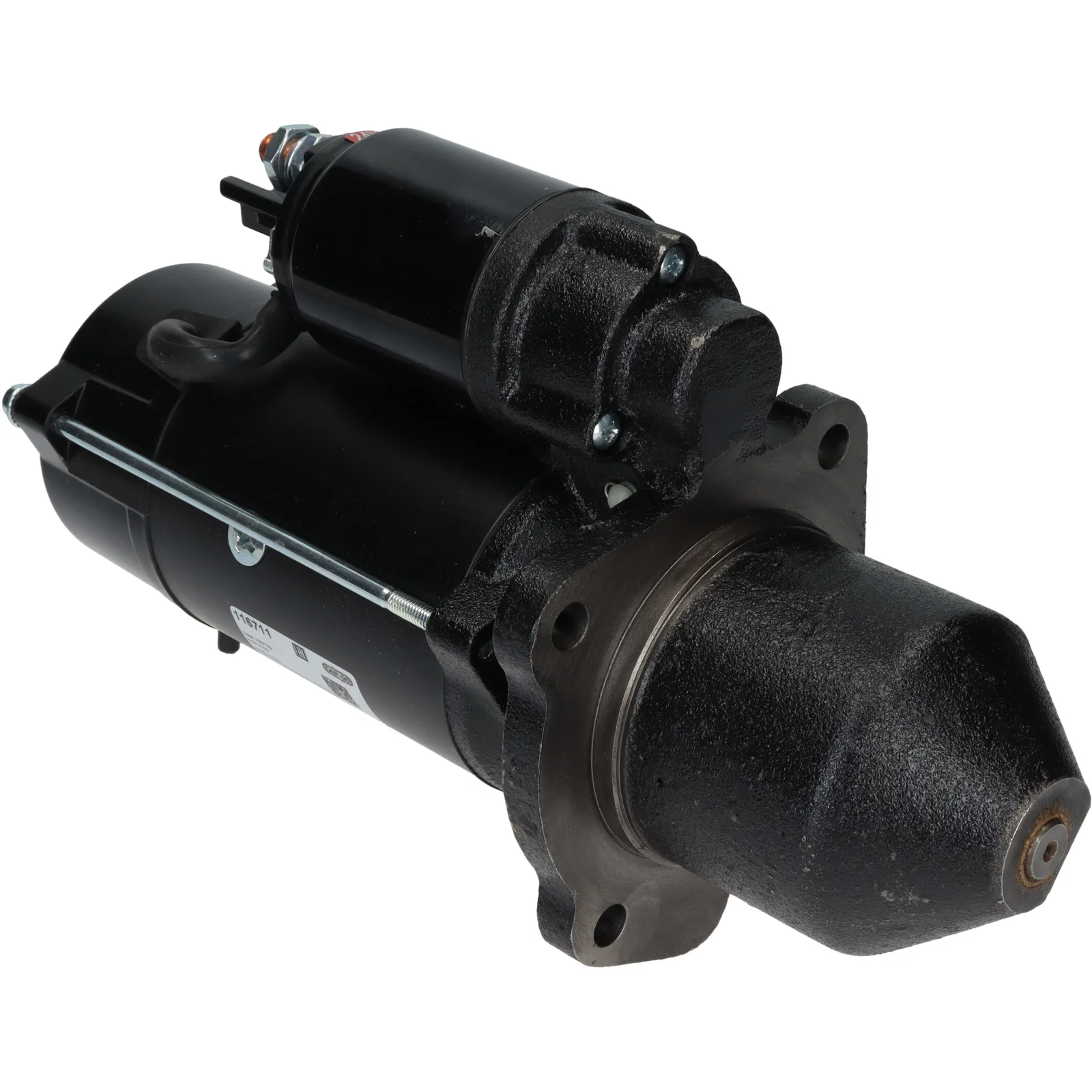

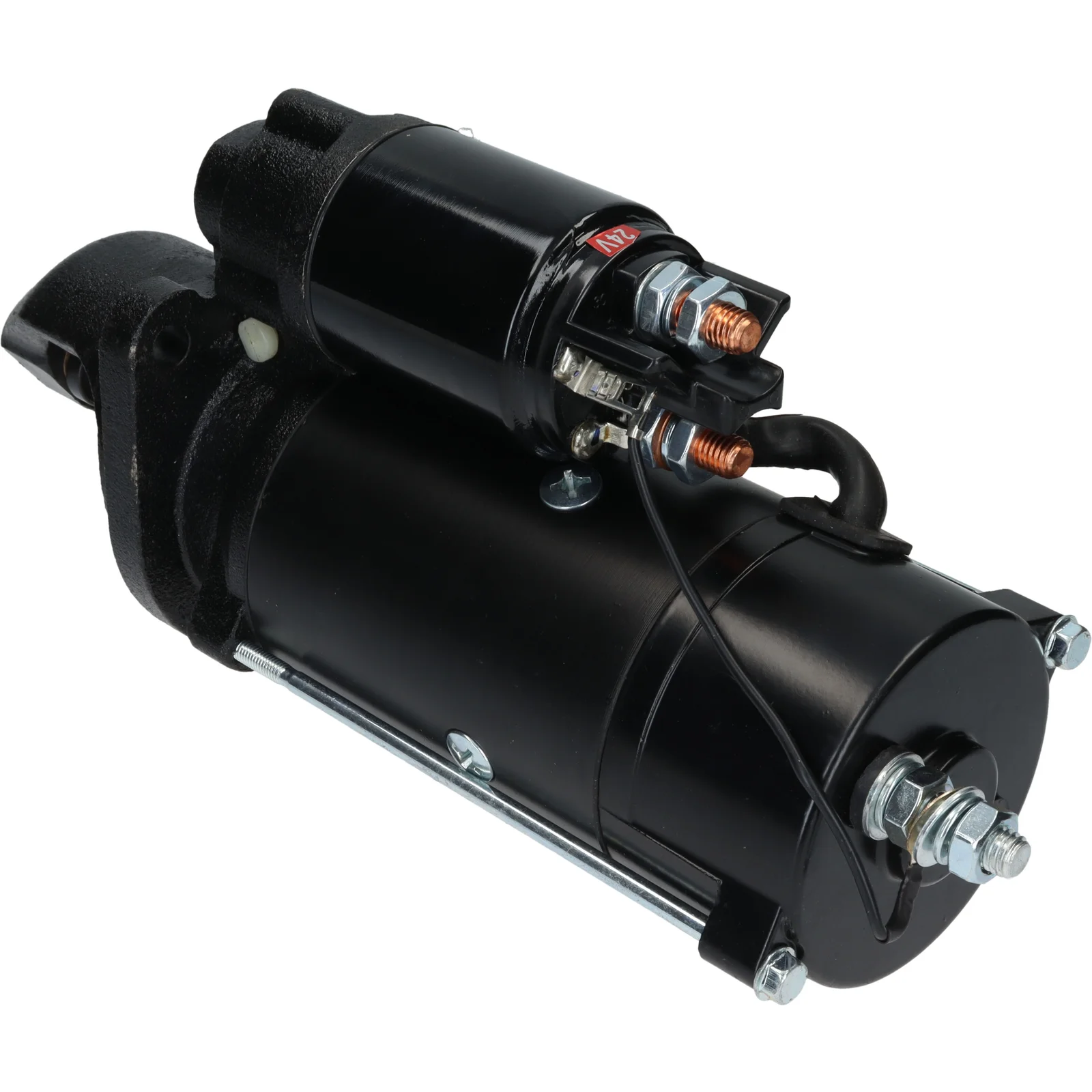

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 4.0, No./teeth: 10, Rotation: CW

Description

Voltage: 24
kW: 4.0
Insulated return: Yes
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / rear: 255.00
Distance / front: 96.00
Number / teeth: 10
B+: M10-1.25
Position / B+: 60
Position / 50: 18
Terminal 50: M5
Gear type: GR
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 127.00
Rotation: CW
Total length mm: 351.00
Number / mounting holes: 3 (0)

Files

  • OEM
    AZF4360, AZF4413, AZF4575, AZF4593, F032116711, OCO71074, RE522334, S5012L, 11.131.266, 11.131.357, 11.132.302, 11.132.561, 502733, 01912354, 011912354

  • Normalised article numbler
    azf4360, azf4413, azf4575, azf4593, cst21612, f032116711, is1117, les0578, lrs02358, ms165, ms627, oco71074, re522334, s5012l, s9365s, 19864, 454030, 502733, 01912354, 11131266, 11131357, 11132302, 11132561, 011912354, 686012104, 701504103
  • Description
    Voltage: 24
    kW: 4.0
    Insulated return: Yes
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / rear: 255.00
    Distance / front: 96.00
    Number / teeth: 10
    B+: M10-1.25
    Position / B+: 60
    Position / 50: 18
    Terminal 50: M5
    Gear type: GR
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 127.00
    Rotation: CW
    Total length mm: 351.00
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZF4360, AZF4413, AZF4575, AZF4593, F032116711, OCO71074, RE522334, S5012L, 11.131.266, 11.131.357, 11.132.302, 11.132.561, 502733, 01912354, 011912354

    • Normalised article numbler
      azf4360, azf4413, azf4575, azf4593, cst21612, f032116711, is1117, les0578, lrs02358, ms165, ms627, oco71074, re522334, s5012l, s9365s, 19864, 454030, 502733, 01912354, 11131266, 11131357, 11132302, 11132561, 011912354, 686012104, 701504103
