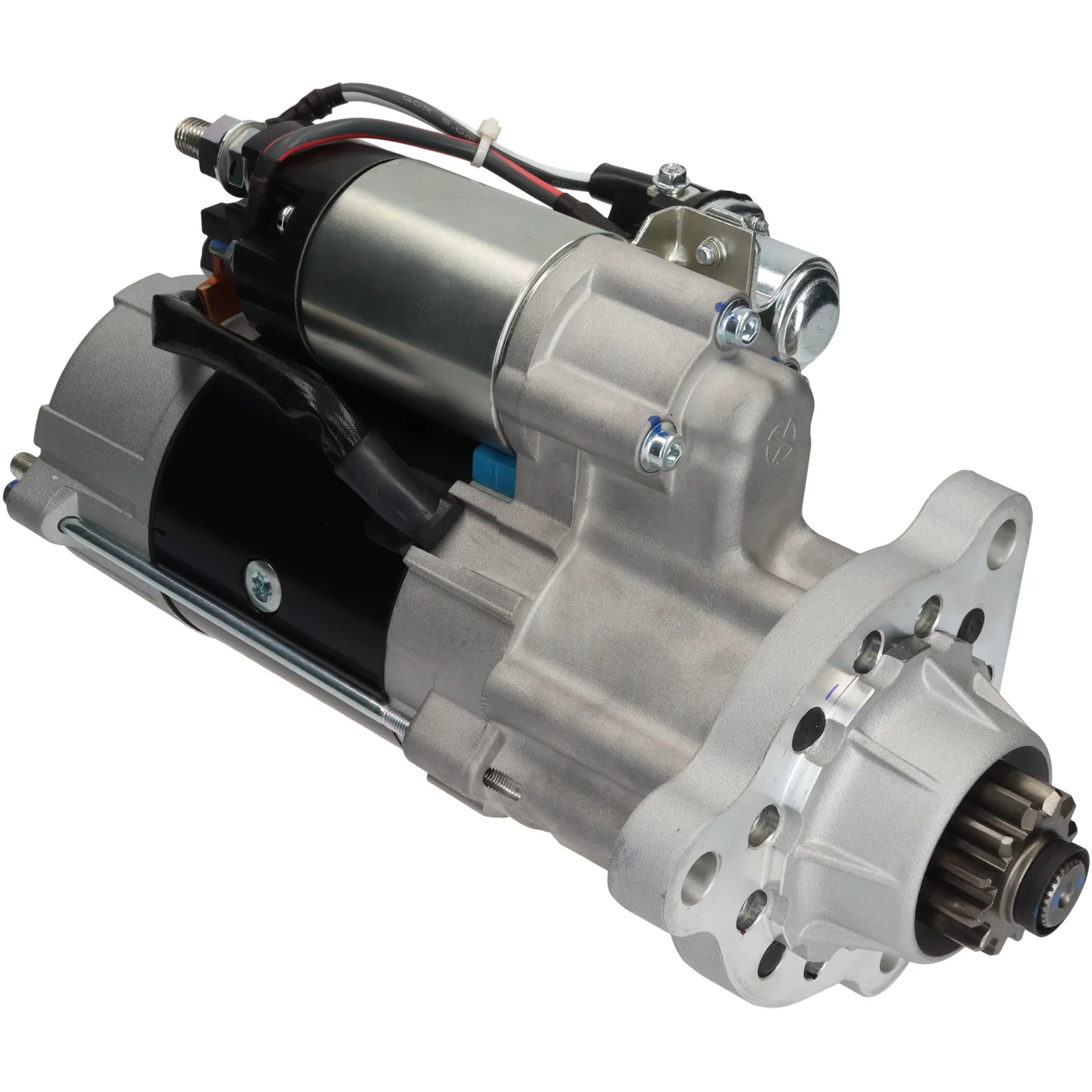

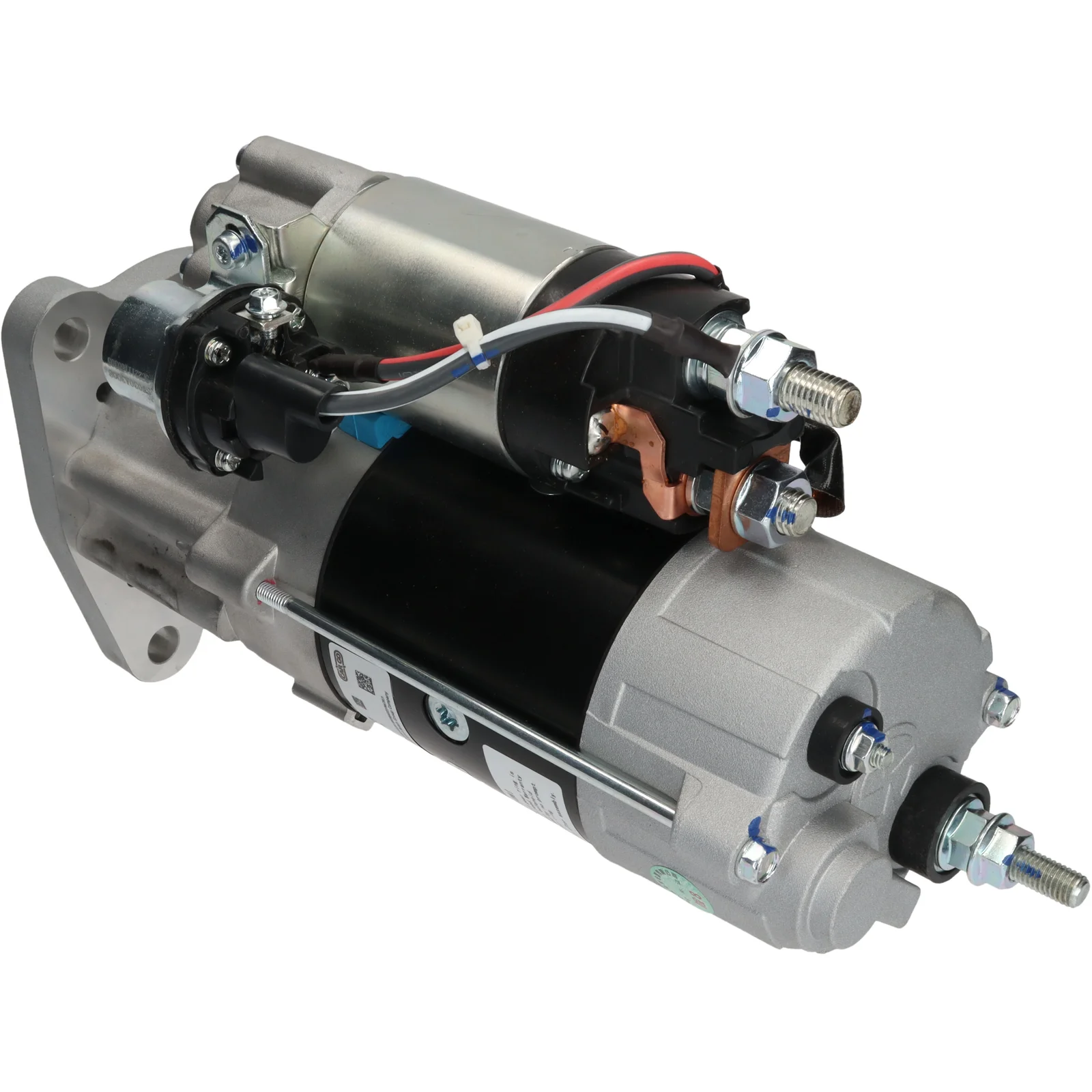

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032116783

HC-Cargo Starter motor

Technical info:

Voltage: 24, kW: 9.0, No./teeth: 12, Rotation: CW

Description

Voltage: 24
kW: 9.0
Mounting flange: 92.00
Drive distance: 47.50
Mounting hole 3 mm: 13.50
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 340.00
Distance / front: 54.00
Number / teeth: 12
B+: M12
Position / B+: 60
Terminal 50: M5
Gear type: GR
Distance 2: 126.50
Distance 3: 126.50
Distance mm: 126.50
Rotation: CW
Total length mm: 394.00
Number / mounting holes: 3 (0)

Files

  • OEM
    F032116783, 20R4879, 349-9077, 396-4770, 428000-9120, 428000-9121, 428000-9122, 438000-0550, 3499075, 3545671, 8200762

  • Normalised article numbler
    cst60626, dsn2146, f032116783, s1223s, 20r4879, 255702, 3499075, 3499077, 3545671, 3964770, 8200762, 641547103, 4280009120, 4280009121, 4280009122, 4380000550
  • Description
    Voltage: 24
    kW: 9.0
    Mounting flange: 92.00
    Drive distance: 47.50
    Mounting hole 3 mm: 13.50
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 340.00
    Distance / front: 54.00
    Number / teeth: 12
    B+: M12
    Position / B+: 60
    Terminal 50: M5
    Gear type: GR
    Distance 2: 126.50
    Distance 3: 126.50
    Distance mm: 126.50
    Rotation: CW
    Total length mm: 394.00
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032116783, 20R4879, 349-9077, 396-4770, 428000-9120, 428000-9121, 428000-9122, 438000-0550, 3499075, 3545671, 8200762

    • Normalised article numbler
      cst60626, dsn2146, f032116783, s1223s, 20r4879, 255702, 3499075, 3499077, 3545671, 3964770, 8200762, 641547103, 4280009120, 4280009121, 4280009122, 4380000550
