Article no.: F032230309

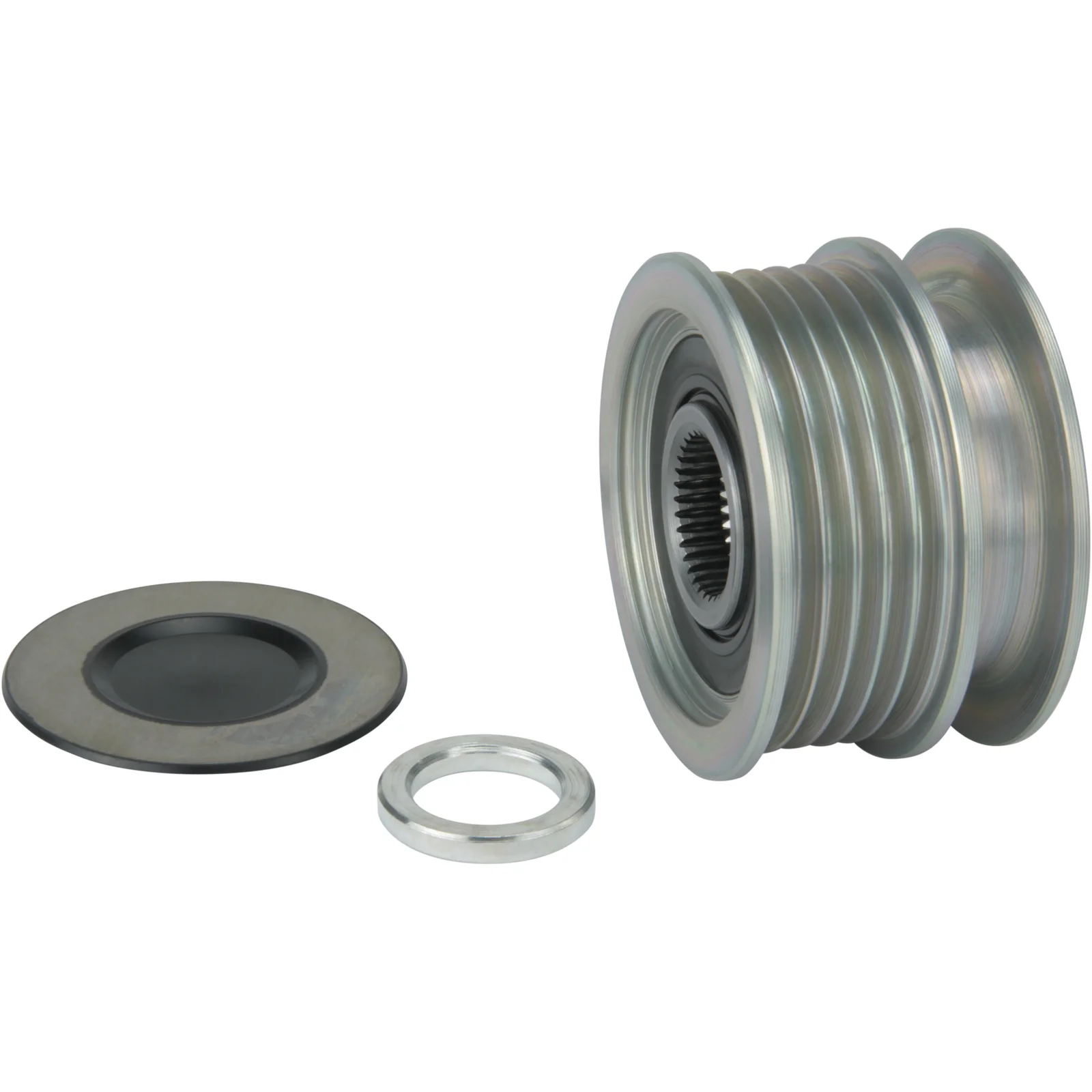

Pulley

Technical info:

Rotation: CW, OD mm: 55.90, Width 1 mm: 37.20, Bore diameter: 17.00

Description

Rotation: CW
OD mm: 55.90
Width 1 mm: 37.20
Bore diameter: 17.00
Thread size: M16-1.50
Depth mm: 11.10
Distance/back: 1.00
Pulley type: SP/FW
Grooves: 5
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 18.00
Pulley: N/A
Remarks: Pulley tool: HC-CARGO 210843.
Source: N/A

Files

  • OEM
    a660c300ex, f-230147, F-230147.01, F-230147.02, F-230147.03, F-230147.04, F-230147.05, F-230147.1, F-230147.2, f-230147.3, f-550213.01, F-550213.03, F-550213.04, f-550213.07, f-550213.10, F00M147721, F00M147806, F00M147976, f00m991039, f00m991217, F00M991326, F00M991375, F032230309, 85-42-10, 85-46-48, 5385, 5468, 0138620, 335481, 353161, 588026, 588035, 038903119q, 535001810, 535008910, 535011610, 5350018000, 5350089000, 8200113636

  • Normalised article numbler
    a660c300ex, afp0014, afp0014ina, afp0014v, afp0056, afp0056ina, afp0056v, afp0115s, ap3004, ec4085, f00m147721, f00m147806, f00m147976, f00m991039, f00m991217, f00m991326, f00m991375, f032230309, f230147, f23014701, f23014702, f23014703, f23014704, f23014705, f2301471, f2301472, f2301473, f55021301, f55021303, f55021304, f55021307, f55021310, 5385, 5468, 0138620, 335481, 353161, 588026, 588035, 854210, 854648, 24832773, 038903119q, 535001810, 535008910, 535011610, 5350018000, 5350089000, 8200113636
  • Description
    Rotation: CW
    OD mm: 55.90
    Width 1 mm: 37.20
    Bore diameter: 17.00
    Thread size: M16-1.50
    Depth mm: 11.10
    Distance/back: 1.00
    Pulley type: SP/FW
    Grooves: 5
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 18.00
    Pulley: N/A
    Remarks: Pulley tool: HC-CARGO 210843.
    Source: N/A

    Files

  • Suitable for these vehicles

    • OEM
      a660c300ex, f-230147, F-230147.01, F-230147.02, F-230147.03, F-230147.04, F-230147.05, F-230147.1, F-230147.2, f-230147.3, f-550213.01, F-550213.03, F-550213.04, f-550213.07, f-550213.10, F00M147721, F00M147806, F00M147976, f00m991039, f00m991217, F00M991326, F00M991375, F032230309, 85-42-10, 85-46-48, 5385, 5468, 0138620, 335481, 353161, 588026, 588035, 038903119q, 535001810, 535008910, 535011610, 5350018000, 5350089000, 8200113636

    • Normalised article numbler
      a660c300ex, afp0014, afp0014ina, afp0014v, afp0056, afp0056ina, afp0056v, afp0115s, ap3004, ec4085, f00m147721, f00m147806, f00m147976, f00m991039, f00m991217, f00m991326, f00m991375, f032230309, f230147, f23014701, f23014702, f23014703, f23014704, f23014705, f2301471, f2301472, f2301473, f55021301, f55021303, f55021304, f55021307, f55021310, 5385, 5468, 0138620, 335481, 353161, 588026, 588035, 854210, 854648, 24832773, 038903119q, 535001810, 535008910, 535011610, 5350018000, 5350089000, 8200113636
