Article no.: F032230521

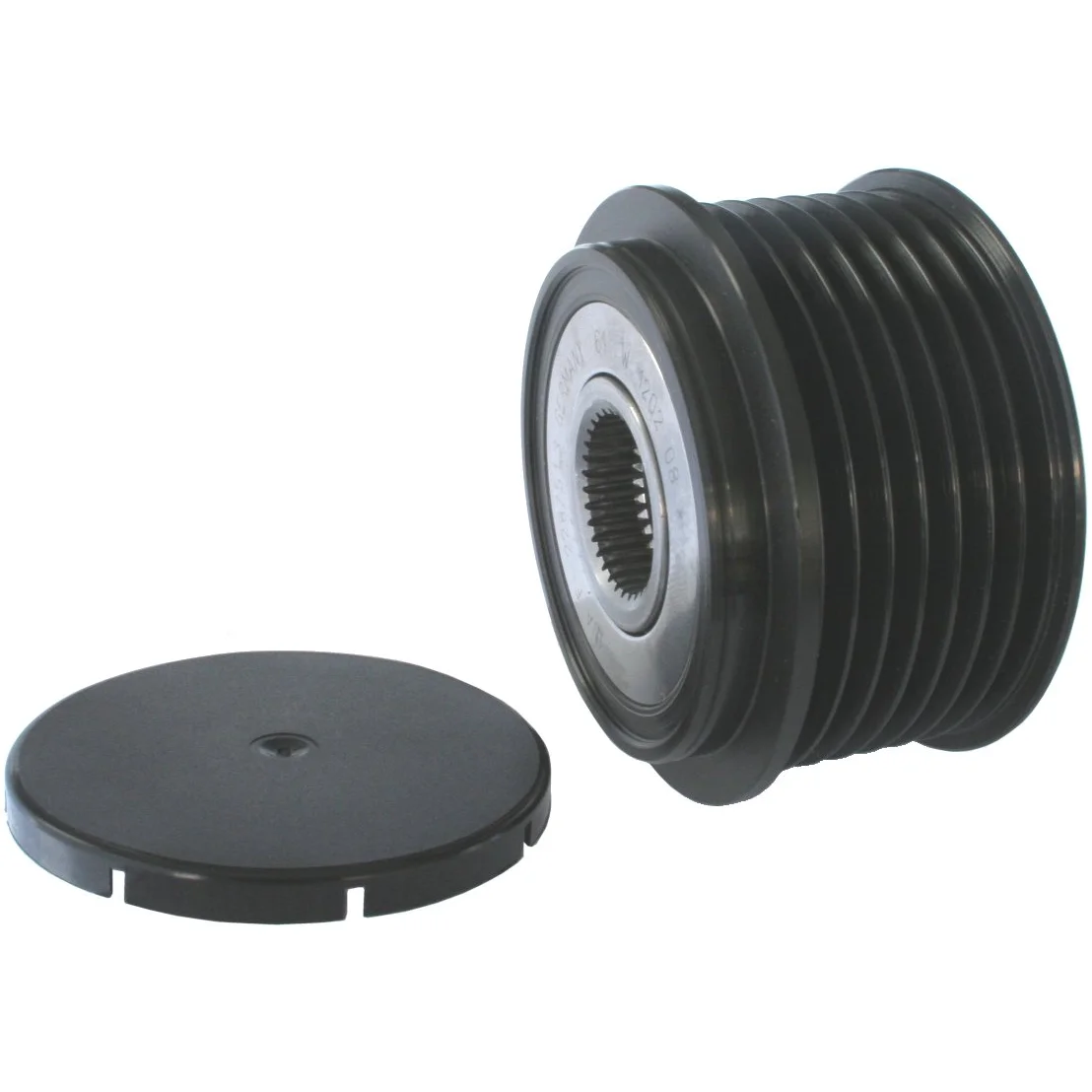

Pulley

Technical info:

Rotation: CW, OD mm: 59.70, Width 1 mm: 40.20, Bore dia.: 17.00

Description

Rotation: CW
OD mm: 59.70
Width 1 mm: 40.20
Bore diameter: 17.00
Thread size: M16-1.50
Depth mm: 11.10
Distance/back: 3.10
Pulley type: SP/FW
Grooves: 7
Belt type: Multi Belt
Free run: with
ID/bearing mm: N/A
Measurement 1. groove: 7.00
Pulley: N/A
Remarks: Pulley tool: HC-CARGO 210843.
Source: N/A

Files

  • OEM
    f-228751, F-228751.02, F-228751.03, f-228751.06, F-228751.07, f-228751.2, f-228751.3, F032230521, gd215541, l170g-25003, 5431, 23150-2w200, 23150-2w20a, 335281, 335311, 535005310, 5350053000

  • Normalised article numbler
    afp2003, afp2003ina, afp2003v, ec4227, f032230521, f228751, f22875102, f22875103, f22875106, f22875107, f2287512, f2287513, gd215541, l170g25003, 5431, 231502w200, 231502w20a, 335281, 335311, 535005310, 5350053000
  • Description
    Rotation: CW
    OD mm: 59.70
    Width 1 mm: 40.20
    Bore diameter: 17.00
    Thread size: M16-1.50
    Depth mm: 11.10
    Distance/back: 3.10
    Pulley type: SP/FW
    Grooves: 7
    Belt type: Multi Belt
    Free run: with
    ID/bearing mm: N/A
    Measurement 1. groove: 7.00
    Pulley: N/A
    Remarks: Pulley tool: HC-CARGO 210843.
    Source: N/A

    Files

  • Suitable for these vehicles

    • OEM
      f-228751, F-228751.02, F-228751.03, f-228751.06, F-228751.07, f-228751.2, f-228751.3, F032230521, gd215541, l170g-25003, 5431, 23150-2w200, 23150-2w20a, 335281, 335311, 535005310, 5350053000

    • Normalised article numbler
      afp2003, afp2003ina, afp2003v, ec4227, f032230521, f228751, f22875102, f22875103, f22875106, f22875107, f2287512, f2287513, gd215541, l170g25003, 5431, 231502w200, 231502w20a, 335281, 335311, 535005310, 5350053000
