Article no.: F032234056

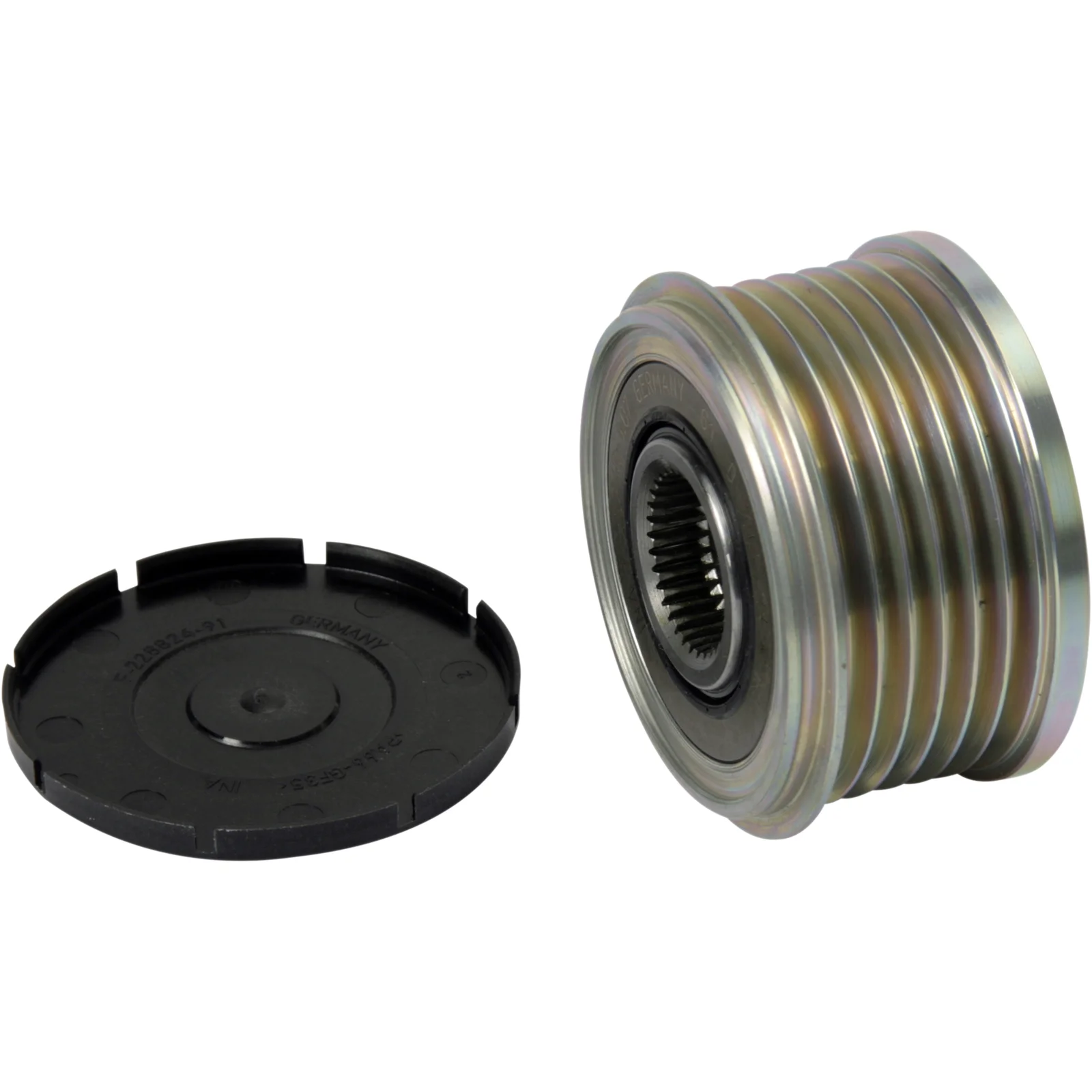

Pulley

Technical info:

OD mm: 54.10, Width 1 mm: 33.60, Bore dia.: 17.00, Thread size: M16-1.50

Description

OD mm: 54.10
Width 1 mm: 33.60
Bore diameter: 17.00
Thread size: M16-1.50
Depth mm: 11.10
Distance/back: 0.70
Pulley type: SP/FW
Grooves: 6
Belt type: Multi Belt
Free run: with
ID/bearing mm: N/A
Measurement 1. groove: 8.00
Pulley: N/A
Remarks: Pulley tool: HC-CARGO 210843.
Source: N/A

Files

  • OEM
    F-232369, F-232369.02, F-232369.03, F-232369.09, F-232369.2, F00M147999, F00M991172, F032234056, 535017910

  • Normalised article numbler
    afp0020, afp0020bosch, afp0020ina, afp0020v, ec40015, f00m147999, f00m991172, f032234056, f232369, f23236902, f23236903, f23236909, f2323692, 535017910
  • Description
    OD mm: 54.10
    Width 1 mm: 33.60
    Bore diameter: 17.00
    Thread size: M16-1.50
    Depth mm: 11.10
    Distance/back: 0.70
    Pulley type: SP/FW
    Grooves: 6
    Belt type: Multi Belt
    Free run: with
    ID/bearing mm: N/A
    Measurement 1. groove: 8.00
    Pulley: N/A
    Remarks: Pulley tool: HC-CARGO 210843.
    Source: N/A

    Files

  • Suitable for these vehicles

    • OEM
      F-232369, F-232369.02, F-232369.03, F-232369.09, F-232369.2, F00M147999, F00M991172, F032234056, 535017910

    • Normalised article numbler
      afp0020, afp0020bosch, afp0020ina, afp0020v, ec40015, f00m147999, f00m991172, f032234056, f232369, f23236902, f23236903, f23236909, f2323692, 535017910
