Article no.: F032234795

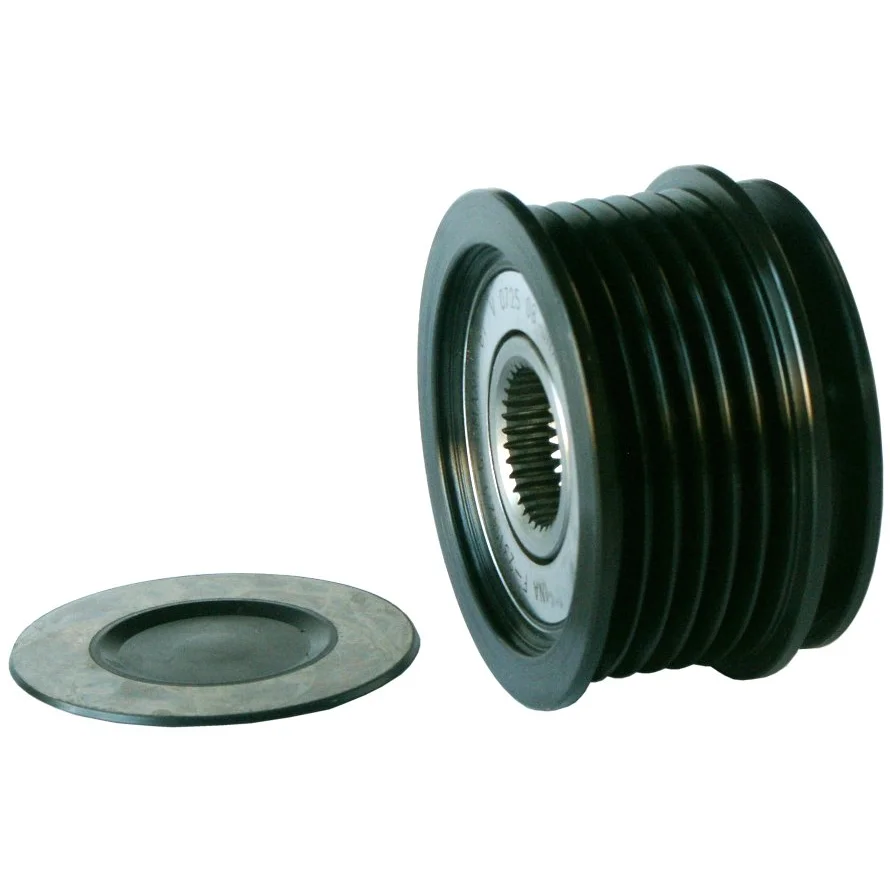

Pulley

Technical info:

Rotation: CW, Rotation/fan: CW, OD mm: 55.90, Width 1 mm: 35.60

Description

Rotation: CW
OD mm: 55.90
Width 1 mm: 35.60
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 11.10
Dist./back: 0.40
Pulley type: SP/FW
Grooves: 6
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 12.80
Pulley: N/A
Rotation/fan: CW
Remarks: Pulley tool: HC-CARGO 210843.

Files

  • OEM
    f-231142, F-231142.01, f-231142.05, F-231142.08, f-231142.1, F-581445, f00m147732, f00m391604, f00m991108, f00m991266, F032234795, 06b903119b, 5448, 335771, 593778, 2549858, 535004110

  • Normalised article numbler
    afp0023, afp0023ina, afp0023v, ec4255, f00m147732, f00m391604, f00m991108, f00m991266, f032234795, f231142, f23114201, f23114205, f23114208, f2311421, f581445, 06b903119b, 5448, 335771, 593778, 2549858, 535004110
  • Description
    Rotation: CW
    OD mm: 55.90
    Width 1 mm: 35.60
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 11.10
    Dist./back: 0.40
    Pulley type: SP/FW
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 12.80
    Pulley: N/A
    Rotation/fan: CW
    Remarks: Pulley tool: HC-CARGO 210843.

    Files

  • Suitable for these vehicles

    • OEM
      f-231142, F-231142.01, f-231142.05, F-231142.08, f-231142.1, F-581445, f00m147732, f00m391604, f00m991108, f00m991266, F032234795, 06b903119b, 5448, 335771, 593778, 2549858, 535004110

    • Normalised article numbler
      afp0023, afp0023ina, afp0023v, ec4255, f00m147732, f00m391604, f00m991108, f00m991266, f032234795, f231142, f23114201, f23114205, f23114208, f2311421, f581445, 06b903119b, 5448, 335771, 593778, 2549858, 535004110
