Article no.: F032234796

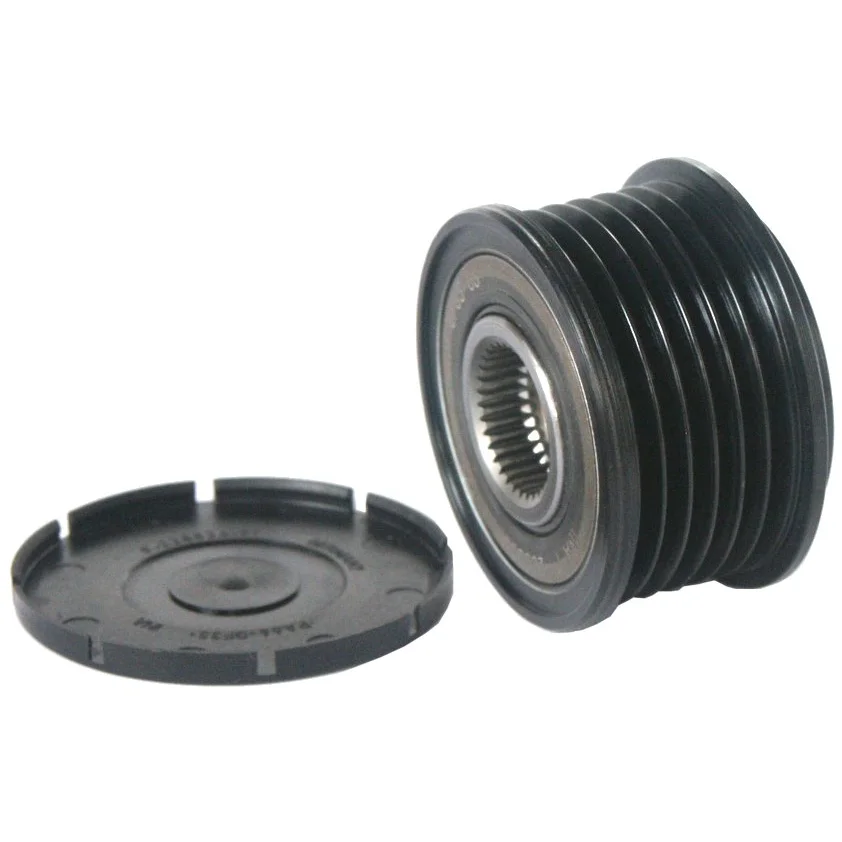

Pulley

Technical info:

Rotation: CW, OD mm: 49.70, Width 1 mm: 35.60, Bore dia.: 17.00

Description

Rotation: CW
OD mm: 49.70
Width 1 mm: 35.60
Bore diameter: 17.00
Thread size: M16-1.50
Depth mm: 11.10
Distance/back: 1.90
Pulley type: SP/FW
Grooves: 6
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 11.00
Pulley: N/A
Remarks: Pulley tool: HC-CARGO 210843.
Source: N/A

Files

  • OEM
    f-235967.1, F-235968, f-235968.01, F-235968.03, F-235968.05, F-235968.06, F-235968.07, f-235968.08, f-235968.09, F-235968.10, F00M349827, f00m991181, f00m991255, F032234796, 5463, 353141, 535008610, 5350086000, 6461500260, 6481550015

  • Normalised article numbler
    afp0045, afp0045ina, afp0045v, ec4273, f00m349827, f00m991181, f00m991255, f032234796, f2359671, f235968, f23596801, f23596803, f23596805, f23596806, f23596807, f23596808, f23596809, f23596810, 5463, 353141, 535008610, 5350086000, 6461500260, 6481550015
  • Description
    Rotation: CW
    OD mm: 49.70
    Width 1 mm: 35.60
    Bore diameter: 17.00
    Thread size: M16-1.50
    Depth mm: 11.10
    Distance/back: 1.90
    Pulley type: SP/FW
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 11.00
    Pulley: N/A
    Remarks: Pulley tool: HC-CARGO 210843.
    Source: N/A

    Files

  • Suitable for these vehicles

    • OEM
      f-235967.1, F-235968, f-235968.01, F-235968.03, F-235968.05, F-235968.06, F-235968.07, f-235968.08, f-235968.09, F-235968.10, F00M349827, f00m991181, f00m991255, F032234796, 5463, 353141, 535008610, 5350086000, 6461500260, 6481550015

    • Normalised article numbler
      afp0045, afp0045ina, afp0045v, ec4273, f00m349827, f00m991181, f00m991255, f032234796, f2359671, f235968, f23596801, f23596803, f23596805, f23596806, f23596807, f23596808, f23596809, f23596810, 5463, 353141, 535008610, 5350086000, 6461500260, 6481550015
