Article no.: F032235508

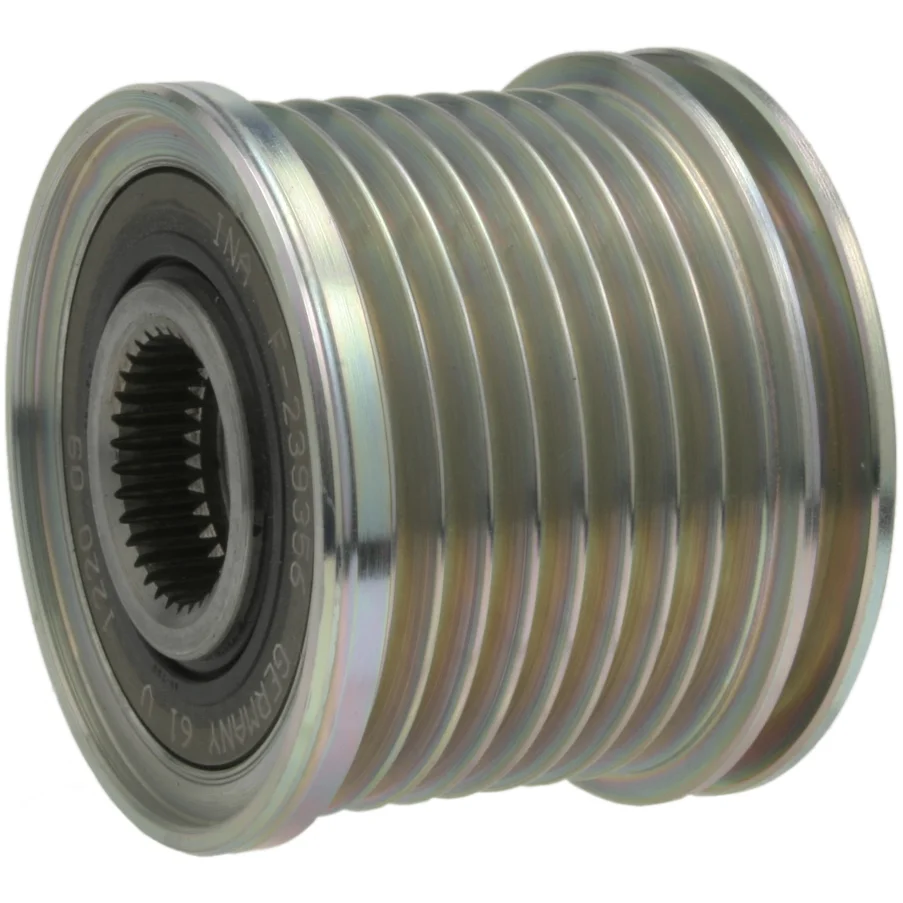

Pulley

Technical info:

Rotation: CW, OD mm: 50.00, Width 1 mm: 43.40, Bore diameter: 17.00

Description

Rotation: CW
OD mm: 50.00
Width 1 mm: 43.40
Bore diameter: 17.00
Thread size: M16-1.50
Depth mm: 11.10
Distance/back: 9.40
Pulley type: SP/FW
Grooves: 8
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 11.00
Pulley: N/A
Source: N/A

Files

  • OEM
    f-239356, f-239356.01, F-239356.02, F-239356.03, F00M349828, f00m391104, F00M391144, F032235508, 5566, 588090, 535010810, 5350108000, 6291500060

  • Normalised article numbler
    afp0049, afp0049ina, afp0049v, f00m349828, f00m391104, f00m391144, f032235508, f239356, f23935601, f23935602, f23935603, 5566, 588090, 535010810, 5350108000, 6291500060
  • Description
    Rotation: CW
    OD mm: 50.00
    Width 1 mm: 43.40
    Bore diameter: 17.00
    Thread size: M16-1.50
    Depth mm: 11.10
    Distance/back: 9.40
    Pulley type: SP/FW
    Grooves: 8
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 11.00
    Pulley: N/A
    Source: N/A

    Files

  • Suitable for these vehicles

    • OEM
      f-239356, f-239356.01, F-239356.02, F-239356.03, F00M349828, f00m391104, F00M391144, F032235508, 5566, 588090, 535010810, 5350108000, 6291500060

    • Normalised article numbler
      afp0049, afp0049ina, afp0049v, f00m349828, f00m391104, f00m391144, f032235508, f239356, f23935601, f23935602, f23935603, 5566, 588090, 535010810, 5350108000, 6291500060
