Article no.: F032235718

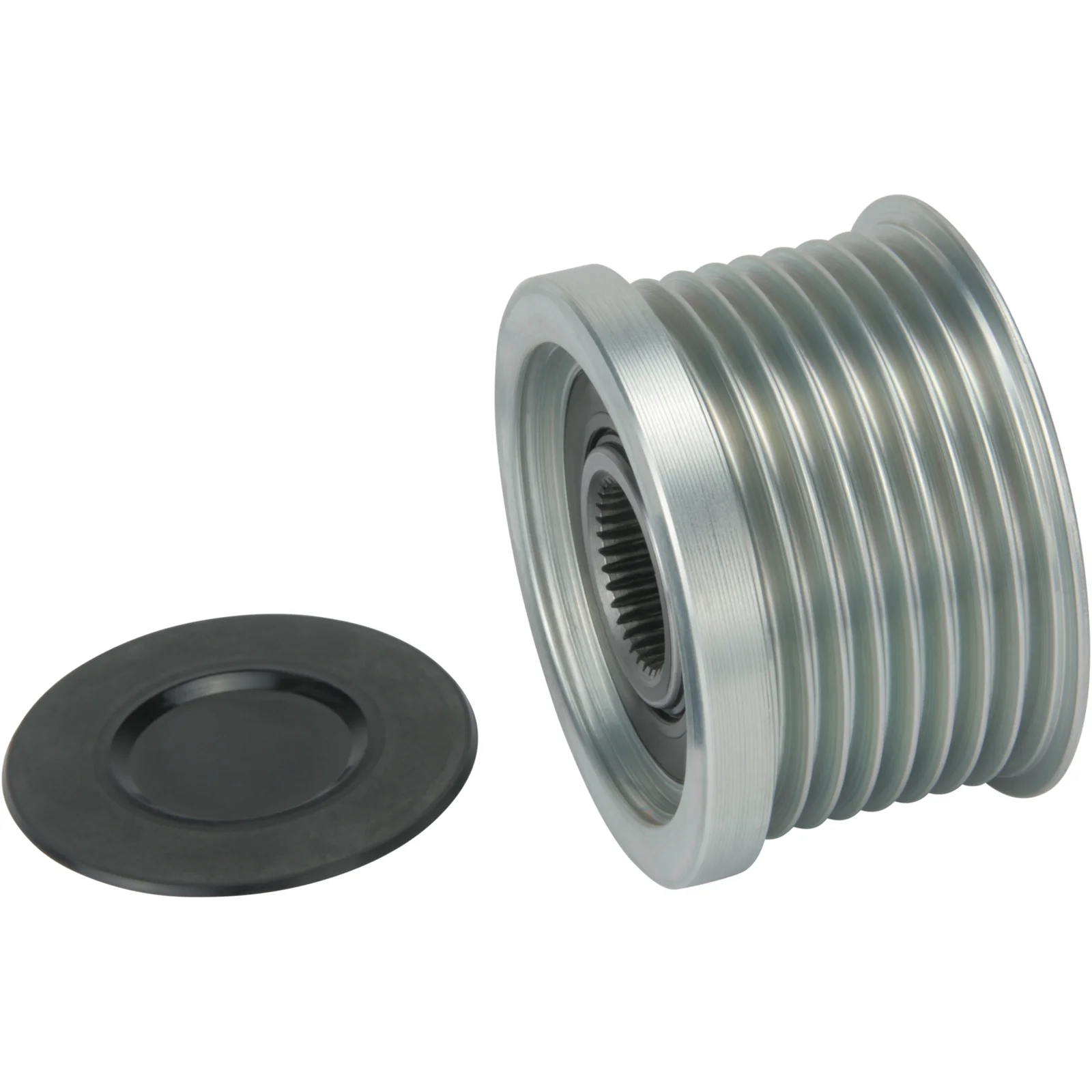

Pulley

Technical info:

Rotation: CW, OD mm: 56.00, Width 1 mm: 38.70, Bore dia.: 17.00

Description

Rotation: CW
OD mm: 56.00
Width 1 mm: 38.70
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 7.60
Dist./back: 2.80
Pulley type: SP/FW
Grooves: 8
Belt type: Multi Belt
Free run: w/
Measurement 1. groove: 4.30

Files

  • OEM
    AL158161, AL161112, AL166835, AL166836, F-233379.01, F-233379.02, F-233379.04, F032235718, 5534, 235718, 535013110, 5350131000

  • Normalised article numbler
    afp0100s, afp9015ina, afp9015v, al158161, al161112, al166835, al166836, f032235718, f23337901, f23337902, f23337904, 5534, 235718, 535013110, 5350131000
  • Description
    Rotation: CW
    OD mm: 56.00
    Width 1 mm: 38.70
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 7.60
    Dist./back: 2.80
    Pulley type: SP/FW
    Grooves: 8
    Belt type: Multi Belt
    Free run: w/
    Measurement 1. groove: 4.30

    Files

  • Suitable for these vehicles

    • OEM
      AL158161, AL161112, AL166835, AL166836, F-233379.01, F-233379.02, F-233379.04, F032235718, 5534, 235718, 535013110, 5350131000

    • Normalised article numbler
      afp0100s, afp9015ina, afp9015v, al158161, al161112, al166835, al166836, f032235718, f23337901, f23337902, f23337904, 5534, 235718, 535013110, 5350131000
