Article no.: F032238068

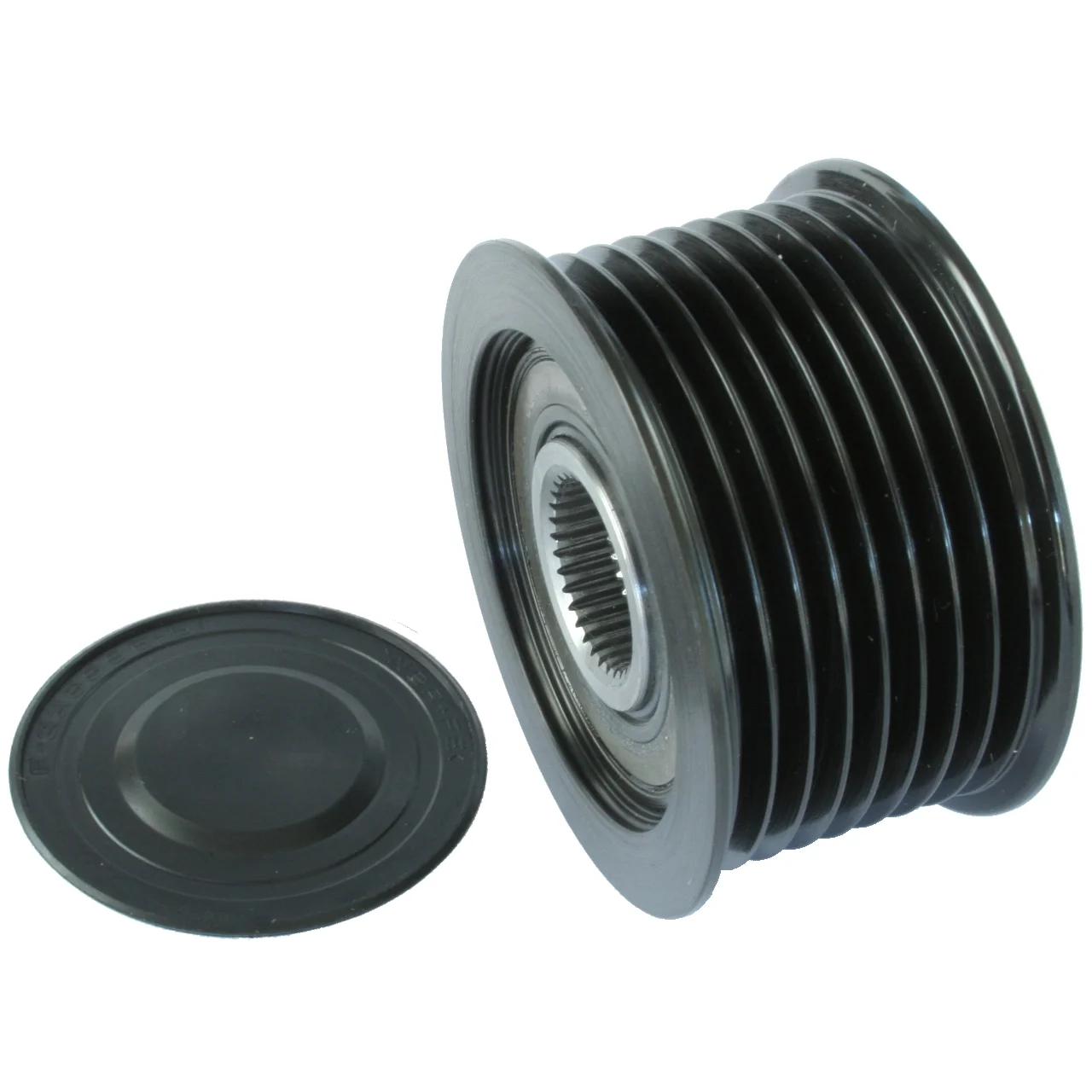

Pulley

Technical info:

Rotation: CW, OD mm: 59.60, Width 1 mm: 39.00, Bore dia.: 17.00

Description

Rotation: CW
OD mm: 59.60
Width 1 mm: 39.00
Bore dia.: 17.00
Thread size: M17-1.50
Depth mm: 17.00
Dist./back: 4.00
Pulley type: SP/FW
Grooves: 8
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 9.10
Pulley: N/A
Remarks: Pulley tool: HC-CARGO 210843.
Source: N/A

Files

  • OEM
    f-236001, f-236001.01, F-236001.02, F032238068, F236001, rf5c-18-330, 5527, 535004910

  • Normalised article numbler
    afp5004, afp5004ina, afp5004v, f032238068, f236001, f23600101, f23600102, rf5c18330, 5527, 535004910
  • Description
    Rotation: CW
    OD mm: 59.60
    Width 1 mm: 39.00
    Bore dia.: 17.00
    Thread size: M17-1.50
    Depth mm: 17.00
    Dist./back: 4.00
    Pulley type: SP/FW
    Grooves: 8
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 9.10
    Pulley: N/A
    Remarks: Pulley tool: HC-CARGO 210843.
    Source: N/A

    Files

  • Suitable for these vehicles

    • OEM
      f-236001, f-236001.01, F-236001.02, F032238068, F236001, rf5c-18-330, 5527, 535004910

    • Normalised article numbler
      afp5004, afp5004ina, afp5004v, f032238068, f236001, f23600101, f23600102, rf5c18330, 5527, 535004910
