Article no.: F032238339

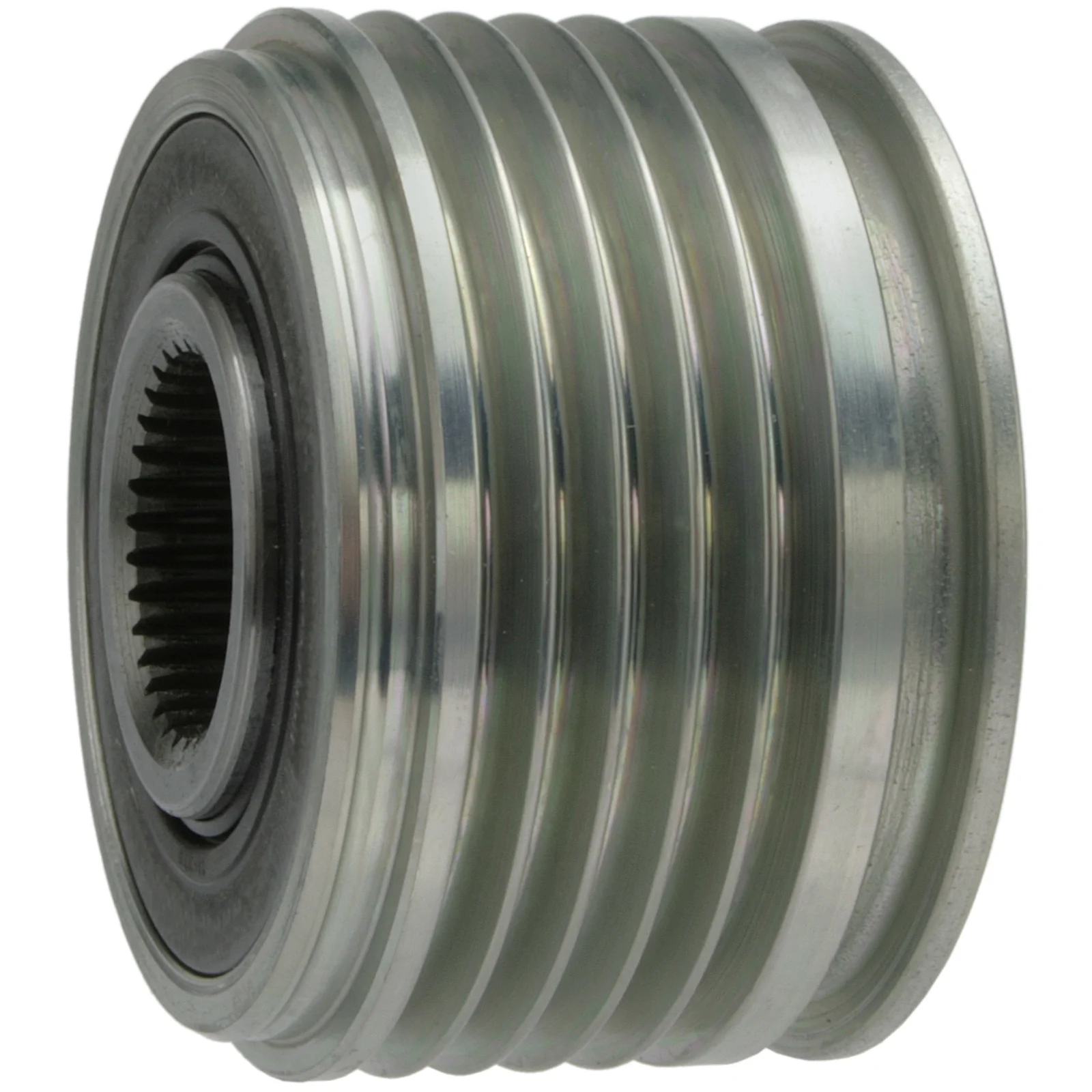

Pulley

Technical info:

Rotation: CW, Rotation/fan: CW, OD mm: 52.00, Width 1 mm: 36.50

Description

Rotation: CW
OD mm: 52.00
Width 1 mm: 36.50
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 14.40
Dist./back: 4.50
Pulley type: SP/FW
Grooves: 5
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 14.90
Pulley: N/A
Rotation/fan: CW
Source: N/A

Files

  • OEM
    f-239973.01, F-239973.02, F-239973.03, f-239973.04, F-239973.05, F032238339, 2.05.0507.0, 2.05.0510.0, 5510, 353661, 593977, 595386, 2601991, 535012910, 5350129000

  • Normalised article numbler
    afp3015, afp3015ina, afp3015luk, f032238339, f23997301, f23997302, f23997303, f23997304, f23997305, 5510, 353661, 593977, 595386, 2601991, 20505070, 20505100, 535012910, 5350129000
  • Description
    Rotation: CW
    OD mm: 52.00
    Width 1 mm: 36.50
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 14.40
    Dist./back: 4.50
    Pulley type: SP/FW
    Grooves: 5
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 14.90
    Pulley: N/A
    Rotation/fan: CW
    Source: N/A

    Files

  • Suitable for these vehicles

    • OEM
      f-239973.01, F-239973.02, F-239973.03, f-239973.04, F-239973.05, F032238339, 2.05.0507.0, 2.05.0510.0, 5510, 353661, 593977, 595386, 2601991, 535012910, 5350129000

    • Normalised article numbler
      afp3015, afp3015ina, afp3015luk, f032238339, f23997301, f23997302, f23997303, f23997304, f23997305, 5510, 353661, 593977, 595386, 2601991, 20505070, 20505100, 535012910, 5350129000
