Article no.: F032330200

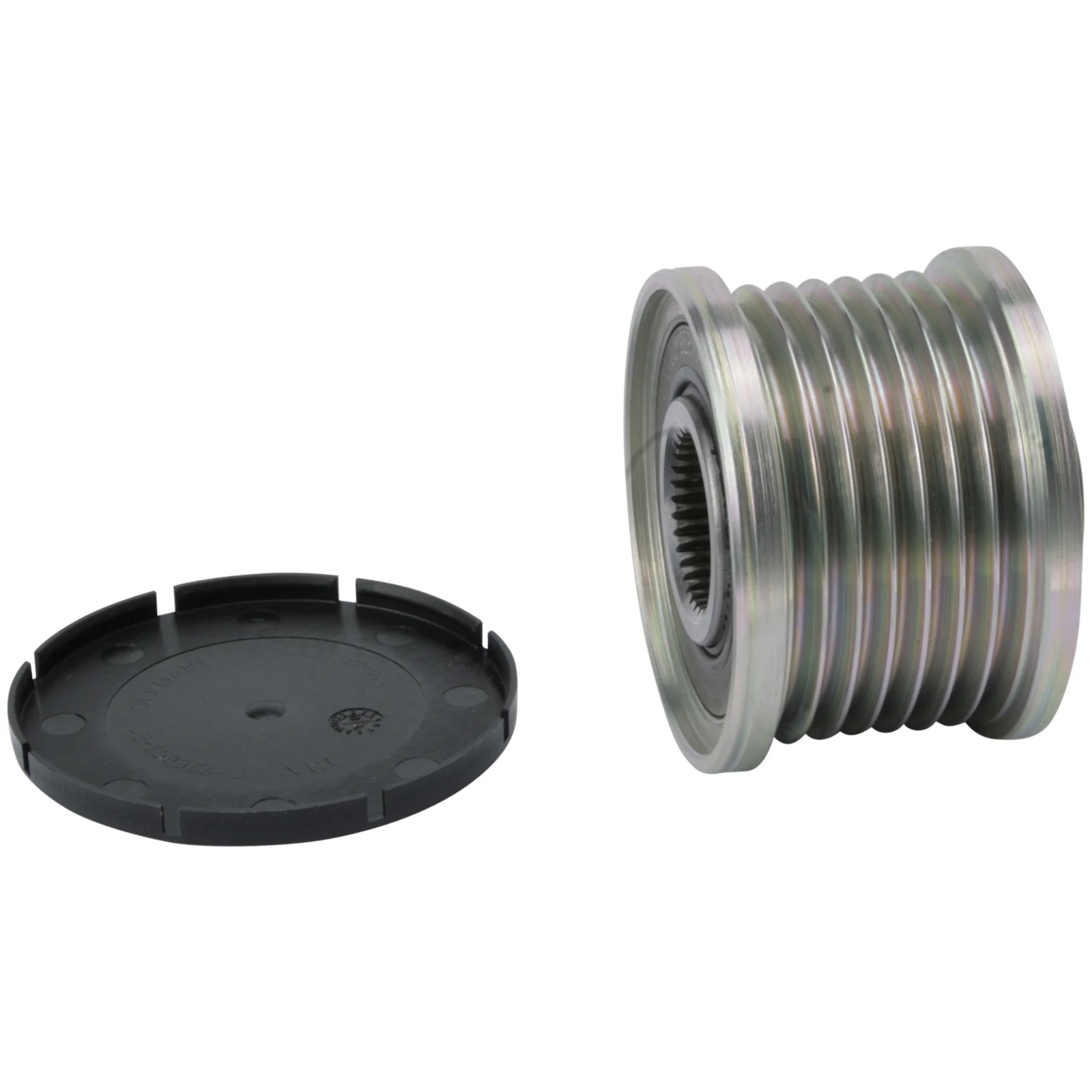

Pulley

Technical info:

Rotation: CW, OD mm: 48.60, Width 1 mm: 40.80, Bore diameter: 17.00

Description

Rotation: CW
OD mm: 48.60
Width 1 mm: 40.80
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 16.00
Dist./back: 6.00
Pulley type: SP/FW
Grooves: 7
Belt type: Multi Belt
Free run: with
ID/bearing mm: N/A
Measurement 1. groove: 11.70
Pulley: N/A
Source: N/A

Files

  • OEM
    F-236675.02, f-236675.03, F-236675.04, f-561464, F032330200, 330200, 353331, 588027, 593514, 595226, 535008010, 5350080010, 5350080100

  • Normalised article numbler
    afp3016, afp3016ina, afp3016v, f032330200, f23667502, f23667503, f23667504, f561464, 330200, 353331, 588027, 593514, 595226, 535008010, 5350080010, 5350080100
  • Description
    Rotation: CW
    OD mm: 48.60
    Width 1 mm: 40.80
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 16.00
    Dist./back: 6.00
    Pulley type: SP/FW
    Grooves: 7
    Belt type: Multi Belt
    Free run: with
    ID/bearing mm: N/A
    Measurement 1. groove: 11.70
    Pulley: N/A
    Source: N/A

    Files

  • Suitable for these vehicles

    • OEM
      F-236675.02, f-236675.03, F-236675.04, f-561464, F032330200, 330200, 353331, 588027, 593514, 595226, 535008010, 5350080010, 5350080100

    • Normalised article numbler
      afp3016, afp3016ina, afp3016v, f032330200, f23667502, f23667503, f23667504, f561464, 330200, 353331, 588027, 593514, 595226, 535008010, 5350080010, 5350080100
