Article no.: F032330527

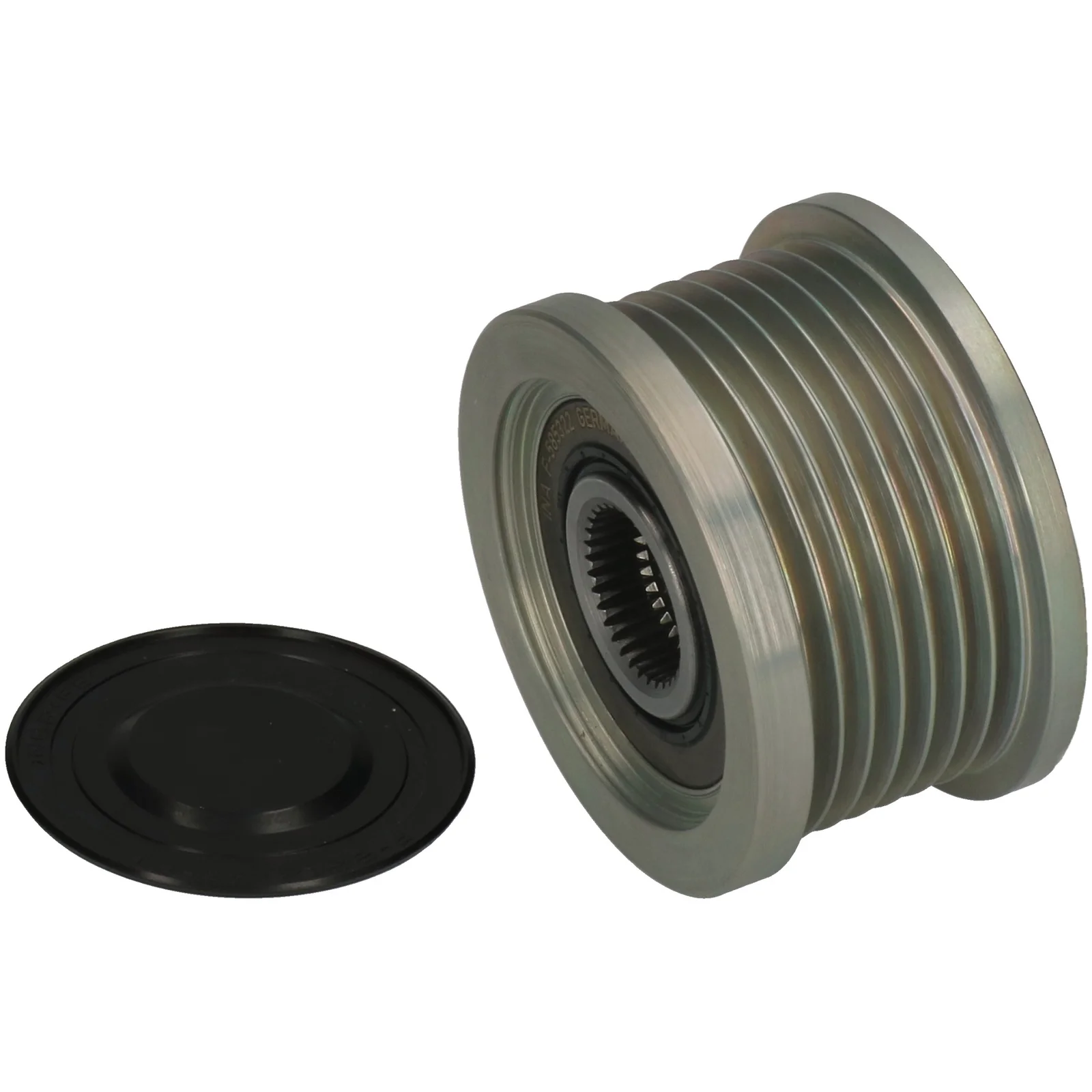

Pulley

Technical info:

Rotation: CW, OD mm: 58.00, Width 1 mm: 41.20, Bore dia.: 17.00

Description

Rotation: CW
OD mm: 58.00
Width 1 mm: 41.20
Bore diameter: 17.00
Thread size: M14-1.50
Depth mm: 12.00
Distance /back: 5.90
Pulley type: SP/FW
Grooves: 7
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 10.90
Pulley: N/A
Source: N/A

Files

  • OEM
    F-585322, F032330527, 361v1-1, 27415-26010, 27415-30010, 330527, 535023200, 535023210

  • Normalised article numbler
    afp6023, afp6026, afp6026ina, f032330527, f585322, 361v11, 330527, 535023200, 535023210, 2741526010, 2741530010
  • Description
    Rotation: CW
    OD mm: 58.00
    Width 1 mm: 41.20
    Bore diameter: 17.00
    Thread size: M14-1.50
    Depth mm: 12.00
    Distance /back: 5.90
    Pulley type: SP/FW
    Grooves: 7
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 10.90
    Pulley: N/A
    Source: N/A

    Files

  • Suitable for these vehicles

    • OEM
      F-585322, F032330527, 361v1-1, 27415-26010, 27415-30010, 330527, 535023200, 535023210

    • Normalised article numbler
      afp6023, afp6026, afp6026ina, f032330527, f585322, 361v11, 330527, 535023200, 535023210, 2741526010, 2741530010
