Article no.: F032332292

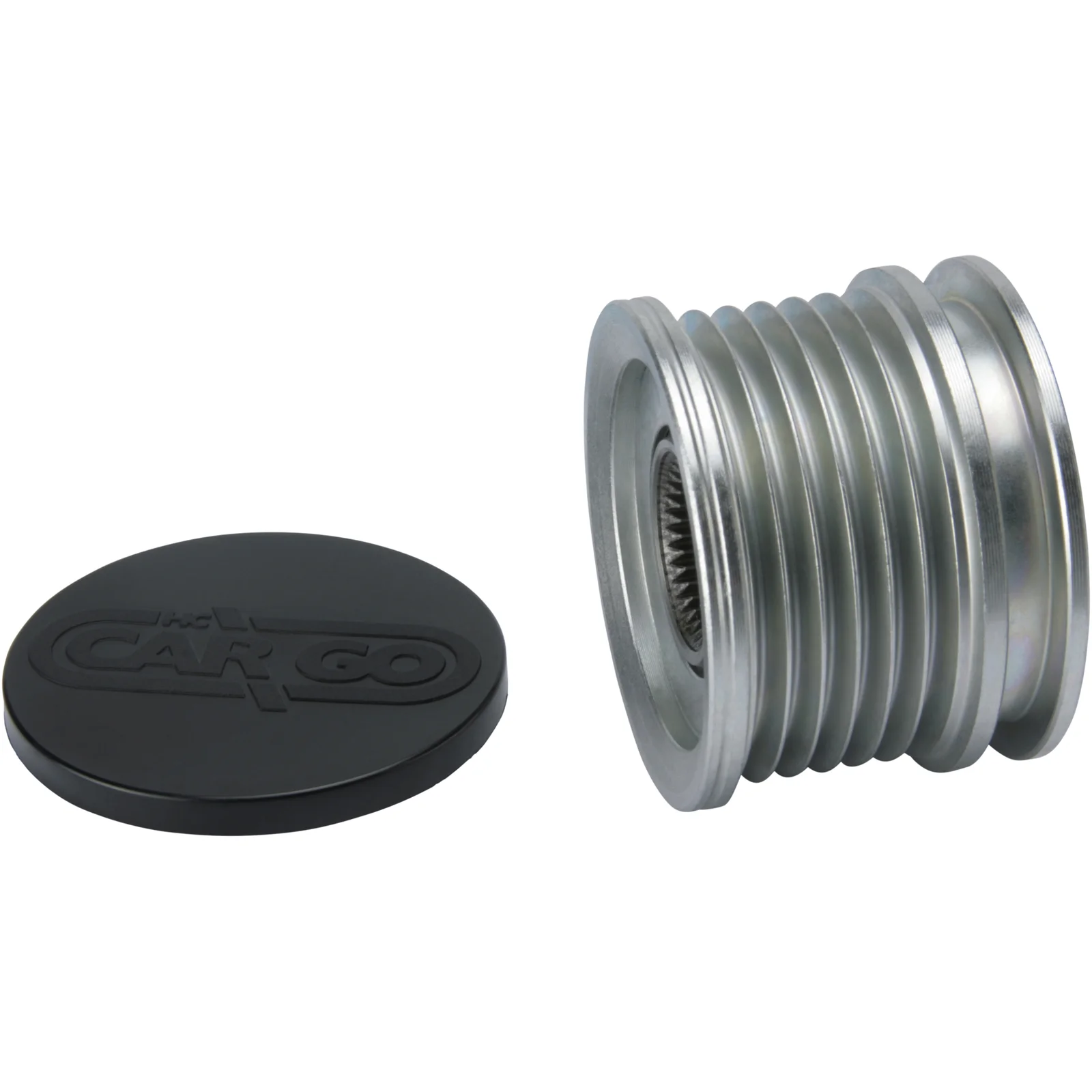

Pulley

Technical info:

OD mm: 50.00, Width 1 mm: 40.30, Bore diameter: 17.00, Thread size: M16-1.50

Description

OD mm: 50.00
Width 1 mm: 40.30
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 16.00
Dist./back: 1.00
Pulley type: SP/FW
Grooves: 6
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 15.60
Pulley: N/A
Remarks: Pulley tool: HC-CARGO 210843.

Files

  • OEM
    f-225355.03, F-225355.04, F-225355.05, F-225355.06, F-225355.07, f-225355.10, F-225355.11, f-225355.3, f-225355.4, f-225355.5, f-225355.6, f-225355.7, F00M991389, F032332292, 85-42-03, 5381, 335171, 028903119aa, 535000110, 1126601565, 1127011846, 5350001000

  • Normalised article numbler
    afp0005, ec4069, f00m991389, f032332292, f22535503, f22535504, f22535505, f22535506, f22535507, f22535510, f22535511, f2253553, f2253554, f2253555, f2253556, f2253557, 5381, 335171, 854203, 2491105, 028903119aa, 535000110, 1126601565, 1127011846, 5350001000
  • Description
    OD mm: 50.00
    Width 1 mm: 40.30
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 16.00
    Dist./back: 1.00
    Pulley type: SP/FW
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 15.60
    Pulley: N/A
    Remarks: Pulley tool: HC-CARGO 210843.

    Files

  • Suitable for these vehicles

    • OEM
      f-225355.03, F-225355.04, F-225355.05, F-225355.06, F-225355.07, f-225355.10, F-225355.11, f-225355.3, f-225355.4, f-225355.5, f-225355.6, f-225355.7, F00M991389, F032332292, 85-42-03, 5381, 335171, 028903119aa, 535000110, 1126601565, 1127011846, 5350001000

    • Normalised article numbler
      afp0005, ec4069, f00m991389, f032332292, f22535503, f22535504, f22535505, f22535506, f22535507, f22535510, f22535511, f2253553, f2253554, f2253555, f2253556, f2253557, 5381, 335171, 854203, 2491105, 028903119aa, 535000110, 1126601565, 1127011846, 5350001000
