Article no.: F032332297

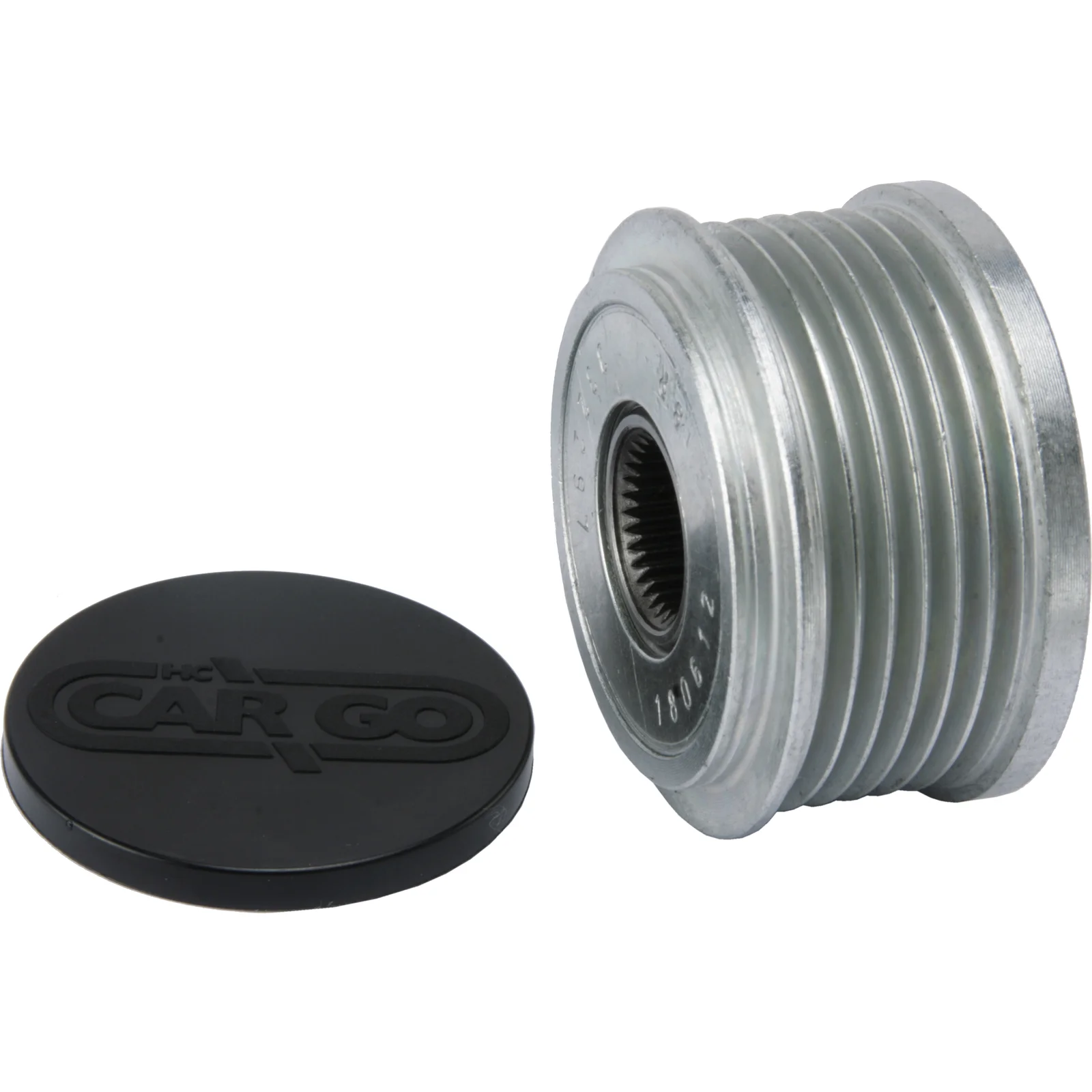

Pulley

Technical info:

Rotation: CW, OD mm: 61.50, Width 1 mm: 41.50, Bore dia.: 17.00

Description

Rotation: CW
OD mm: 61.50
Width 1 mm: 41.50
Bore dia.: 17.00
Thread size: M17-1.50
Depth mm: 11.00
Dist./back: 6.00
Pulley type: SP/FW
Grooves: 6
Belt type: Multi Belt
Free run: with
ID/bearing mm: N/A
Measurement 1. groove: 14.00
Pulley: N/A
Servicing: A127IR
Remarks: Pulley tool: HC-CARGO 210843.

Files

  • OEM
    F-230866, F-230866.01, F-230866.03, F-230866.04, F-230866.05, F-230866.07, F-230866.08, f-230866.10, f-230866.11, F032332297, 85-41-00, 5379, 335401, 354031, 9948225, 9951162, 85562751, 85562931, 535002300, 535002310, 5350023000, 083625160000, 085562751010, 085562931010

  • Normalised article numbler
    afp4001, f032332297, f230866, f23086601, f23086603, f23086604, f23086605, f23086607, f23086608, f23086610, f23086611, 5379, 335401, 354031, 854100, 9948225, 9951162, 85562751, 85562931, 535002300, 535002310, 5350023000, 083625160000, 085562751010, 085562931010
  • Description
    Rotation: CW
    OD mm: 61.50
    Width 1 mm: 41.50
    Bore dia.: 17.00
    Thread size: M17-1.50
    Depth mm: 11.00
    Dist./back: 6.00
    Pulley type: SP/FW
    Grooves: 6
    Belt type: Multi Belt
    Free run: with
    ID/bearing mm: N/A
    Measurement 1. groove: 14.00
    Pulley: N/A
    Servicing: A127IR
    Remarks: Pulley tool: HC-CARGO 210843.

    Files

  • Suitable for these vehicles

    • OEM
      F-230866, F-230866.01, F-230866.03, F-230866.04, F-230866.05, F-230866.07, F-230866.08, f-230866.10, f-230866.11, F032332297, 85-41-00, 5379, 335401, 354031, 9948225, 9951162, 85562751, 85562931, 535002300, 535002310, 5350023000, 083625160000, 085562751010, 085562931010

    • Normalised article numbler
      afp4001, f032332297, f230866, f23086601, f23086603, f23086604, f23086605, f23086607, f23086608, f23086610, f23086611, 5379, 335401, 354031, 854100, 9948225, 9951162, 85562751, 85562931, 535002300, 535002310, 5350023000, 083625160000, 085562751010, 085562931010
