Article no.: F032332299

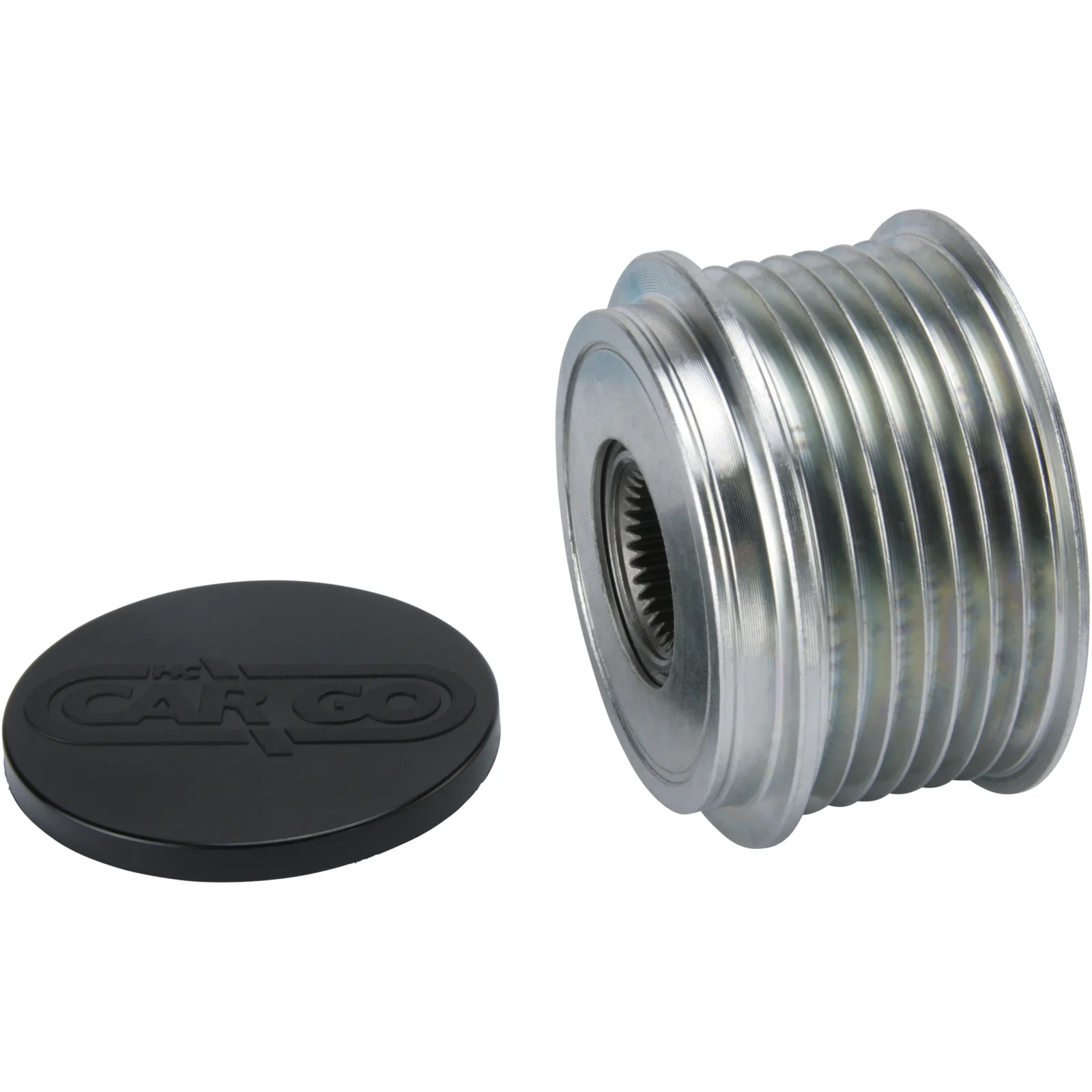

Pulley

Technical info:

Rotation: CW, OD mm: 59.60, Width 1 mm: 40.20, Bore diameter: 17.00

Description

Rotation: CW
OD mm: 59.60
Width 1 mm: 40.20
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 11.10
Dist./back: 2.70
Pulley type: SP/FW
Grooves: 7
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 7.20
Pulley: N/A
Remarks: Pulley tool: HC-CARGO 210843.

Files

  • OEM
    F-228751.03, f-228751.06, F-228751.07, f-228751.2, f-228751.3, F032332299, gd215541, l170g-25003, 5431, 23150-2w200, 23150-2w20a, 535005310, 5350053000

  • Normalised article numbler
    afp2003, f032332299, f22875103, f22875106, f22875107, f2287512, f2287513, gd215541, l170g25003, 5431, 231502w200, 231502w20a, 535005310, 5350053000
  • Description
    Rotation: CW
    OD mm: 59.60
    Width 1 mm: 40.20
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 11.10
    Dist./back: 2.70
    Pulley type: SP/FW
    Grooves: 7
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 7.20
    Pulley: N/A
    Remarks: Pulley tool: HC-CARGO 210843.

    Files

  • Suitable for these vehicles

    • OEM
      F-228751.03, f-228751.06, F-228751.07, f-228751.2, f-228751.3, F032332299, gd215541, l170g-25003, 5431, 23150-2w200, 23150-2w20a, 535005310, 5350053000

    • Normalised article numbler
      afp2003, f032332299, f22875103, f22875106, f22875107, f2287512, f2287513, gd215541, l170g25003, 5431, 231502w200, 231502w20a, 535005310, 5350053000
