Article no.: F032332300

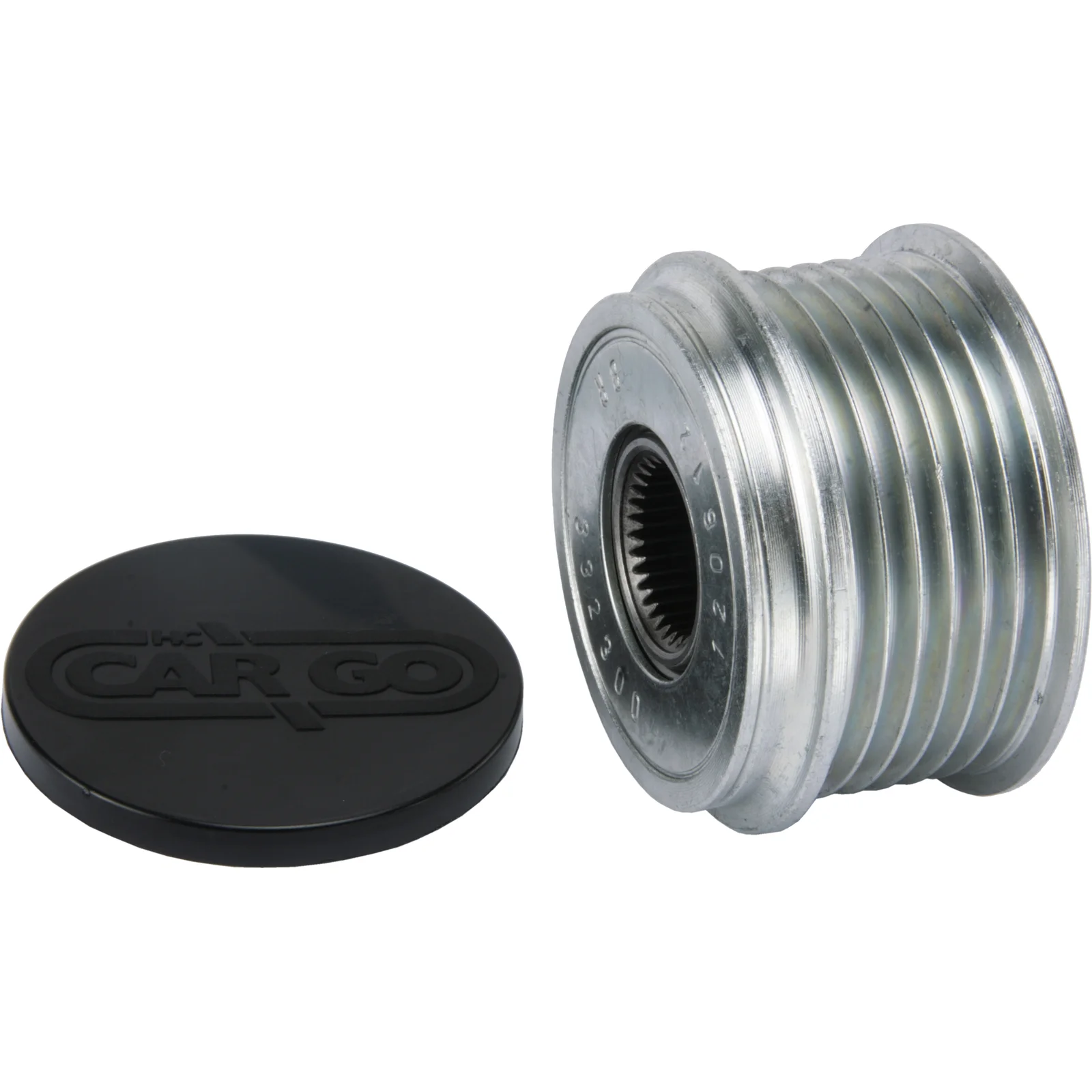

Pulley

Technical info:

Rotation: CW, OD mm: 55.80, Width 1 mm: 41.80, Bore diameter: 17.00

Description

Rotation: CW
OD mm: 55.80
Width 1 mm: 41.80
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 16.00
Dist./back: 6.30
Pulley type: SP/FW
Grooves: 6
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 11.30
Pulley: N/A
Remarks: Pulley tool: HC-CARGO 210909.

Files

  • OEM
    F-228881.02, F-228881.03, F-228881.2, f-228881.3, F-235152.01, F-235152.02, F-235152.03, F-235152.04, f-556599.01, F032332300, 5389, 593515, 593517, 2546952, 8641982, 535002810, 5350028000, 7701055871, 7701207807

  • Normalised article numbler
    afp3004, f032332300, f22888102, f22888103, f2288812, f2288813, f23515201, f23515202, f23515203, f23515204, f55659901, 5389, 593515, 593517, 2546952, 8641982, 535002810, 5350028000, 7701055871, 7701207807
  • Description
    Rotation: CW
    OD mm: 55.80
    Width 1 mm: 41.80
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 16.00
    Dist./back: 6.30
    Pulley type: SP/FW
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 11.30
    Pulley: N/A
    Remarks: Pulley tool: HC-CARGO 210909.

    Files

  • Suitable for these vehicles

    • OEM
      F-228881.02, F-228881.03, F-228881.2, f-228881.3, F-235152.01, F-235152.02, F-235152.03, F-235152.04, f-556599.01, F032332300, 5389, 593515, 593517, 2546952, 8641982, 535002810, 5350028000, 7701055871, 7701207807

    • Normalised article numbler
      afp3004, f032332300, f22888102, f22888103, f2288812, f2288813, f23515201, f23515202, f23515203, f23515204, f55659901, 5389, 593515, 593517, 2546952, 8641982, 535002810, 5350028000, 7701055871, 7701207807
