Article no.: F032332302

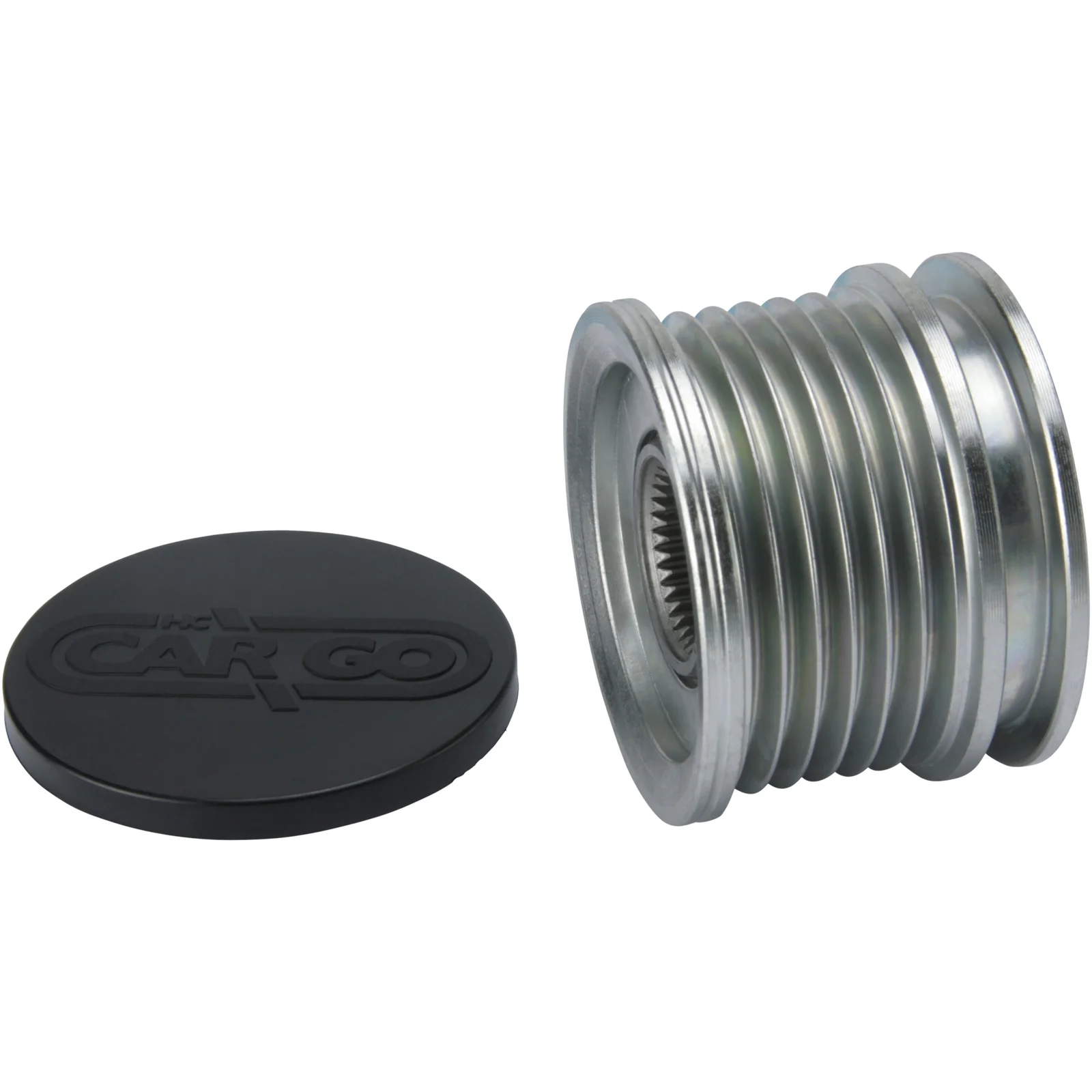

Pulley

Technical info:

Rotation: CW, OD mm: 49.80, Width 1 mm: 40.30, Bore diameter: 17.00

Description

Rotation: CW
OD mm: 49.80
Width 1 mm: 40.30
Bore diameter: 17.00
Thread size: M16-1.50
Depth mm: 11.10
Dist./back: 1.00
Pulley type: SP/FW
Grooves: 6
Belt type: Multi Belt
Free run: w/
Measurement 1. groove: 15.60
Remarks: Pulley tool: HC-CARGO 210843.

Files

  • OEM
    F-233197, F-233197.01, F-233197.02, F-233197.03, f-233197.04, F-233197.05, f-233197.2, f-233197.3, f-233197.5, f-559320, F-559320.01, F00M991099, f00m991125, f00m991190, f00m991303, F032332302, F559320, 85-42-09, 1986AE0418, 5395, 353071, 2549800, 535005010, 5350050000, 6111550515, 6111550715

  • Normalised article numbler
    f00m991099, f00m991125, f00m991190, f00m991303, f032332302, f233197, f23319701, f23319702, f23319703, f23319704, f23319705, f2331972, f2331973, f2331975, f559320, f55932001, 1986ae0418, 5395, 353071, 854209, 2549800, 535005010, 5350050000, 6111550515, 6111550715
  • Description
    Rotation: CW
    OD mm: 49.80
    Width 1 mm: 40.30
    Bore diameter: 17.00
    Thread size: M16-1.50
    Depth mm: 11.10
    Dist./back: 1.00
    Pulley type: SP/FW
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    Measurement 1. groove: 15.60
    Remarks: Pulley tool: HC-CARGO 210843.

    Files

  • Suitable for these vehicles

    • OEM
      F-233197, F-233197.01, F-233197.02, F-233197.03, f-233197.04, F-233197.05, f-233197.2, f-233197.3, f-233197.5, f-559320, F-559320.01, F00M991099, f00m991125, f00m991190, f00m991303, F032332302, F559320, 85-42-09, 1986AE0418, 5395, 353071, 2549800, 535005010, 5350050000, 6111550515, 6111550715

    • Normalised article numbler
      f00m991099, f00m991125, f00m991190, f00m991303, f032332302, f233197, f23319701, f23319702, f23319703, f23319704, f23319705, f2331972, f2331973, f2331975, f559320, f55932001, 1986ae0418, 5395, 353071, 854209, 2549800, 535005010, 5350050000, 6111550515, 6111550715
