Article no.: F032332305

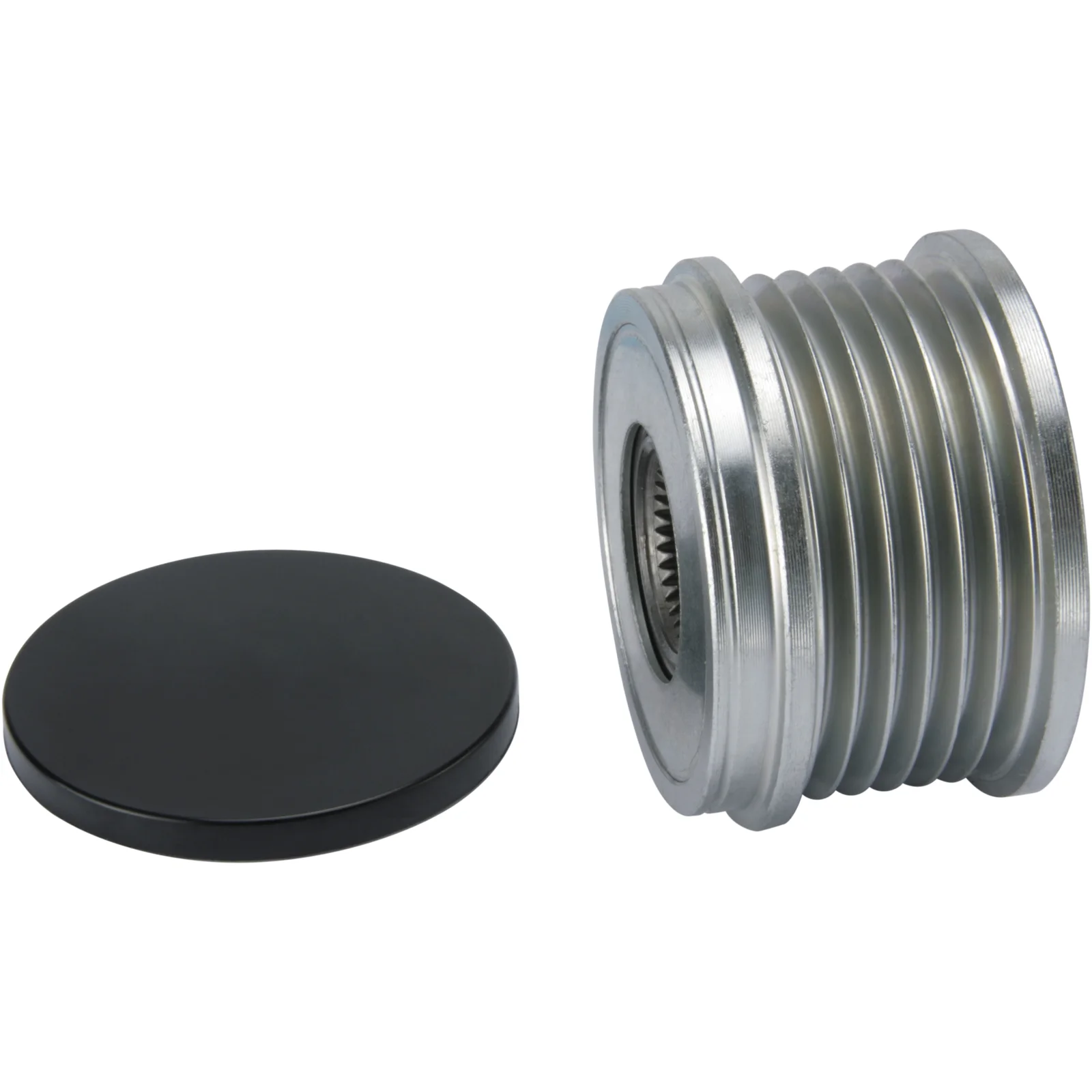

Pulley

Technical info:

Rotation: CW, OD mm: 54.30, Width 1 mm: 38.20, Bore dia.: 17.00

Description

Rotation: CW
OD mm: 54.30
Width 1 mm: 38.20
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 11.60
Dist./back: 1.50
Pulley type: SP/FW
Grooves: 6
Belt type: Multi Belt
Free run: with
ID/bearing mm: N/A
Measurement 1. groove: 8.00
Pulley: N/A
Remarks: Pulley tool: HC-CARGO 210843.

Files

  • OEM
    F-232369.04, F-232369.05, f-232369.07, F-232369.08, F-232369.4, F00M147764, F00M147766, F00M147907, F00M349814, F00M991171, F00M991271, F032332305, 5450, 335731, 588003, 77362558, 535005910, 5350059000

  • Normalised article numbler
    ec4252, f00m147764, f00m147766, f00m147907, f00m349814, f00m991171, f00m991271, f032332305, f23236904, f23236905, f23236907, f23236908, f2323694, 5450, 335731, 588003, 77362558, 535005910, 5350059000
  • Description
    Rotation: CW
    OD mm: 54.30
    Width 1 mm: 38.20
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 11.60
    Dist./back: 1.50
    Pulley type: SP/FW
    Grooves: 6
    Belt type: Multi Belt
    Free run: with
    ID/bearing mm: N/A
    Measurement 1. groove: 8.00
    Pulley: N/A
    Remarks: Pulley tool: HC-CARGO 210843.

    Files

  • Suitable for these vehicles

    • OEM
      F-232369.04, F-232369.05, f-232369.07, F-232369.08, F-232369.4, F00M147764, F00M147766, F00M147907, F00M349814, F00M991171, F00M991271, F032332305, 5450, 335731, 588003, 77362558, 535005910, 5350059000

    • Normalised article numbler
      ec4252, f00m147764, f00m147766, f00m147907, f00m349814, f00m991171, f00m991271, f032332305, f23236904, f23236905, f23236907, f23236908, f2323694, 5450, 335731, 588003, 77362558, 535005910, 5350059000
