Article no.: F032332307

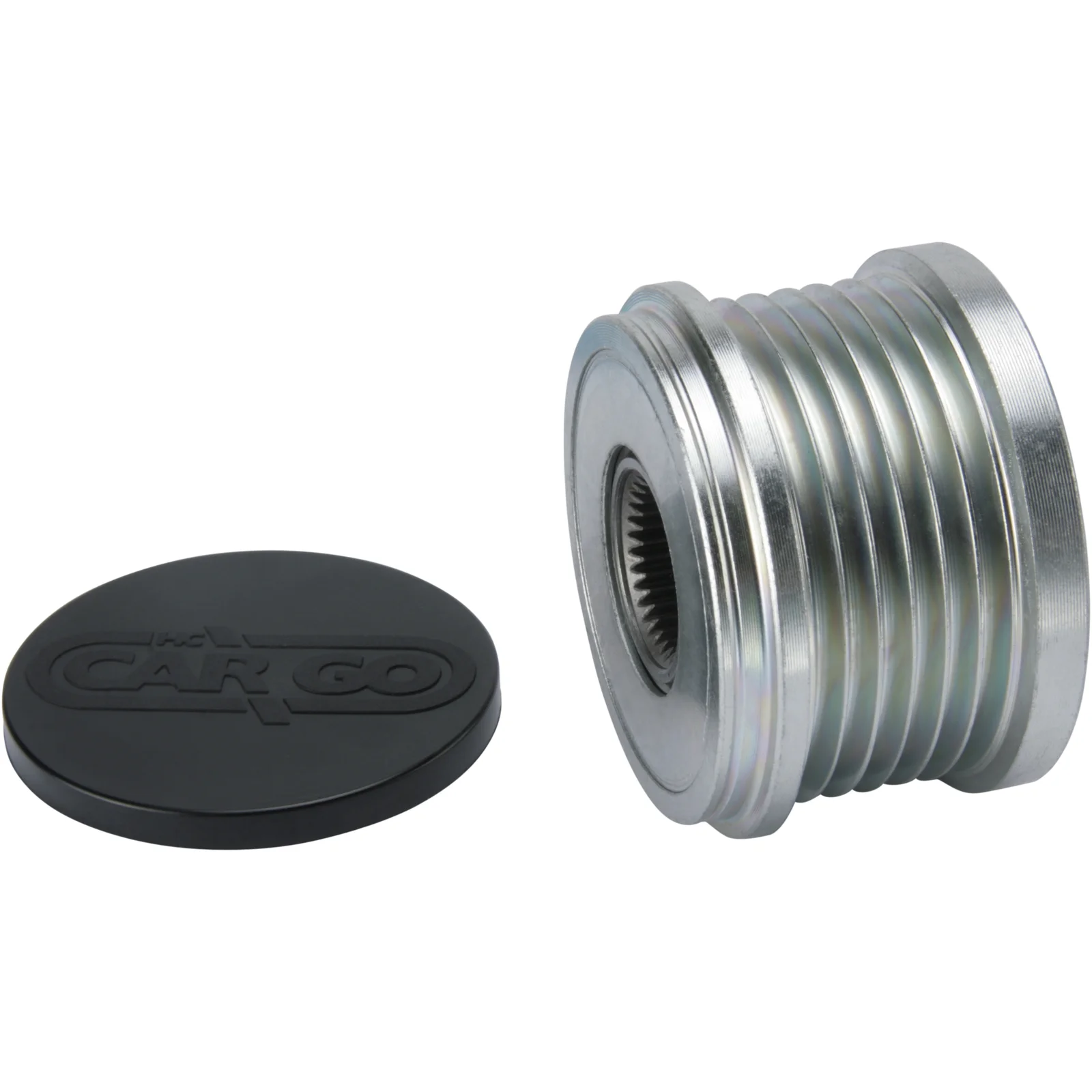

Pulley

Technical info:

Rotation: CW, OD mm: 54.00, Width 1 mm: 41.80, Bore dia.: 17.00

Description

Rotation: CW
OD mm: 54.00
Width 1 mm: 41.80
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 16.00
Dist./back: 3.50
Pulley type: SP/FW
Grooves: 6
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 12.50
Pulley: N/A
Remarks: Pulley tool: HC-CARGO 210843.

Files

  • OEM
    F-236591.01, F-236591.02, F-236591.04, f-236591.05, f-236591.06, F-236591.07, F-236591.1, f-236591.4, F032332307, 85-46-49, 86-46-46, 5453, 335791, 354351, 588002, 593832, 2601052, 2603530, 535006210, 535019410, 5350062000

  • Normalised article numbler
    afp3009, afp3030, ec4257, f032332307, f23659101, f23659102, f23659104, f23659105, f23659106, f23659107, f2365911, f2365914, 5453, 335791, 354351, 588002, 593832, 854649, 864646, 2601052, 2603530, 24942613, 535006210, 535019410, 5350062000
  • Description
    Rotation: CW
    OD mm: 54.00
    Width 1 mm: 41.80
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 16.00
    Dist./back: 3.50
    Pulley type: SP/FW
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 12.50
    Pulley: N/A
    Remarks: Pulley tool: HC-CARGO 210843.

    Files

  • Suitable for these vehicles

    • OEM
      F-236591.01, F-236591.02, F-236591.04, f-236591.05, f-236591.06, F-236591.07, F-236591.1, f-236591.4, F032332307, 85-46-49, 86-46-46, 5453, 335791, 354351, 588002, 593832, 2601052, 2603530, 535006210, 535019410, 5350062000

    • Normalised article numbler
      afp3009, afp3030, ec4257, f032332307, f23659101, f23659102, f23659104, f23659105, f23659106, f23659107, f2365911, f2365914, 5453, 335791, 354351, 588002, 593832, 854649, 864646, 2601052, 2603530, 24942613, 535006210, 535019410, 5350062000
