Article no.: F032332317

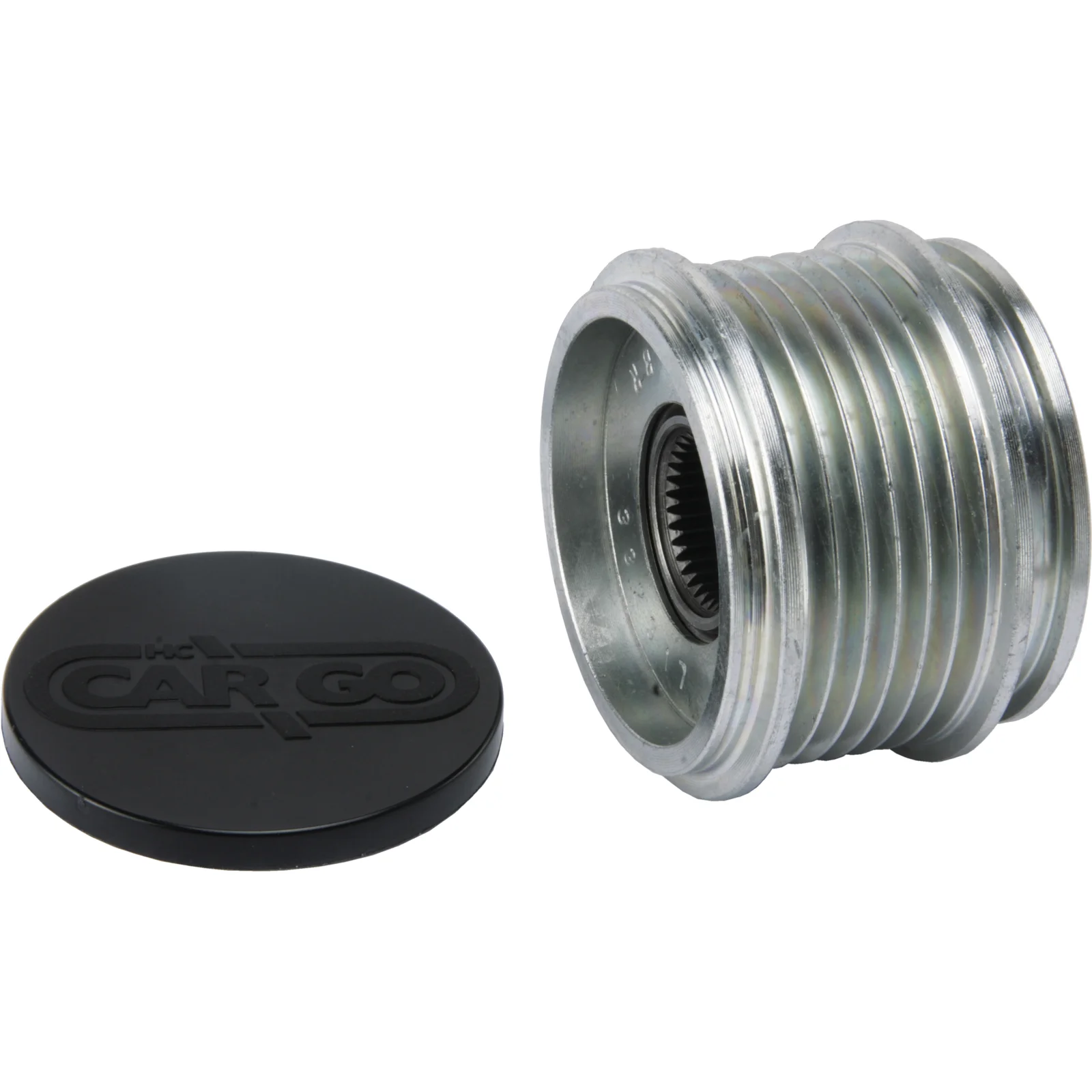

Pulley

Technical info:

Rotation: CW, OD mm: 56.20, Width 1 mm: 42.80, Bore dia.: 17.00

Description

Rotation: CW
OD mm: 56.20
Width 1 mm: 42.80
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 11.10
Dist./back: 1.00
Pulley type: SP/FW
Grooves: 6
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 15.20
Pulley: N/A
Remarks: Pulley tool: HC-CARGO 210843.

Files

  • OEM
    F-227628, F-227628.04, F-227628.05, F-227628.06, F-227628.07, f-227628.10, F-227628.11, F-227628.12, f-227628.4, f-227628.5, f-227628.6, f-227628.7, f-227628.8, F-553470.01, f-553470.02, F-553470.07, F00M147600, F00M147737, F00M147801, f00m591131, f00m599534, f00m991002, f00m991122, f00m991206, f00m991284, F032332317, GD214998, GD214998-1, 85-42-06, 1986AE4573, 5378, 0138600, 0138601, 335201, 588001, 593491, 593600, 593999, 599327, 2536778, 2546778, 2602911, 2604504, 022903119c, 028903119am, 038903119a, 038903119t, 535001210

  • Normalised article numbler
    afp0010, ec4076, f00m147600, f00m147737, f00m147801, f00m591131, f00m599534, f00m991002, f00m991122, f00m991206, f00m991284, f032332317, f227628, f22762804, f22762805, f22762806, f22762807, f22762810, f22762811, f22762812, f2276284, f2276285, f2276286, f2276287, f2276288, f55347001, f55347002, f55347007, gd214998, gd2149981, 1986ae4573, 5378, 0138600, 0138601, 335201, 588001, 593491, 593600, 593999, 599327, 854206, 2491255, 2536778, 2546778, 2602911, 2604504, 022903119c, 028903119am, 038903119a, 038903119t, 535001210
  • Description
    Rotation: CW
    OD mm: 56.20
    Width 1 mm: 42.80
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 11.10
    Dist./back: 1.00
    Pulley type: SP/FW
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 15.20
    Pulley: N/A
    Remarks: Pulley tool: HC-CARGO 210843.

    Files

  • Suitable for these vehicles

    • OEM
      F-227628, F-227628.04, F-227628.05, F-227628.06, F-227628.07, f-227628.10, F-227628.11, F-227628.12, f-227628.4, f-227628.5, f-227628.6, f-227628.7, f-227628.8, F-553470.01, f-553470.02, F-553470.07, F00M147600, F00M147737, F00M147801, f00m591131, f00m599534, f00m991002, f00m991122, f00m991206, f00m991284, F032332317, GD214998, GD214998-1, 85-42-06, 1986AE4573, 5378, 0138600, 0138601, 335201, 588001, 593491, 593600, 593999, 599327, 2536778, 2546778, 2602911, 2604504, 022903119c, 028903119am, 038903119a, 038903119t, 535001210

    • Normalised article numbler
      afp0010, ec4076, f00m147600, f00m147737, f00m147801, f00m591131, f00m599534, f00m991002, f00m991122, f00m991206, f00m991284, f032332317, f227628, f22762804, f22762805, f22762806, f22762807, f22762810, f22762811, f22762812, f2276284, f2276285, f2276286, f2276287, f2276288, f55347001, f55347002, f55347007, gd214998, gd2149981, 1986ae4573, 5378, 0138600, 0138601, 335201, 588001, 593491, 593600, 593999, 599327, 854206, 2491255, 2536778, 2546778, 2602911, 2604504, 022903119c, 028903119am, 038903119a, 038903119t, 535001210
