Article no.: F032332321

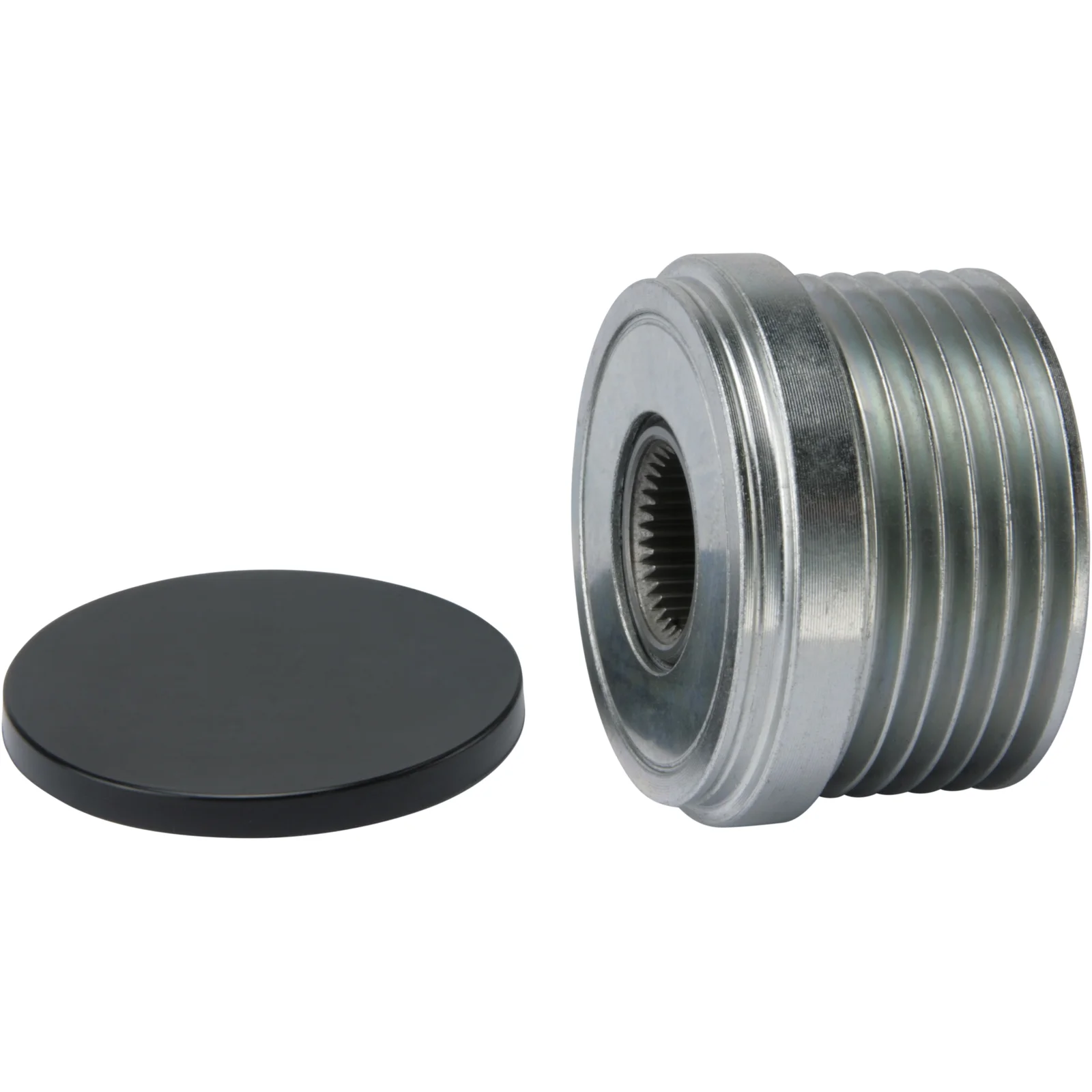

Pulley

Technical info:

Rotation: CW, OD mm: 54.30, Width 1 mm: 40.60, Bore diameter: 17.00

Description

Rotation: CW
OD mm: 54.30
Width 1 mm: 40.60
Bore diameter: 17.00
Thread size: M16-1.50
Depth mm: 11.10
Distance/back: 3.80
Pulley type: SP/FW
Grooves: 6
Belt type: Multi Belt
Free run: w/
ID/bearing mm: N/A
Measurement 1. groove: 7.20
Pulley: N/A
Remarks: Pulley tool: HC-CARGO 210843.

Files

  • OEM
    F-229603.02, F-229603.03, F-229603.06, F-229603.07, F-229603.08, F-229603.09, F-229603.12, f-229603.13, F-229603.15, f-229603.16, F-229603.2, F-229603.3, F-229603.6, F-229603.7, F-229603.8, F-229603.9, F032332321, 5437, 31771-68D00, 31771-68D01, 588015, 593527, 593907, 2548343A, 2548543, 2602877, 9949627, 77363303, 535007310, 5350073000

  • Normalised article numbler
    afp3005, afp3013, ec4264, ec4269, f032332321, f22960302, f22960303, f22960306, f22960307, f22960308, f22960309, f22960312, f22960313, f22960315, f22960316, f2296032, f2296033, f2296036, f2296037, f2296038, f2296039, 5437, 588015, 593527, 593907, 2548343a, 2548543, 2602877, 3177168d00, 3177168d01, 9949627, 77363303, 535007310, 5350073000
  • Description
    Rotation: CW
    OD mm: 54.30
    Width 1 mm: 40.60
    Bore diameter: 17.00
    Thread size: M16-1.50
    Depth mm: 11.10
    Distance/back: 3.80
    Pulley type: SP/FW
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    ID/bearing mm: N/A
    Measurement 1. groove: 7.20
    Pulley: N/A
    Remarks: Pulley tool: HC-CARGO 210843.

    Files

  • Suitable for these vehicles

    • OEM
      F-229603.02, F-229603.03, F-229603.06, F-229603.07, F-229603.08, F-229603.09, F-229603.12, f-229603.13, F-229603.15, f-229603.16, F-229603.2, F-229603.3, F-229603.6, F-229603.7, F-229603.8, F-229603.9, F032332321, 5437, 31771-68D00, 31771-68D01, 588015, 593527, 593907, 2548343A, 2548543, 2602877, 9949627, 77363303, 535007310, 5350073000

    • Normalised article numbler
      afp3005, afp3013, ec4264, ec4269, f032332321, f22960302, f22960303, f22960306, f22960307, f22960308, f22960309, f22960312, f22960313, f22960315, f22960316, f2296032, f2296033, f2296036, f2296037, f2296038, f2296039, 5437, 588015, 593527, 593907, 2548343a, 2548543, 2602877, 3177168d00, 3177168d01, 9949627, 77363303, 535007310, 5350073000
