Article no.: F032333026

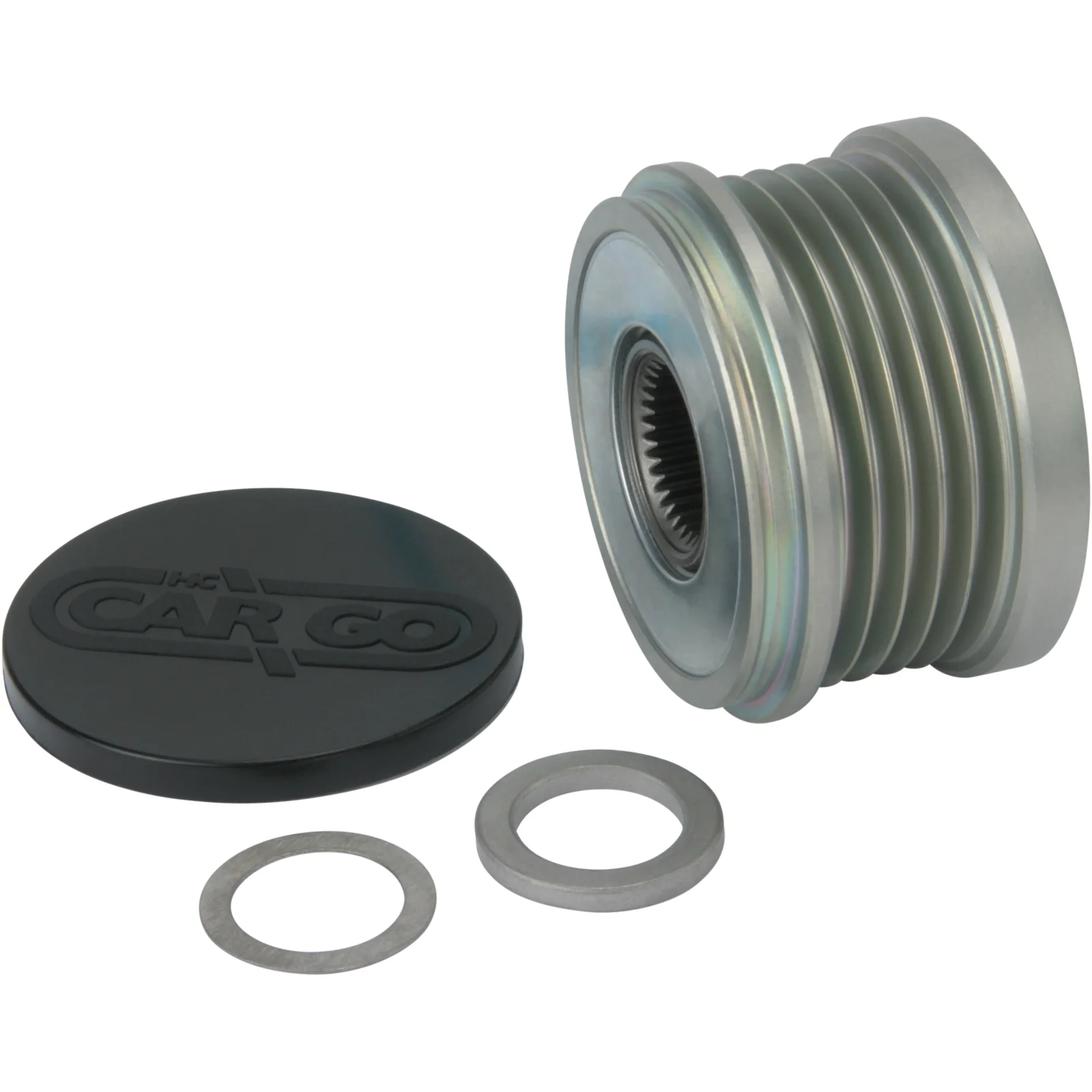

Pulley

Technical info:

Rotation: CW, OD mm: 54.50, Width 1 mm: 43.00, Bore dia.: 17.00

Description

Rotation: CW
OD mm: 54.50
Width 1 mm: 43.00
Bore diameter: 17.00
Thread size: M16-1.50
Depth mm: 11.20
Dist./back: 7.80
Pulley type: SP/FW
Grooves: 5
Belt type: Multi Belt
Free run: with
ID/bearing mm: N/A
Measurement 1. groove: 17.80
Pulley: N/A
Remarks: Pulley tool: HC-CARGO 210843.

Files

  • OEM
    a660c300ex, F-230147.04, f-550213.01, F-550213.03, F-550213.04, f-550213.07, f-550213.10, F00M147721, F00M147806, F00M147976, f00m991039, f00m991217, F00M991326, F00M991375, F032333026, 5525, 335481, 588026, 535008910, 5350018000, 5350089000

  • Normalised article numbler
    a660c300ex, afp0014, afp0056, afp0115s, ap3004, f00m147721, f00m147806, f00m147976, f00m991039, f00m991217, f00m991326, f00m991375, f032333026, f23014704, f55021301, f55021303, f55021304, f55021307, f55021310, 5525, 335481, 588026, 535008910, 5350018000, 5350089000
  • Description
    Rotation: CW
    OD mm: 54.50
    Width 1 mm: 43.00
    Bore diameter: 17.00
    Thread size: M16-1.50
    Depth mm: 11.20
    Dist./back: 7.80
    Pulley type: SP/FW
    Grooves: 5
    Belt type: Multi Belt
    Free run: with
    ID/bearing mm: N/A
    Measurement 1. groove: 17.80
    Pulley: N/A
    Remarks: Pulley tool: HC-CARGO 210843.

    Files

  • Suitable for these vehicles

    • OEM
      a660c300ex, F-230147.04, f-550213.01, F-550213.03, F-550213.04, f-550213.07, f-550213.10, F00M147721, F00M147806, F00M147976, f00m991039, f00m991217, F00M991326, F00M991375, F032333026, 5525, 335481, 588026, 535008910, 5350018000, 5350089000

    • Normalised article numbler
      a660c300ex, afp0014, afp0056, afp0115s, ap3004, f00m147721, f00m147806, f00m147976, f00m991039, f00m991217, f00m991326, f00m991375, f032333026, f23014704, f55021301, f55021303, f55021304, f55021307, f55021310, 5525, 335481, 588026, 535008910, 5350018000, 5350089000
