Article no.: F032333062

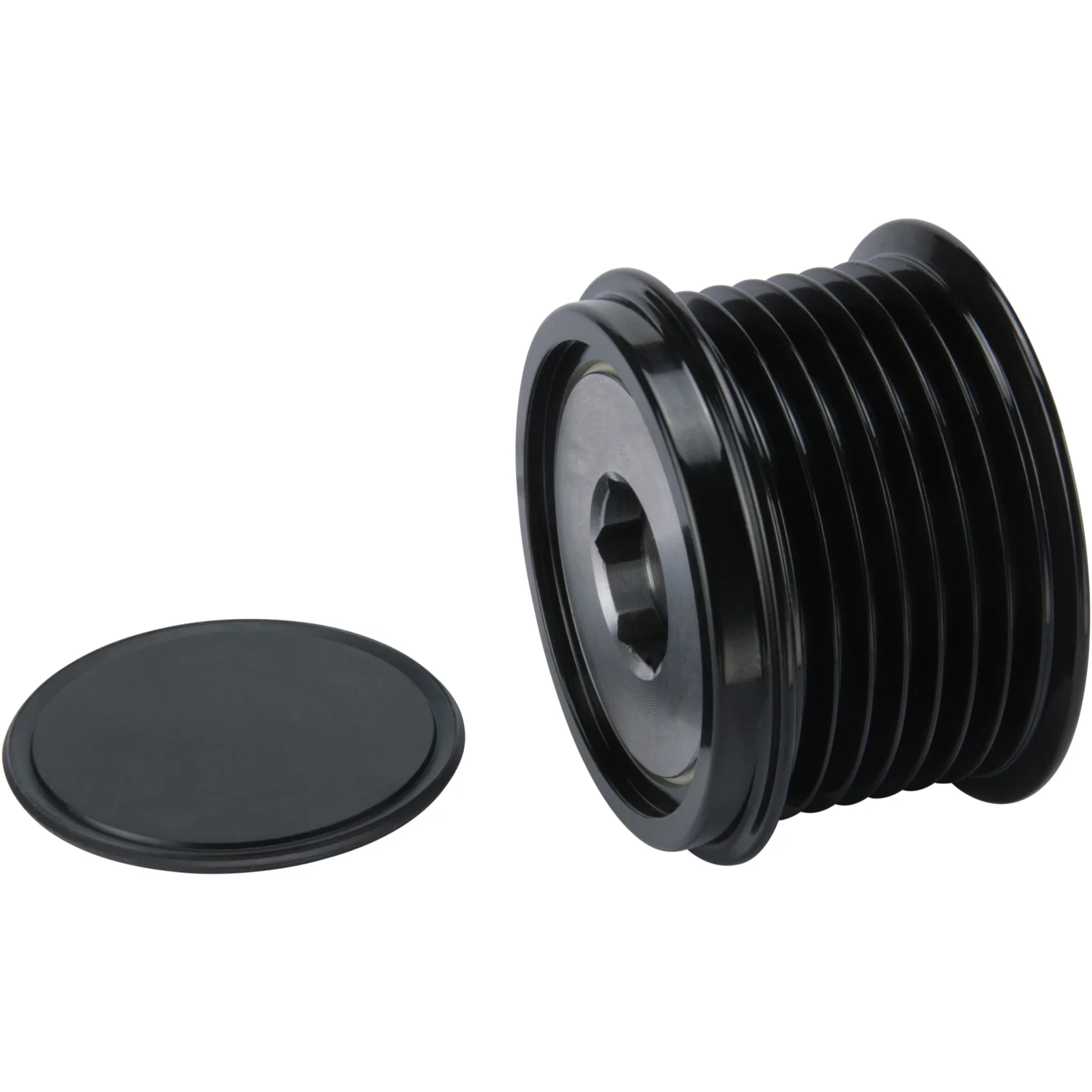

Pulley

Technical info:

Rotation: CW, OD mm: 52.50, Width 1 mm: 41.10, Bore dia.: 17.00

Description

Rotation: CW
OD mm: 52.50
Width 1 mm: 41.10
Bore diameter: 17.00
Thread size: M14-1.50
Depth mm: 10.80
Dist./back: 4.30
Pulley type: OAD
Grooves: 7
Belt type: Multi Belt
Free run: w/
Measurement 1. groove: 9.00
Remarks: Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.

Files

  • OEM
    F032333062, 86-74-53, 5503, 021040-1340, 27415-0w010, 333062, 354151, 920726, 920954, 535020910

  • Normalised article numbler
    afp6017, afp6017litens, afp6075s, ec3596, f032333062, 5503, 274150w010, 333062, 354151, 867453, 920726, 920954, 24822904, 0210401340, 535020910
  • Description
    Rotation: CW
    OD mm: 52.50
    Width 1 mm: 41.10
    Bore diameter: 17.00
    Thread size: M14-1.50
    Depth mm: 10.80
    Dist./back: 4.30
    Pulley type: OAD
    Grooves: 7
    Belt type: Multi Belt
    Free run: w/
    Measurement 1. groove: 9.00
    Remarks: Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.

    Files

  • Suitable for these vehicles

    • OEM
      F032333062, 86-74-53, 5503, 021040-1340, 27415-0w010, 333062, 354151, 920726, 920954, 535020910

    • Normalised article numbler
      afp6017, afp6017litens, afp6075s, ec3596, f032333062, 5503, 274150w010, 333062, 354151, 867453, 920726, 920954, 24822904, 0210401340, 535020910
