Article no.: F032333069

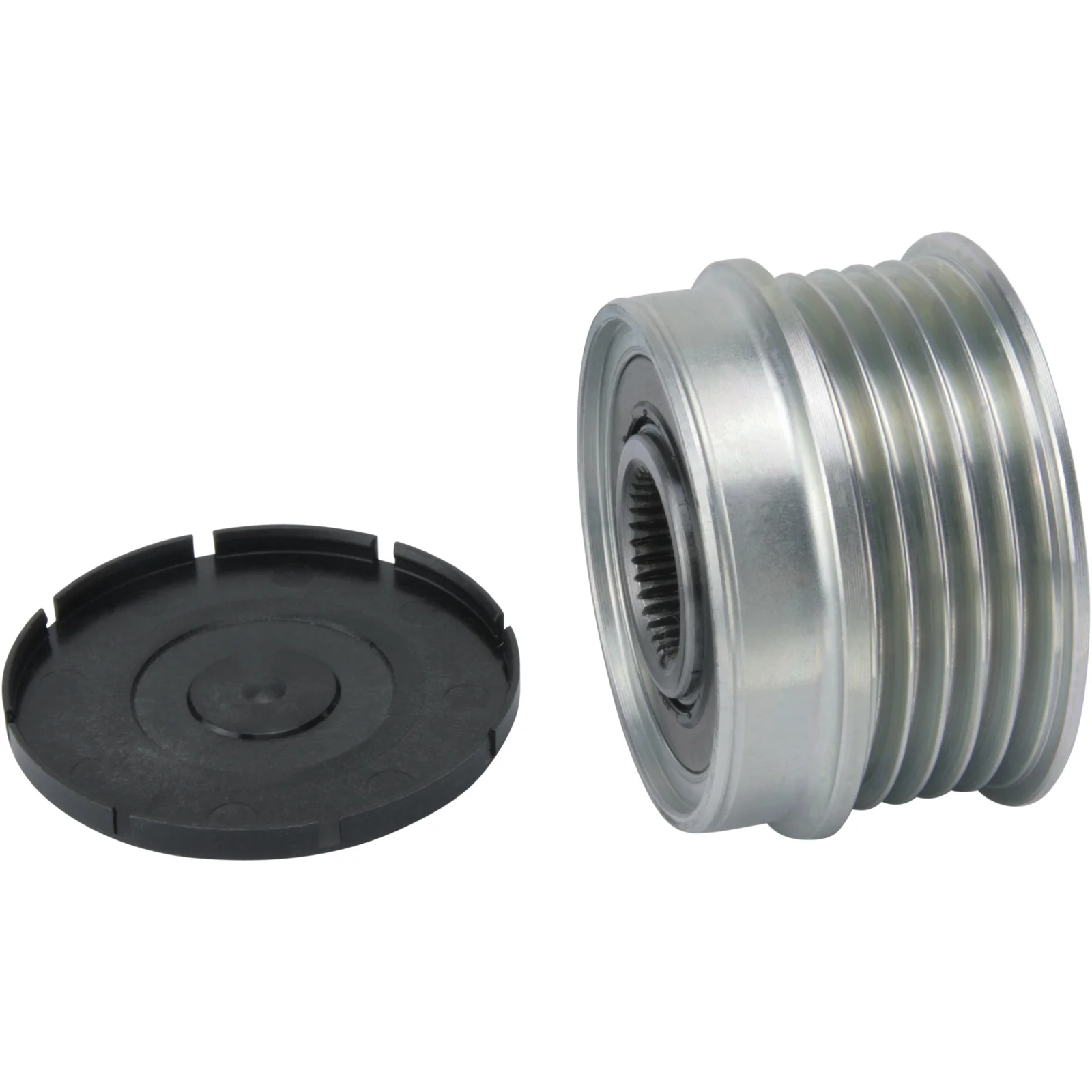

Pulley

Technical info:

OD mm: 54.00, Width 1 mm: 39.80, Bore dia.: 17.00, Thread size: M17-1.50

Description

OD mm: 54.00
Width 1 mm: 39.80
Bore diameter: 17.00
Thread size: M17-1.50
Depth mm: 14.10
Dist./back: 4.90
Pulley type: SP/FW
Grooves: 5
Belt type: Multi Belt
Free run: with
ID/bearing mm: N/A
Measurement 1. groove: 9.00
Pulley: N/A
Source: N/A

Files

  • OEM
    F-558432.02, F032333069, 86-41-23, 121041-1440, 353731, 77364616, 535017110

  • Normalised article numbler
    afp6025, afp6025ina, ec47610, f032333069, f55843202, 353731, 864123, 77364616, 535017110, 1210411440
  • Description
    OD mm: 54.00
    Width 1 mm: 39.80
    Bore diameter: 17.00
    Thread size: M17-1.50
    Depth mm: 14.10
    Dist./back: 4.90
    Pulley type: SP/FW
    Grooves: 5
    Belt type: Multi Belt
    Free run: with
    ID/bearing mm: N/A
    Measurement 1. groove: 9.00
    Pulley: N/A
    Source: N/A

    Files

  • Suitable for these vehicles

    • OEM
      F-558432.02, F032333069, 86-41-23, 121041-1440, 353731, 77364616, 535017110

    • Normalised article numbler
      afp6025, afp6025ina, ec47610, f032333069, f55843202, 353731, 864123, 77364616, 535017110, 1210411440
