Article no.: F032333074

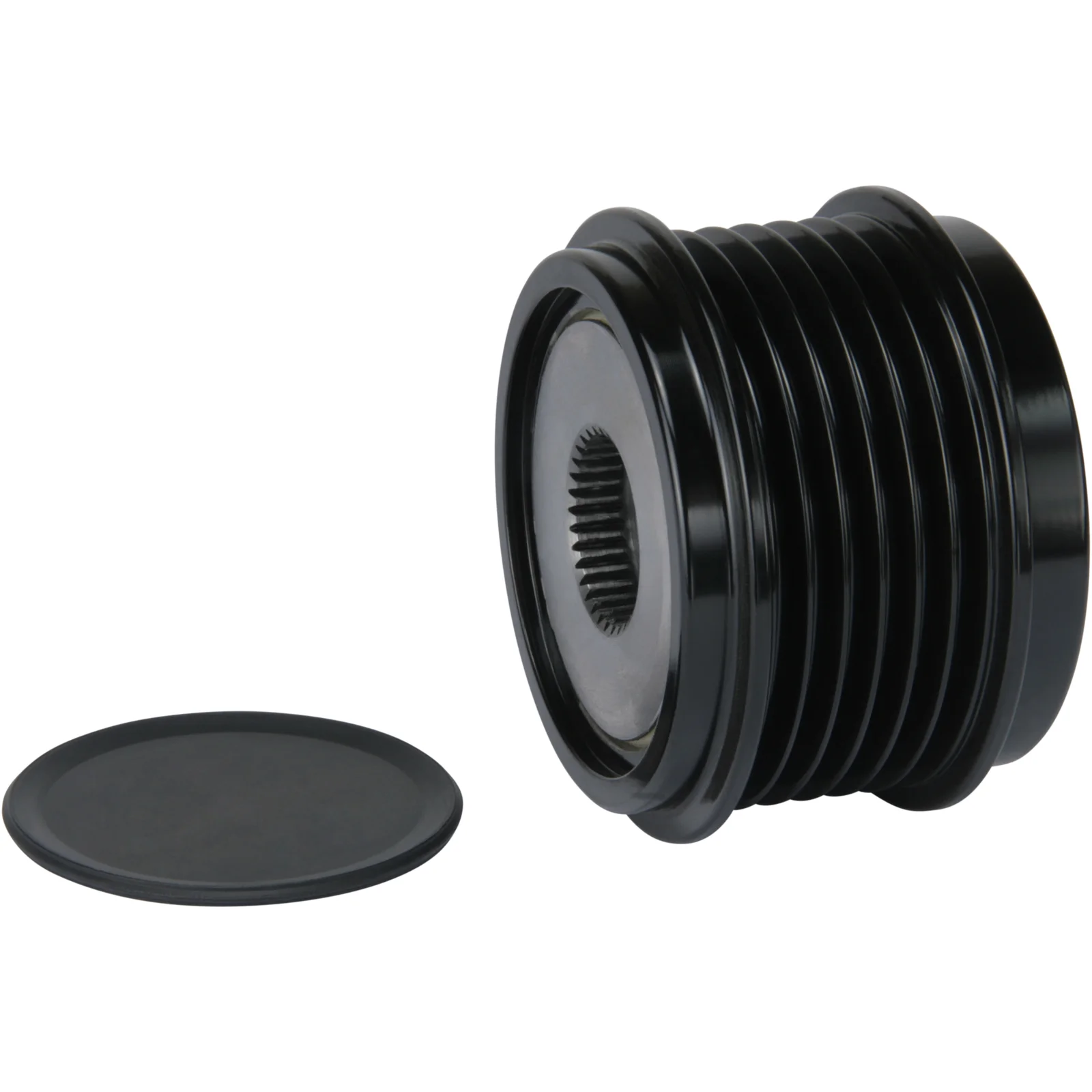

Pulley

Technical info:

OD mm: 56.00, Width 1 mm: 41.60, Bore diameter: 17.00, Thread size: M16-1.50

Description

OD mm: 56.00
Width 1 mm: 41.60
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 10.50
Dist./back: 0.50
Pulley type: OAD
Grooves: 6
Belt type: Multi Belt
Free run: w/
Measurement 1. groove: 14.50
Remarks: Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.

Files

  • OEM
    F00M147910, F00M591111, F00M991277, F00M992742, F032333074, 06H903119B, 06H903201C, 86-42-61, 354061, 920851, 535021010

  • Normalised article numbler
    afp0075, afp0075litens, f00m147910, f00m591111, f00m991277, f00m992742, f032333074, 06h903119b, 06h903201c, 354061, 864261, 920851, 535021010
  • Description
    OD mm: 56.00
    Width 1 mm: 41.60
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 10.50
    Dist./back: 0.50
    Pulley type: OAD
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    Measurement 1. groove: 14.50
    Remarks: Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.

    Files

  • Suitable for these vehicles

    • OEM
      F00M147910, F00M591111, F00M991277, F00M992742, F032333074, 06H903119B, 06H903201C, 86-42-61, 354061, 920851, 535021010

    • Normalised article numbler
      afp0075, afp0075litens, f00m147910, f00m591111, f00m991277, f00m992742, f032333074, 06h903119b, 06h903201c, 354061, 864261, 920851, 535021010
