Article no.: F032333084

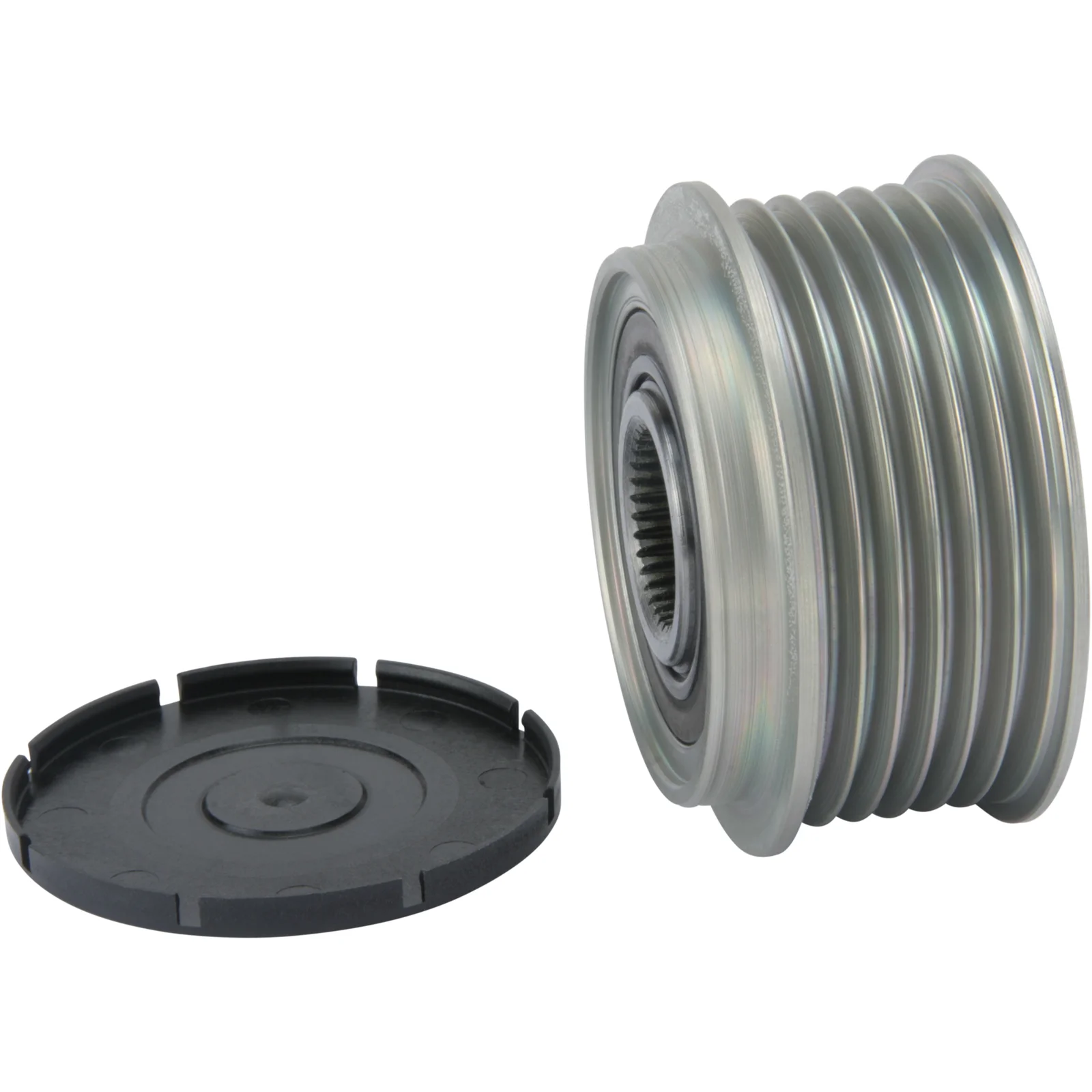

Pulley

Technical info:

Rotation: CW, OD mm: 60.00, Width 1 mm: 37.80, Bore diameter: 17.00

Description

Rotation: CW
OD mm: 60.00
Width 1 mm: 37.80
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 14.40
Dist./back: 4.30
Pulley type: SP/FW
Grooves: 6
Belt type: Multi Belt
Free run: with
ID/bearing mm: N/A
Measurement 1. groove: 8.90
Pulley: N/A
Source: N/A

Files

  • OEM
    F-240026.01, F-240026.02, F-240026.03, F-240026.04, F-240026.05, F032333084, 354411, 2655545, 535013510

  • Normalised article numbler
    afp3033ina, afp3033v, f032333084, f24002601, f24002602, f24002603, f24002604, f24002605, 354411, 2655545, 535013510
  • Description
    Rotation: CW
    OD mm: 60.00
    Width 1 mm: 37.80
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 14.40
    Dist./back: 4.30
    Pulley type: SP/FW
    Grooves: 6
    Belt type: Multi Belt
    Free run: with
    ID/bearing mm: N/A
    Measurement 1. groove: 8.90
    Pulley: N/A
    Source: N/A

    Files

  • Suitable for these vehicles

    • OEM
      F-240026.01, F-240026.02, F-240026.03, F-240026.04, F-240026.05, F032333084, 354411, 2655545, 535013510

    • Normalised article numbler
      afp3033ina, afp3033v, f032333084, f24002601, f24002602, f24002603, f24002604, f24002605, 354411, 2655545, 535013510
