Article no.: F032333337

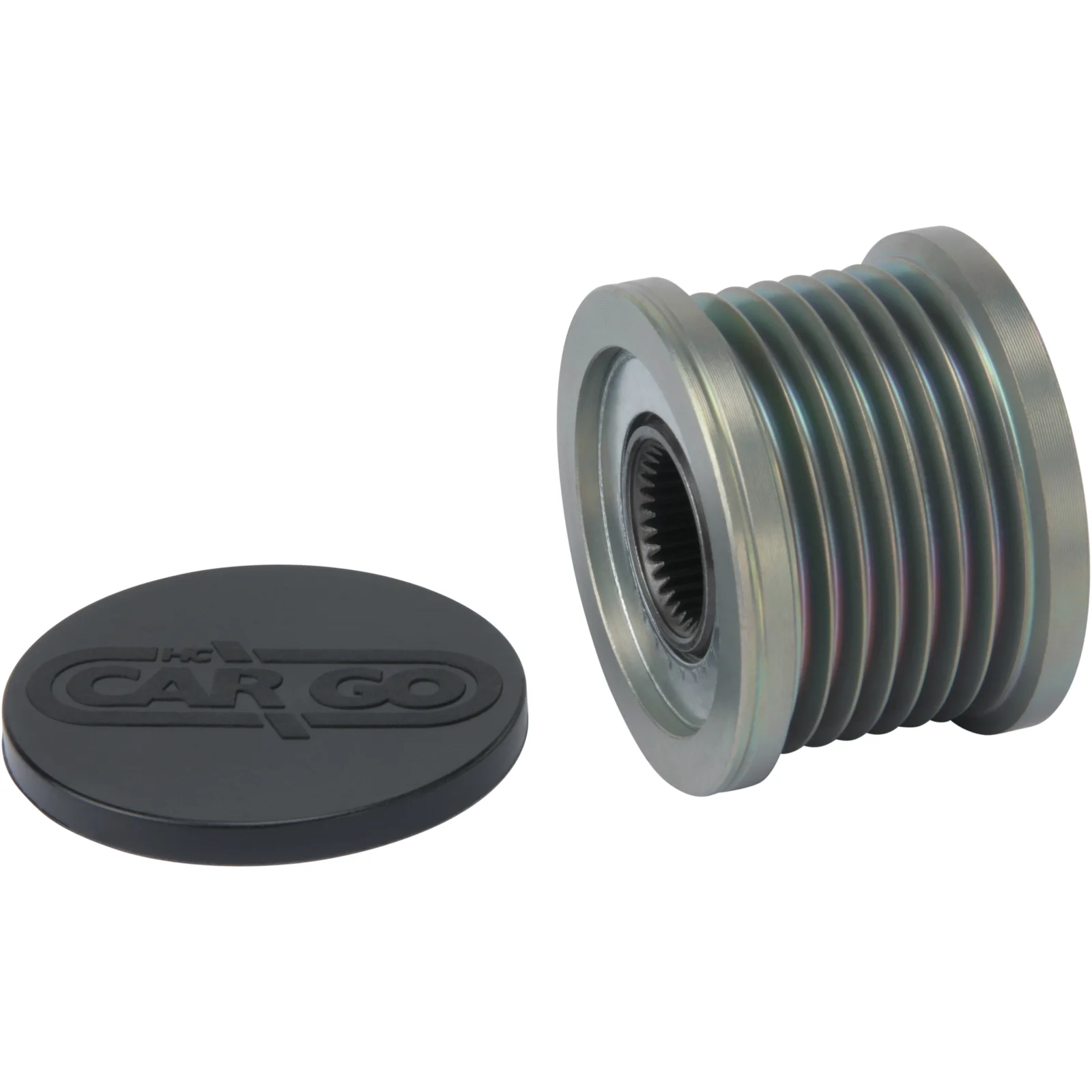

Pulley

Technical info:

Rotation: CW, OD mm: 49.00, Width 1 mm: 38.30, Bore diameter: 17.00

Description

Rotation: CW
OD mm: 49.00
Width 1 mm: 38.30
Bore diameter: 17.00
Thread size: M16-1.50
Depth mm: 11.10
Distance/back: 0.40
Pulley type: SP/FW
Grooves: 7
Belt type: Multi Belt
Free run: with
ID/bearing mm: N/A
Measurement 1. groove: 8.00
Pulley: N/A
Remarks: Pulley tool: HC-CARGO 210843.

Files

  • OEM
    f-238512.02, f-238512.03, f-238512.05, f-238512.06, f-238512.5, F00M147807, F00M147831, F00M147936, F00M991216, f00m991231, F00M991293, F032333337, 5492, 5350081000, 7701062985

  • Normalised article numbler
    afp0058, f00m147807, f00m147831, f00m147936, f00m991216, f00m991231, f00m991293, f032333337, f23851202, f23851203, f23851205, f23851206, f2385125, 5492, 5350081000, 7701062985
  • Description
    Rotation: CW
    OD mm: 49.00
    Width 1 mm: 38.30
    Bore diameter: 17.00
    Thread size: M16-1.50
    Depth mm: 11.10
    Distance/back: 0.40
    Pulley type: SP/FW
    Grooves: 7
    Belt type: Multi Belt
    Free run: with
    ID/bearing mm: N/A
    Measurement 1. groove: 8.00
    Pulley: N/A
    Remarks: Pulley tool: HC-CARGO 210843.

    Files

  • Suitable for these vehicles

    • OEM
      f-238512.02, f-238512.03, f-238512.05, f-238512.06, f-238512.5, F00M147807, F00M147831, F00M147936, F00M991216, f00m991231, F00M991293, F032333337, 5492, 5350081000, 7701062985

    • Normalised article numbler
      afp0058, f00m147807, f00m147831, f00m147936, f00m991216, f00m991231, f00m991293, f032333337, f23851202, f23851203, f23851205, f23851206, f2385125, 5492, 5350081000, 7701062985
