Article no.: F032333426

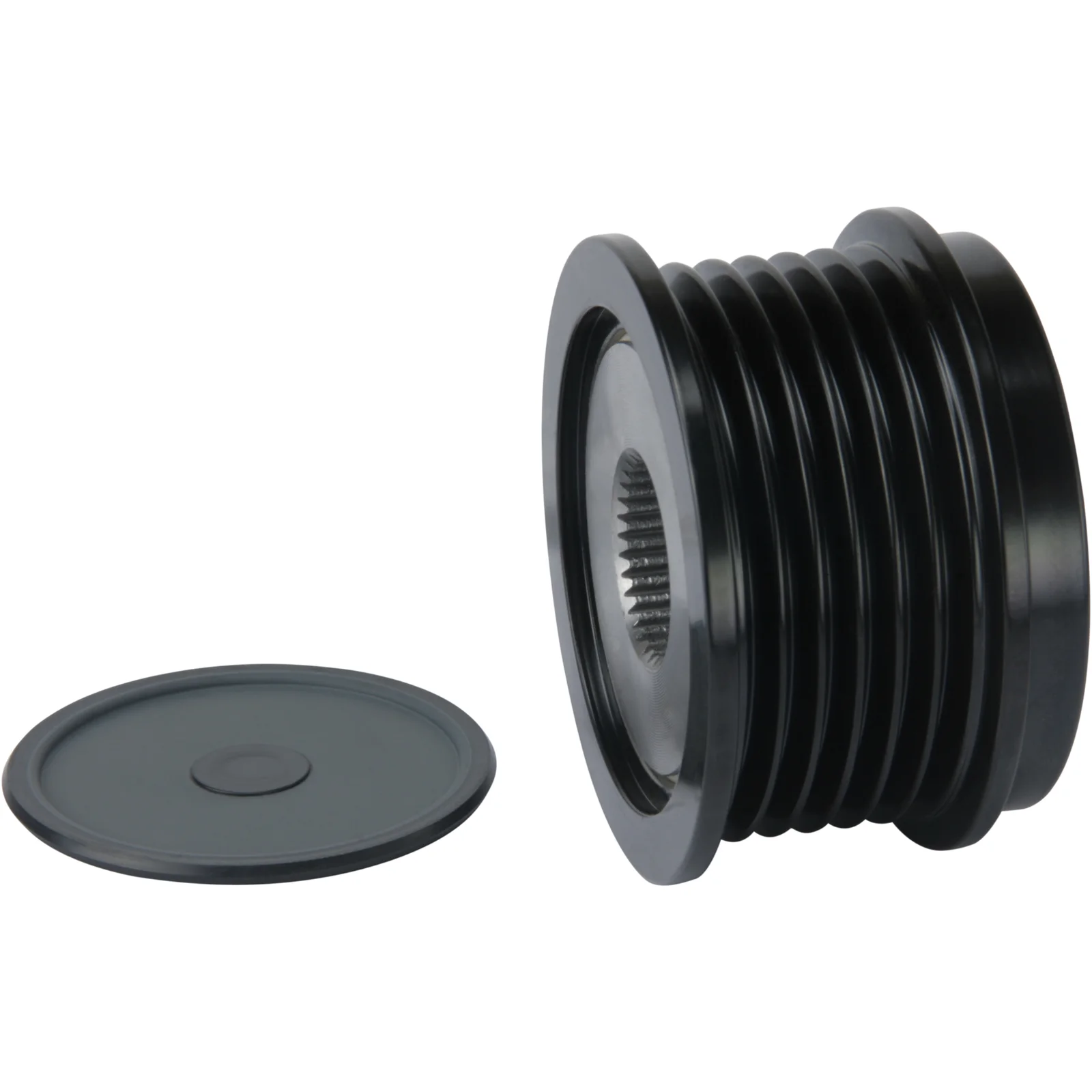

Pulley

Technical info:

Rotation: CW, OD mm: 53.50, Width 1 mm: 40.10, Bore diameter: 17.00

Description

Rotation: CW
OD mm: 53.50
Width 1 mm: 40.10
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 15.30
Dist./back: 4.10
Pulley type: OAD
Grooves: 6
Belt type: Multi Belt
Free run: w/
Measurement 1. groove: 16.30
Remarks: Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.

Files

  • OEM
    AV6Q10A352BA, F032333426, 333426, 595441, 920006, 535023610

  • Normalised article numbler
    afp3038litens, av6q10a352ba, f032333426, 333426, 595441, 920006, 535023610
  • Description
    Rotation: CW
    OD mm: 53.50
    Width 1 mm: 40.10
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 15.30
    Dist./back: 4.10
    Pulley type: OAD
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    Measurement 1. groove: 16.30
    Remarks: Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.

    Files

  • Suitable for these vehicles

    • OEM
      AV6Q10A352BA, F032333426, 333426, 595441, 920006, 535023610

    • Normalised article numbler
      afp3038litens, av6q10a352ba, f032333426, 333426, 595441, 920006, 535023610
