Pulley
Pulley
Article no.: F032333687

Pulley

Technical info:

Rotation: CW, OD mm: 58.00, Width 1 mm: 44.80, Bore dia.: 17.00

Description

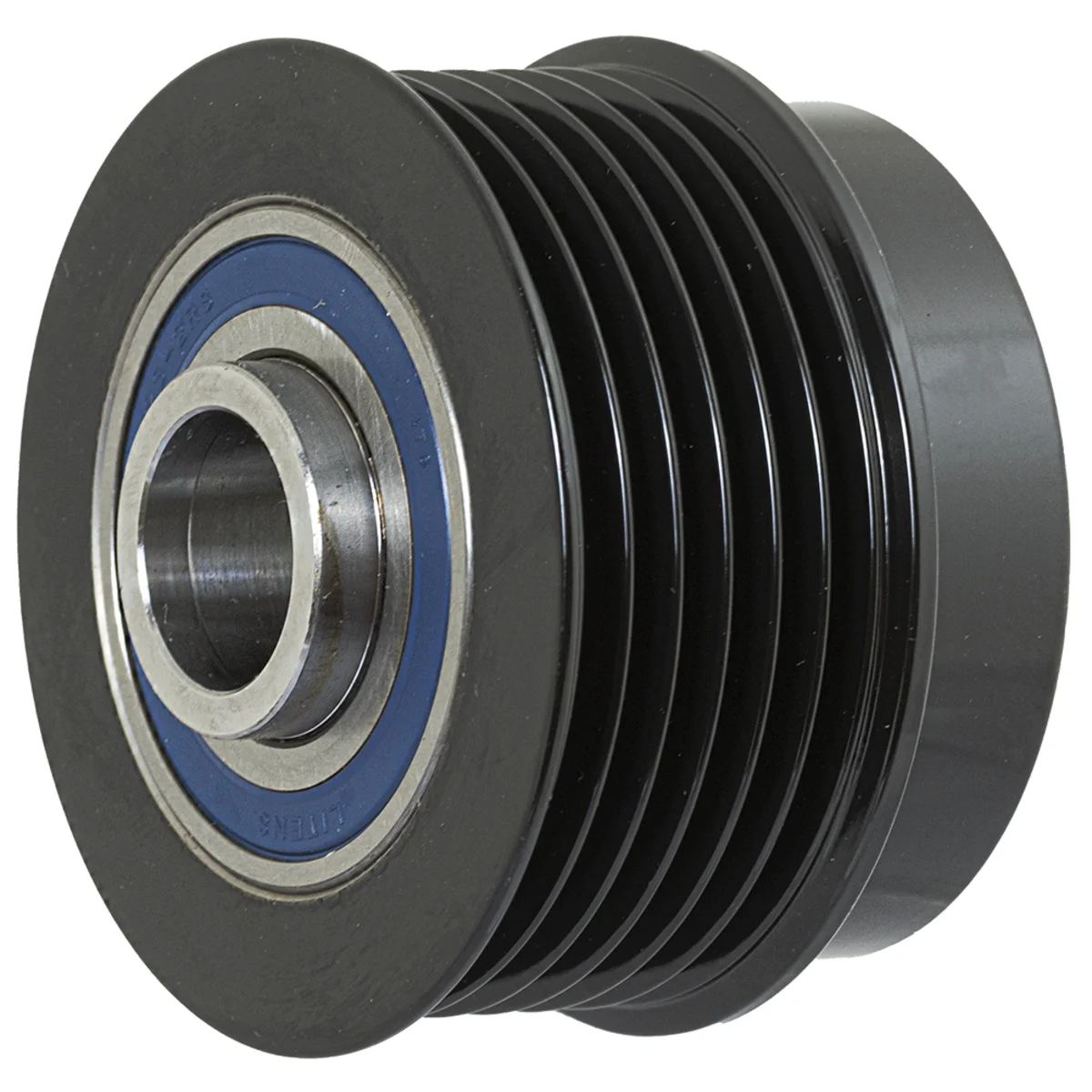

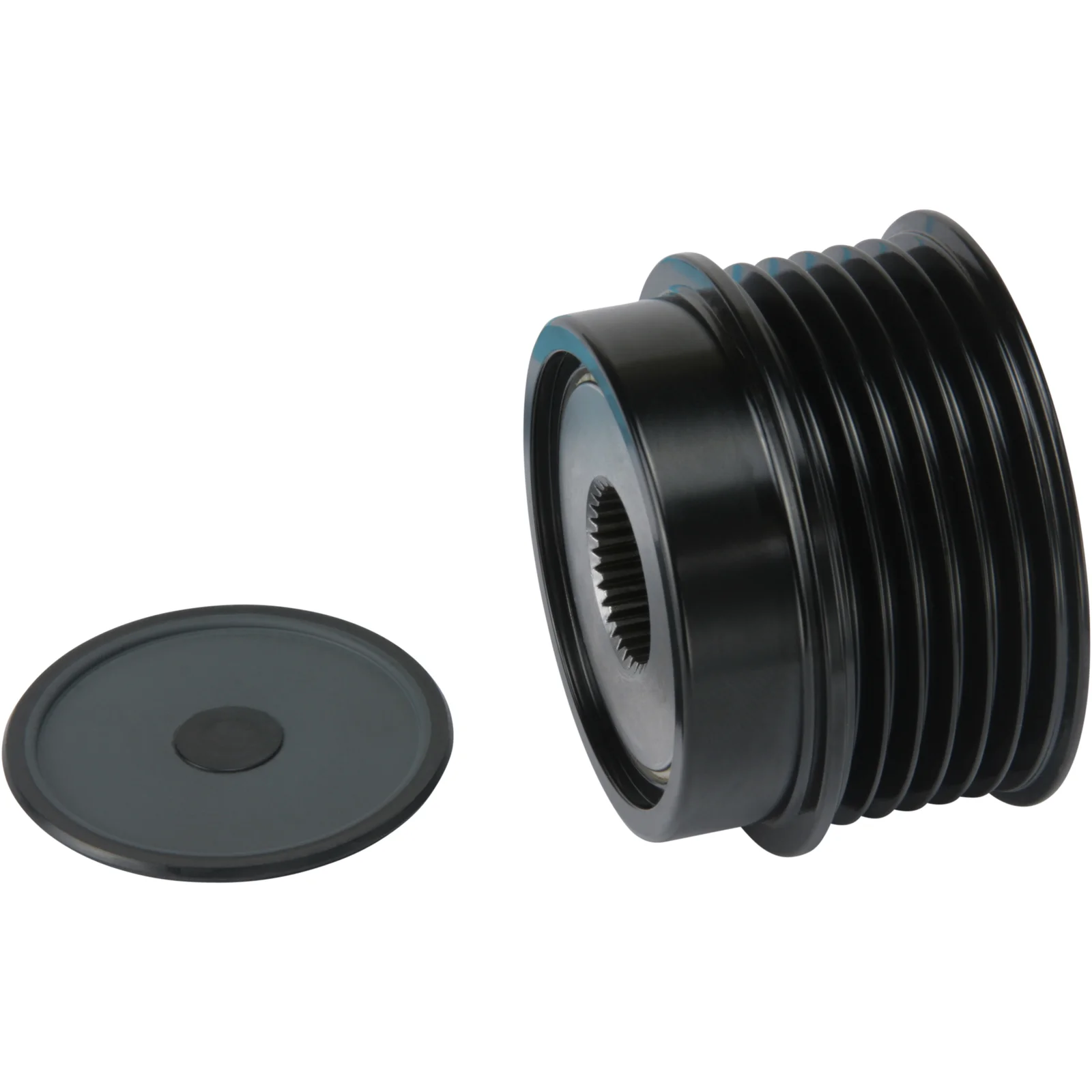

Release drive pulley 17x58x14.4mm 6 grooves, Width - 44.8mm 17x58x14.4mm

Rotation: CW
OD mm: 58.00
Width 1 mm: 44.80
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 14.40
Distance/back: 4.70
Pulley type: OAD
Grooves: 6
Belt type: Multi Belt
Free run: with
Measurement 1. groove: 8.90
Remarks: Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.

Files

  • OEM
    F032333687, LIT 920019, 535 0271 10, 37320-2B000, 920019, 53527110, 5350271010

  • Fits OEM
    37300-2E300

  • Normalised article numbler
    f032333687, lit920019, 373002e300, 373202b000, 920019, 53527110, 535027110, 5350271010
  • Description
    Release drive pulley 17x58x14.4mm 6 grooves, Width - 44.8mm 17x58x14.4mm

    Rotation: CW
    OD mm: 58.00
    Width 1 mm: 44.80
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 14.40
    Distance/back: 4.70
    Pulley type: OAD
    Grooves: 6
    Belt type: Multi Belt
    Free run: with
    Measurement 1. groove: 8.90
    Remarks: Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.

    Files

  • Suitable for these vehicles

    • OEM
      F032333687, LIT 920019, 535 0271 10, 37320-2B000, 920019, 53527110, 5350271010

    • Fits OEM
      37300-2E300

    • Normalised article numbler
      f032333687, lit920019, 373002e300, 373202b000, 920019, 53527110, 535027110, 5350271010
