Article no.: F032335253

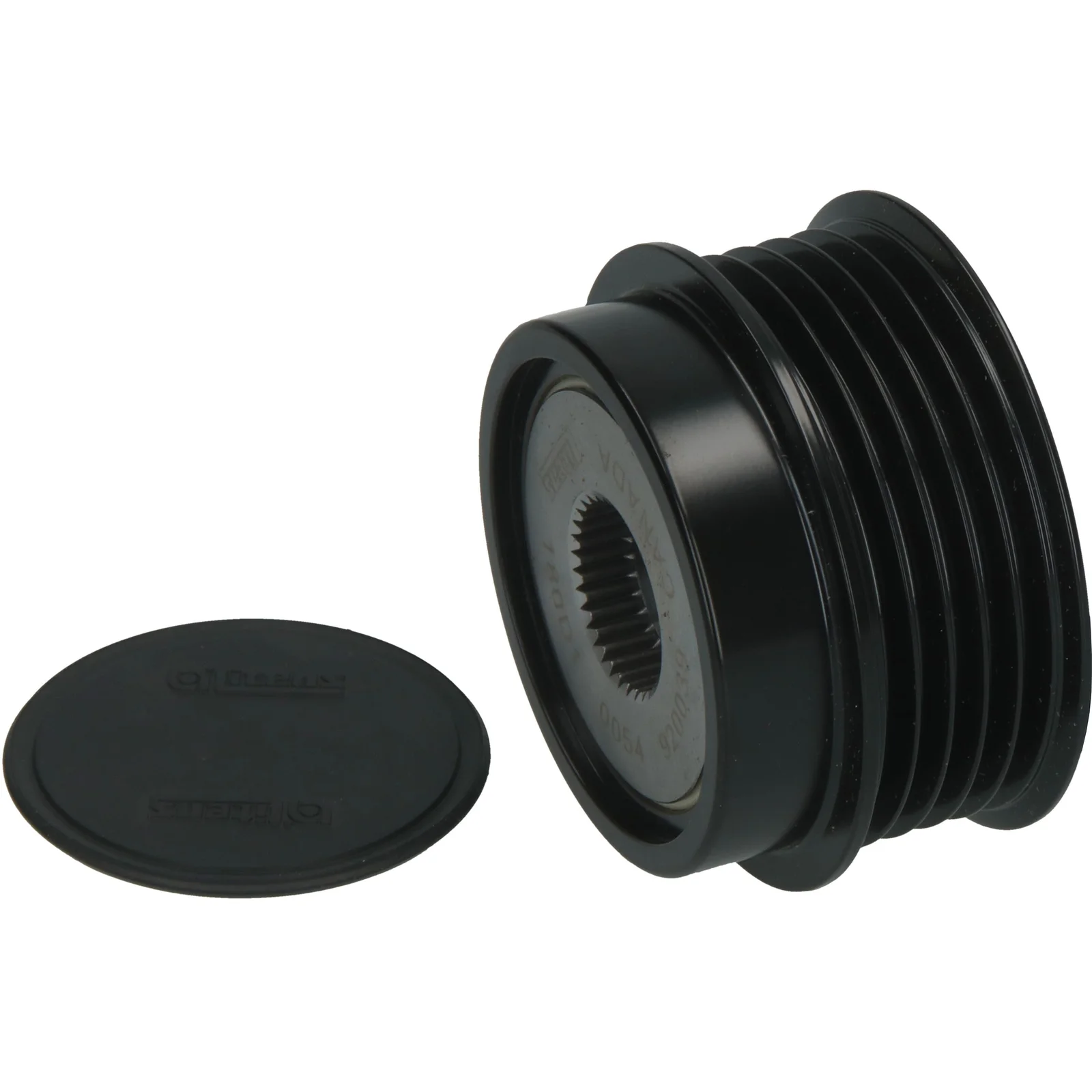

Pulley

Technical info:

Rotation: CW, Outer diameter mm: 58.00, Width 1 mm: 40.40, Bore diameter: 17.00

Description

Rotation: CW
OD mm: 58.00
Width 1 mm: 40.40
Bore dia.: 17.00
Thread size: M16-1.50
Dist./back: 4.50
Pulley type: OAD
Grooves: 5
Belt type: Multi Belt
Free run: w/
Measurement 1. groove: 8.50
Remarks: Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.

Files

  • Description
    Rotation: CW
    OD mm: 58.00
    Width 1 mm: 40.40
    Bore dia.: 17.00
    Thread size: M16-1.50
    Dist./back: 4.50
    Pulley type: OAD
    Grooves: 5
    Belt type: Multi Belt
    Free run: w/
    Measurement 1. groove: 8.50
    Remarks: Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.

    Files

  • Suitable for these vehicles
