Article no.: F032335268

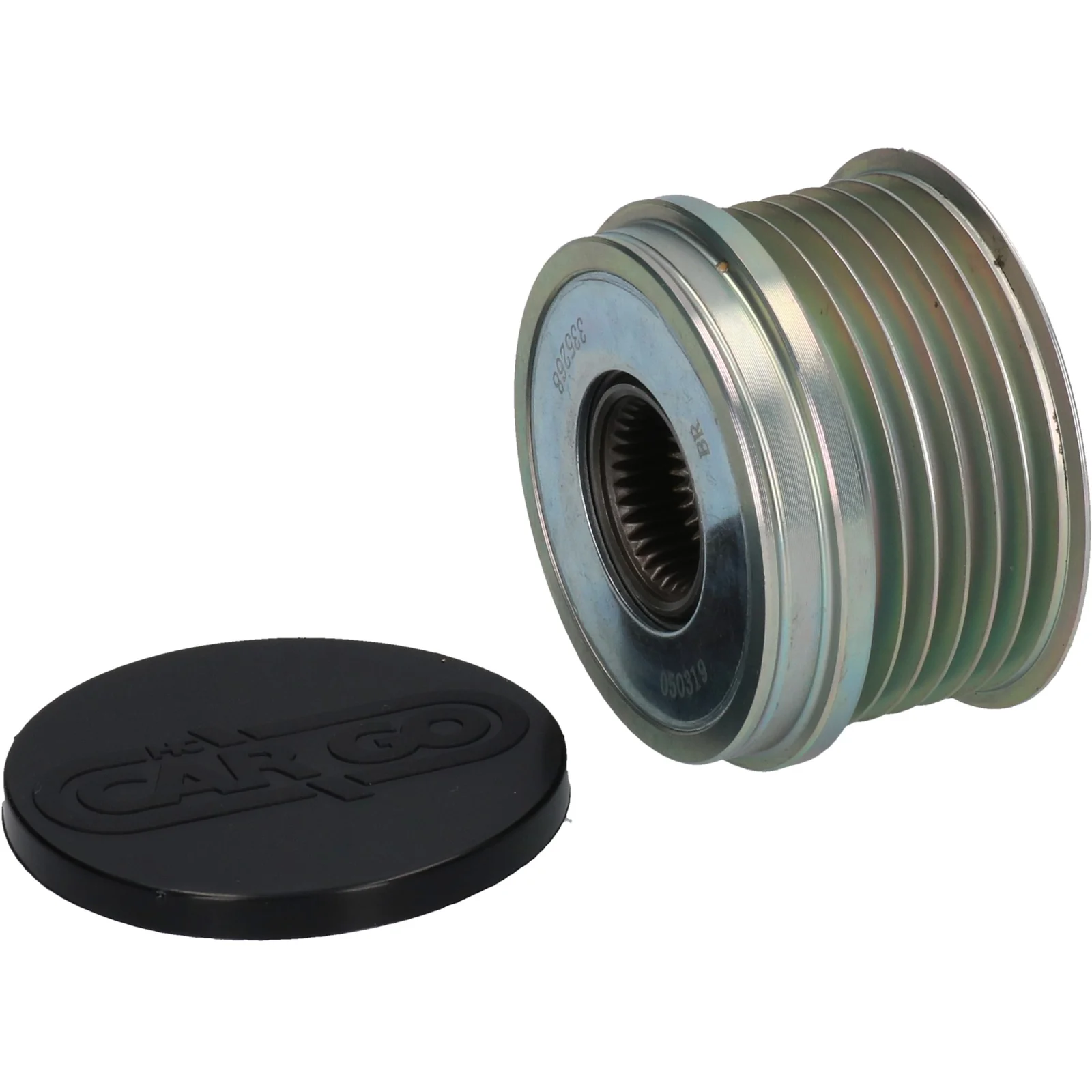

Pulley

Technical info:

Rotation: CW, OD mm: 54.00, Width 1 mm: 41.40, Bore diameter: 17.00

Description

Rotation: CW
OD mm: 54.00
Width 1 mm: 41.40
Bore diameter: 17.00
Thread size: M16-1.50
Depth mm: 14.00
Dist./back: 5.80
Pulley type: SP/FW
Grooves: 6
Belt type: Multi Belt
Free run: w/
Measurement 1. groove: 9.80

Files

  • OEM
    F-239807, F-563248, F-563248.01, F-563248.02, F-570802, F-570802.01, F-570802.02, F032335268, 5623, 354580, 354581, 588028, 702053, 1204177, 13258483, 535020310, 5350203000, 5350203010

  • Normalised article numbler
    afp3040, afp3045ina, afp3045s, f032335268, f239807, f563248, f56324801, f56324802, f570802, f57080201, f57080202, 5623, 354580, 354581, 588028, 702053, 1204177, 13258483, 535020310, 5350203000, 5350203010
  • Description
    Rotation: CW
    OD mm: 54.00
    Width 1 mm: 41.40
    Bore diameter: 17.00
    Thread size: M16-1.50
    Depth mm: 14.00
    Dist./back: 5.80
    Pulley type: SP/FW
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    Measurement 1. groove: 9.80

    Files

  • Suitable for these vehicles

    • OEM
      F-239807, F-563248, F-563248.01, F-563248.02, F-570802, F-570802.01, F-570802.02, F032335268, 5623, 354580, 354581, 588028, 702053, 1204177, 13258483, 535020310, 5350203000, 5350203010

    • Normalised article numbler
      afp3040, afp3045ina, afp3045s, f032335268, f239807, f563248, f56324801, f56324802, f570802, f57080201, f57080202, 5623, 354580, 354581, 588028, 702053, 1204177, 13258483, 535020310, 5350203000, 5350203010
