Article no.: F032335567

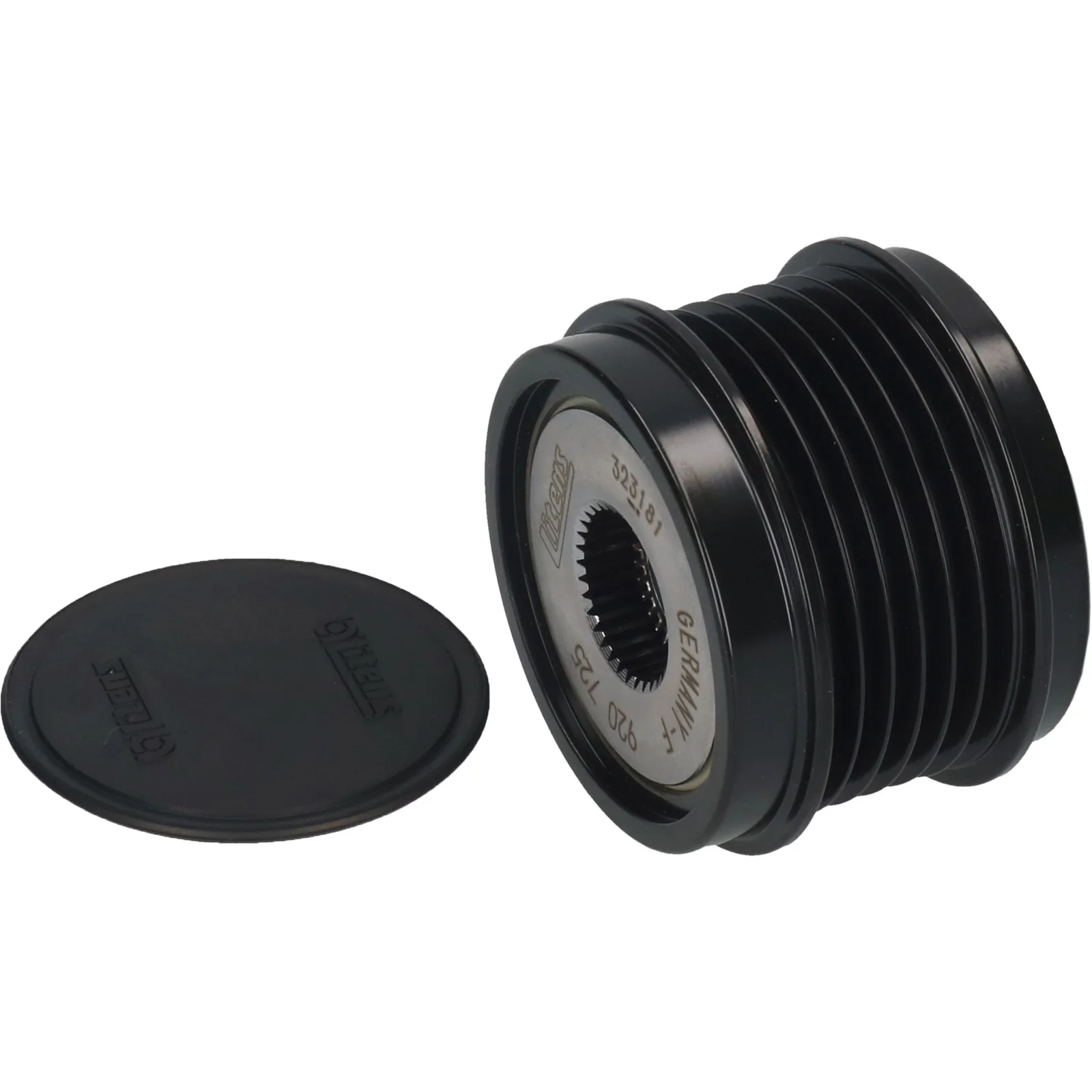

Pulley

Technical info:

OD mm: 54.00, Width 1 mm: 46.00, Bore dia.: 17.00, Thread size: M16-1.50

Description

OD mm: 54.00
Width 1 mm: 46.00
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 15.30
Dist./back: 4.00
Pulley type: OAD
Grooves: 6
Belt type: Multi Belt
Free run: w/
Measurement 1. groove: 15.00
Remarks: Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.

Files

  • Description
    OD mm: 54.00
    Width 1 mm: 46.00
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 15.30
    Dist./back: 4.00
    Pulley type: OAD
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    Measurement 1. groove: 15.00
    Remarks: Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.
