Article no.: F032337680

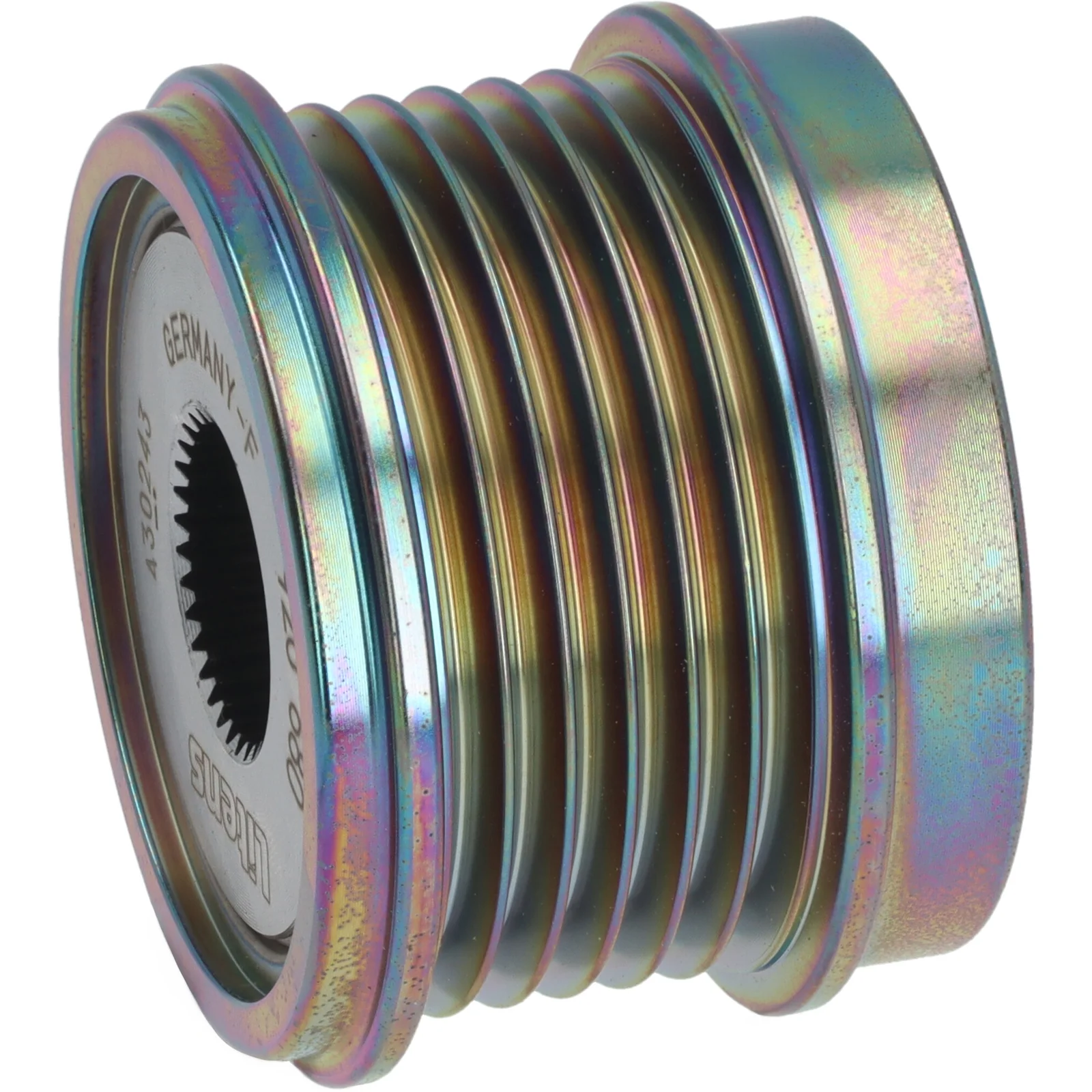

Pulley

Technical info:

Rotation: CW, OD mm: 52.00, Width 1 mm: 44.50, Bore diameter: 17.00

Description

Rotation: CW
OD mm: 52.00
Width 1 mm: 44.50
Bore dia.: 17.00
Thread size: M16-1.50
Depth mm: 10.40
Pulley type: OAD
Grooves: 6
Belt type: Multi Belt
Free run: w/
Measurement 1. groove: 14.60
Remarks: Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.

Files

  • OEM
    F032337680, 04L903219, 88-42-09, 920679, 920680, 535034310, 535036410

  • Normalised article numbler
    afp0119litens, ccp90314as, f032337680, 04l903219, 884209, 920679, 920680, 535034310, 535036410
  • Description
    Rotation: CW
    OD mm: 52.00
    Width 1 mm: 44.50
    Bore dia.: 17.00
    Thread size: M16-1.50
    Depth mm: 10.40
    Pulley type: OAD
    Grooves: 6
    Belt type: Multi Belt
    Free run: w/
    Measurement 1. groove: 14.60
    Remarks: Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.

    Files

  • Suitable for these vehicles

    • OEM
      F032337680, 04L903219, 88-42-09, 920679, 920680, 535034310, 535036410

    • Normalised article numbler
      afp0119litens, ccp90314as, f032337680, 04l903219, 884209, 920679, 920680, 535034310, 535036410
