Side marker lightning LED orange
Side marker lightning LED orange
Article no.: 85-500-1232

Side marker lightning LED orange

Technical info:

12V/24V, 36W, ECE R10/65, Slim type, 20 pattern

Description

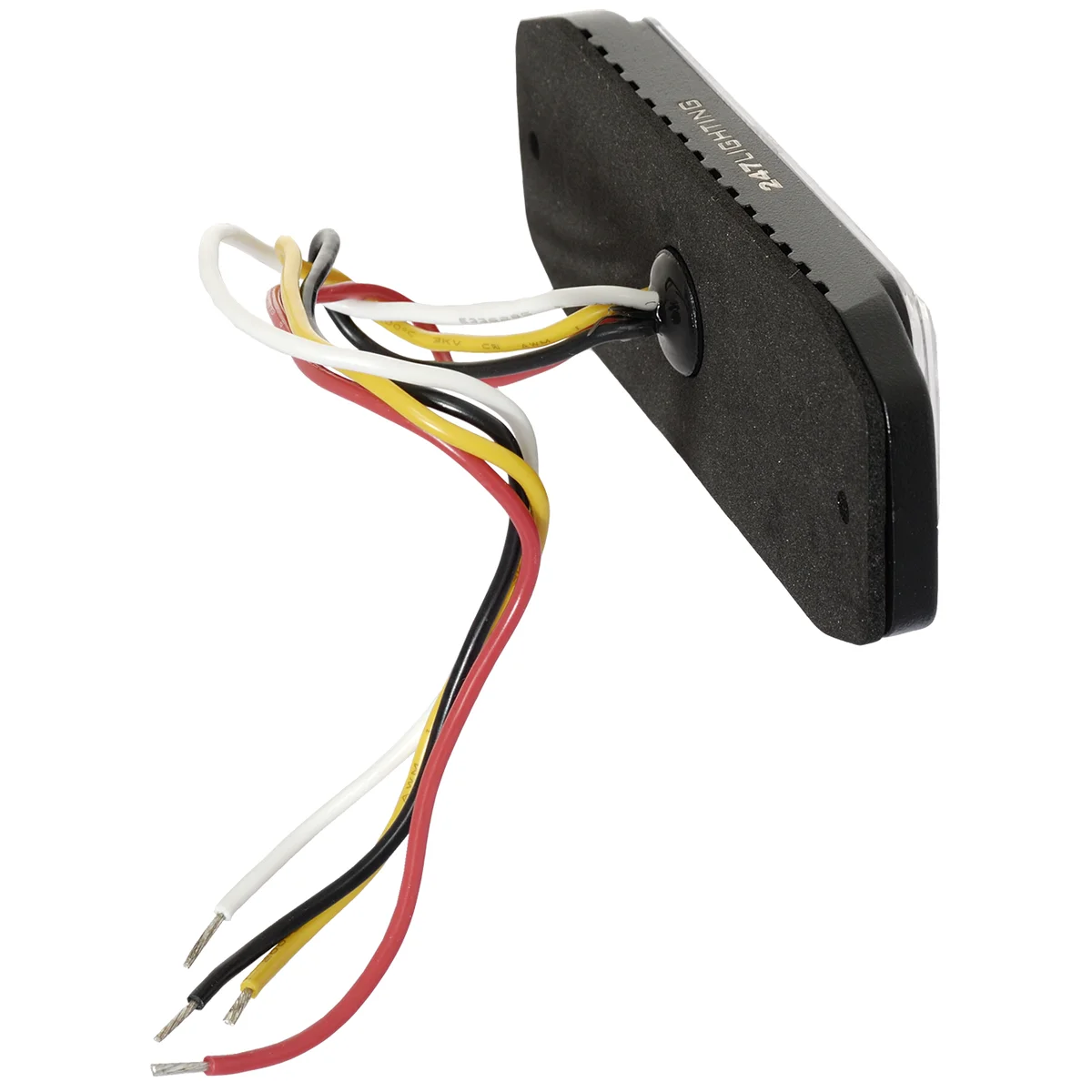

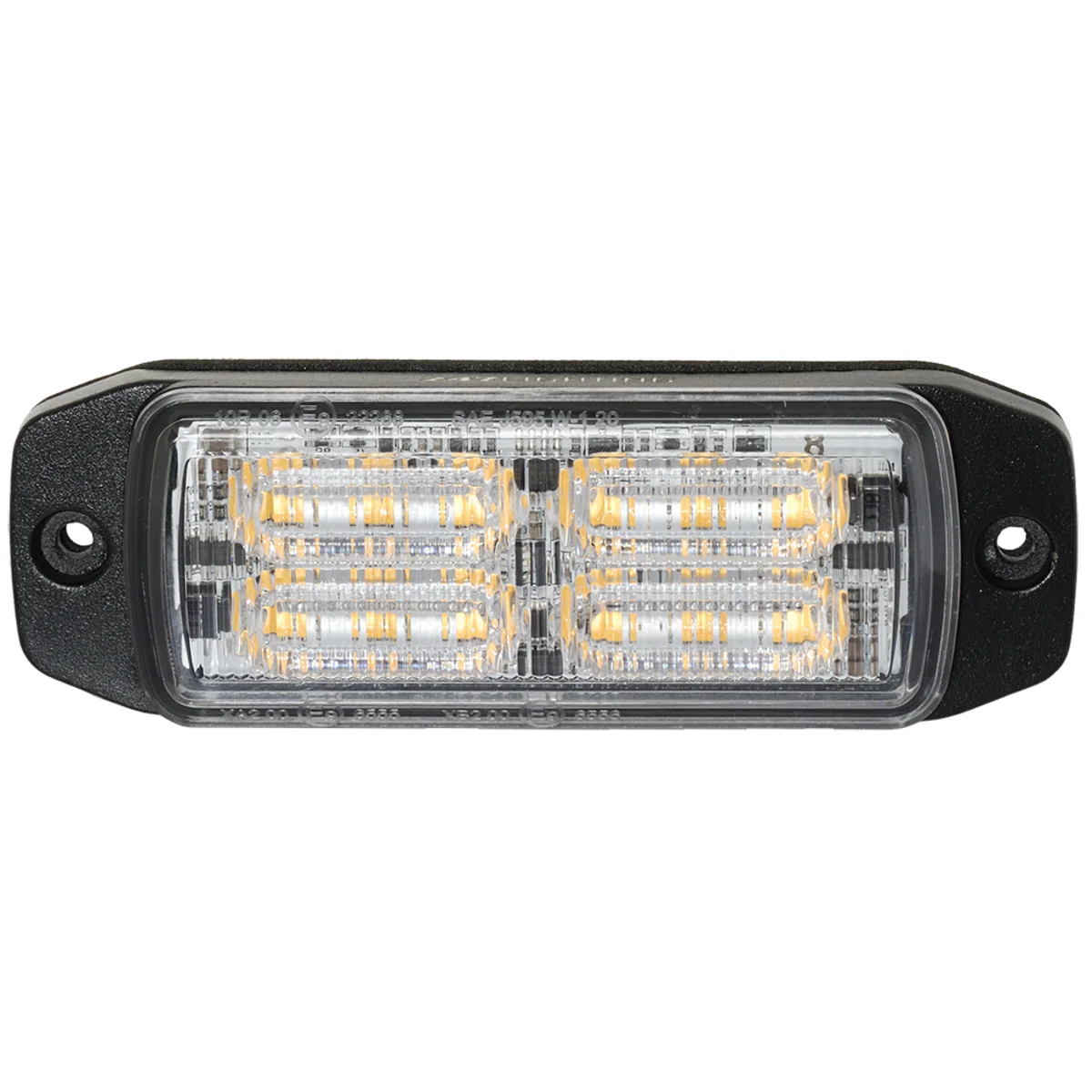

Side marker light LED Flashlight Orange 12V/24V, 36W, ECE R10/65, Slim type, 20 pattern L108mm x W36mm, D12mm. Hole spacing 95mm. 36W (12 x 3W), 12 LEDs/ Amber, Rated IP69K, Nominal Current@ 12V: 1.4A, Nominal Current@ 24V: 0.7A, 20 Flash Patterns, PC Lens (Clear)/ Aluminium Base Surface / Screw Mount, 200mm Cable 95mm Bolt Distance (3.5mm), ECE Approved Reg 10 / Reg 65 (Class 2), Operating Temp.: -45°C to +60°C

Files

  • Description
    Side marker light LED Flashlight Orange 12V/24V, 36W, ECE R10/65, Slim type, 20 pattern L108mm x W36mm, D12mm. Hole spacing 95mm. 36W (12 x 3W), 12 LEDs/ Amber, Rated IP69K, Nominal Current@ 12V: 1.4A, Nominal Current@ 24V: 0.7A, 20 Flash Patterns, PC Lens (Clear)/ Aluminium Base Surface / Screw Mount, 200mm Cable 95mm Bolt Distance (3.5mm), ECE Approved Reg 10 / Reg 65 (Class 2), Operating Temp.: -45°C to +60°C

    Files

  • Suitable for these vehicles
