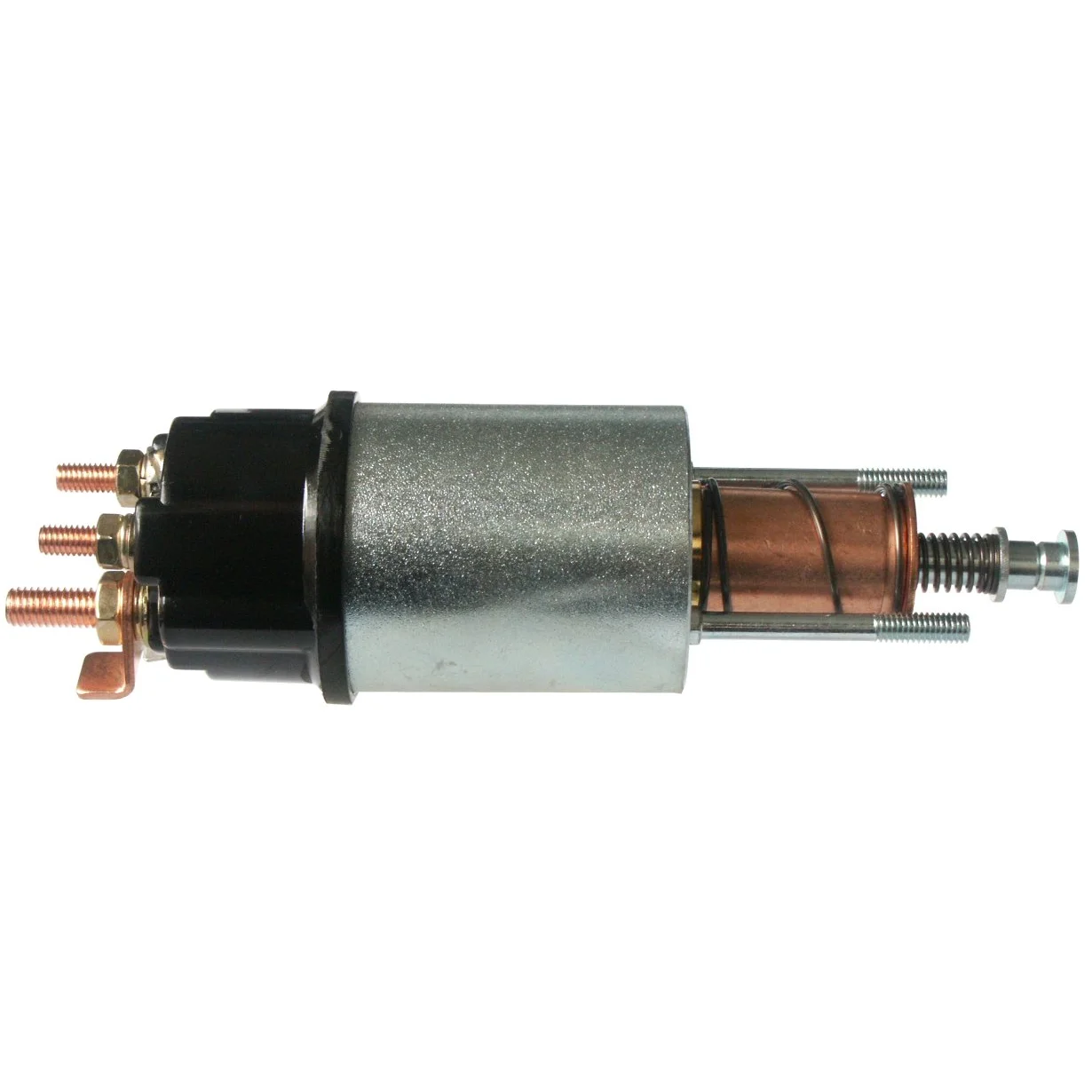

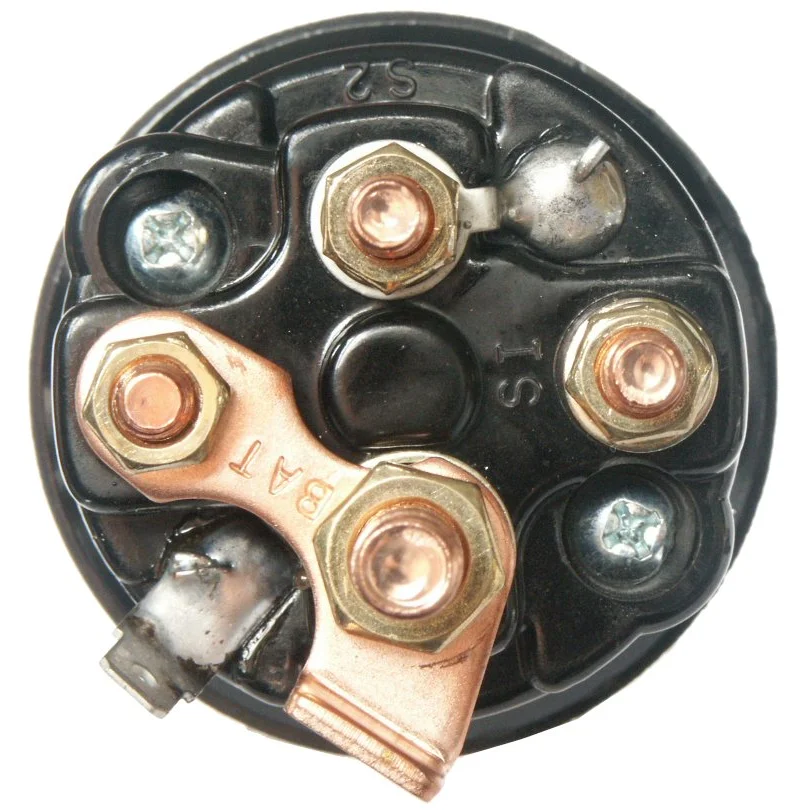

Solenoid
Article no.: F032131248

Solenoid

Technical info:

Voltage: 12, OD mm: 55.00, Total length mm: 129.00, No./mount. holes: 2

Description

Solenoid

Voltage: 12
OD mm: 55.00
Total length mm: 129.00
No./mount. holes: 2
Length mm: 93.10
B+: M8
Height/B+: 22.50
Terminal 50/mm: 6.30
Coil bolt: M6
Coil bolt l.: 18.00
No./terminals: 4
Servicing: M50
Remarks: Cap: HC-CARGO 131275.

Files

  • OEM
    D4NN11390B, D7NN11390B, F032131248, SSL0013, tob108, tob110, tob111, tob129, tob133, tob179, tob184, ZM 610, 610, 714-03004, 2701E11390A, 27228A, 76740, 76753, 76756, 76781, 76825, 76833, 76834, 76835, 76836, 76854, 76862, 76864, 76865, 76869, 76881, 76900, 76910, 76911, 76912, 76913, 76928, 76956, 77010, 77025, 77032, 77052, 3206518R2, 3473937M91, 83912208

  • Normalised article numbler
    d4nn11390b, d7nn11390b, f032131248, f042010313, f042s10313, snd1409, snls334, ss4006, ss707, ssl0013, tob108, tob110, tob111, tob129, tob133, tob179, tob184, zm610, 610, 2701e11390a, 7840, 20000, 27228a, 033514, 76740, 76753, 76756, 76781, 76825, 76833, 76834, 76835, 76836, 76854, 76862, 76864, 76865, 76869, 76881, 76900, 76910, 76911, 76912, 76913, 76928, 76956, 77010, 77025, 77032, 77052, 669207, 669209, 3206518r2, 3473937m91, 6692095, 71403004, 83912208
  • Description
    Solenoid

    Voltage: 12
    OD mm: 55.00
    Total length mm: 129.00
    No./mount. holes: 2
    Length mm: 93.10
    B+: M8
    Height/B+: 22.50
    Terminal 50/mm: 6.30
    Coil bolt: M6
    Coil bolt l.: 18.00
    No./terminals: 4
    Servicing: M50
    Remarks: Cap: HC-CARGO 131275.

    Files

  • Suitable for these vehicles

    • OEM
      D4NN11390B, D7NN11390B, F032131248, SSL0013, tob108, tob110, tob111, tob129, tob133, tob179, tob184, ZM 610, 610, 714-03004, 2701E11390A, 27228A, 76740, 76753, 76756, 76781, 76825, 76833, 76834, 76835, 76836, 76854, 76862, 76864, 76865, 76869, 76881, 76900, 76910, 76911, 76912, 76913, 76928, 76956, 77010, 77025, 77032, 77052, 3206518R2, 3473937M91, 83912208

    • Normalised article numbler
      d4nn11390b, d7nn11390b, f032131248, f042010313, f042s10313, snd1409, snls334, ss4006, ss707, ssl0013, tob108, tob110, tob111, tob129, tob133, tob179, tob184, zm610, 610, 2701e11390a, 7840, 20000, 27228a, 033514, 76740, 76753, 76756, 76781, 76825, 76833, 76834, 76835, 76836, 76854, 76862, 76864, 76865, 76869, 76881, 76900, 76910, 76911, 76912, 76913, 76928, 76956, 77010, 77025, 77032, 77052, 669207, 669209, 3206518r2, 3473937m91, 6692095, 71403004, 83912208
