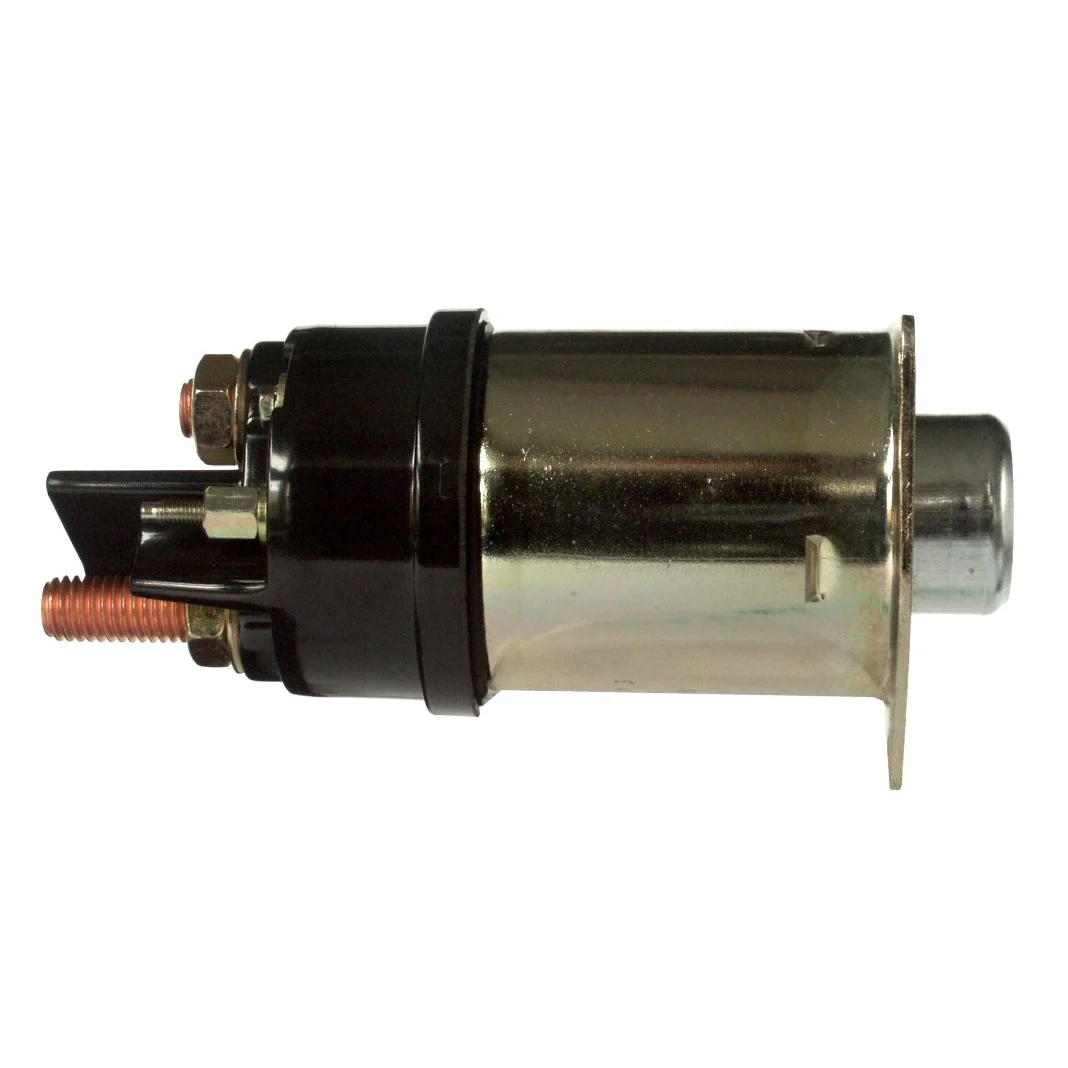

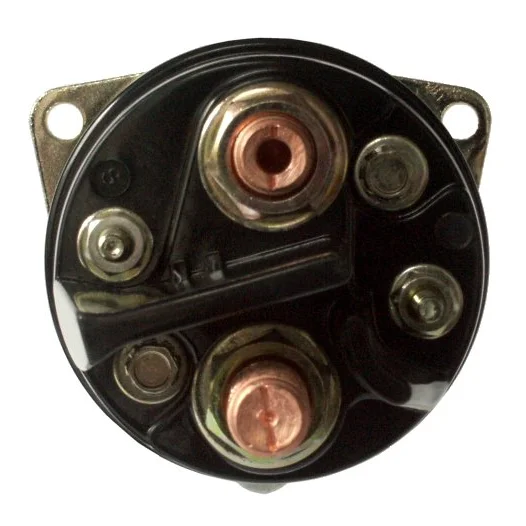

Solenoid
Article no.: F032231913

Solenoid

Technical info:

Voltage: 12, OD mm: 69.00, Total length mm: 160.00, No./mount. holes: 3

Description

Voltage: 12
OD mm: 69.00
Total length mm: 160.00
No./mount. holes: 3
B+: 1/2" UNC
Height/B+: 27.00
Terminal 50/mm: 10-32 UNF
Coil bolt: 1/2" UNC
Coil bolt l.: 9.00
No./terminals: 4
Servicing: 37MT
Remarks: Dummy Terminal: 10-32 UNF

Files

  • OEM
    d917a, F032231913, ZM 2-452, 2-452, 1115623

  • Normalised article numbler
    d917a, f032231913, f042010580, f042s10580, ss1136p, zm2452, 2452, 7960, 66148, 661481, 1115623
