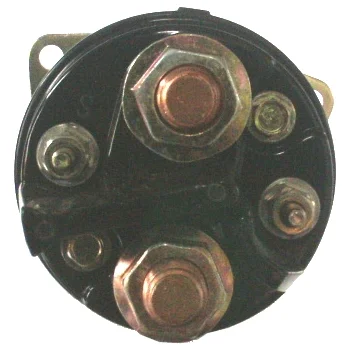

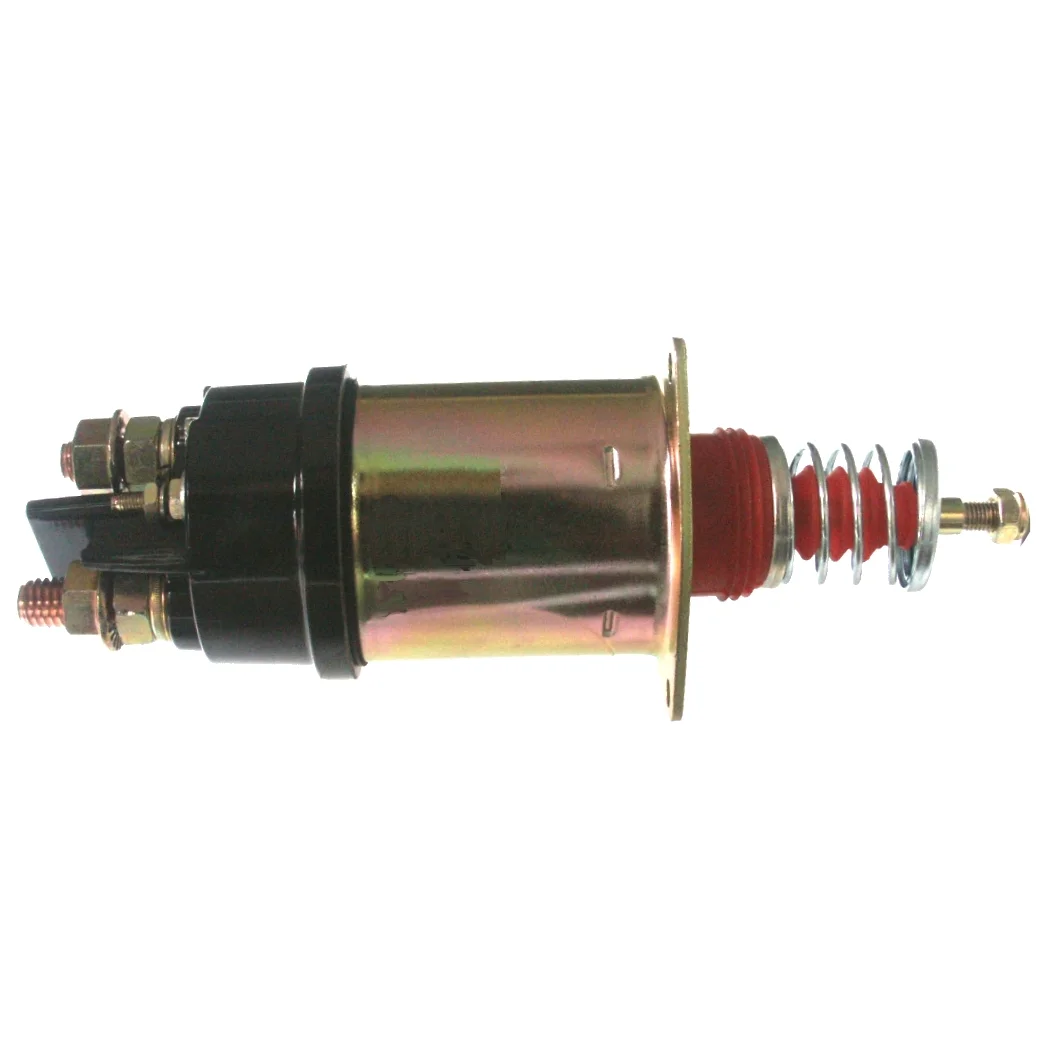

Solenoid
Solenoid
Article no.: F032233869

Solenoid

Technical info:

Voltage: 24, OD mm: 68.80, Total length mm: 157.00, No./mount. holes: 3

Description

Voltage: 24
OD mm: 68.80
Total length mm: 157.00
No./mount. holes: 3
B+: 1/2" UNC
Height/B+: 25.50
Terminal 15A/mm: 10-32 UNF
Terminal 15A/Width: 12.00
Terminal 50/mm: 10-32 UNF
Coil bolt: 1/2" UNC
Coil bolt l.: 18.00
No./terminals: 4
Servicing: 42MT
Remarks: Insulated return. Alternator cap: HC-CARGO 232033.

Files

  • Description
    Voltage: 24
    OD mm: 68.80
    Total length mm: 157.00
    No./mount. holes: 3
    B+: 1/2" UNC
    Height/B+: 25.50
    Terminal 15A/mm: 10-32 UNF
    Terminal 15A/Width: 12.00
    Terminal 50/mm: 10-32 UNF
    Coil bolt: 1/2" UNC
    Coil bolt l.: 18.00
    No./terminals: 4
    Servicing: 42MT
    Remarks: Insulated return. Alternator cap: HC-CARGO 232033.
