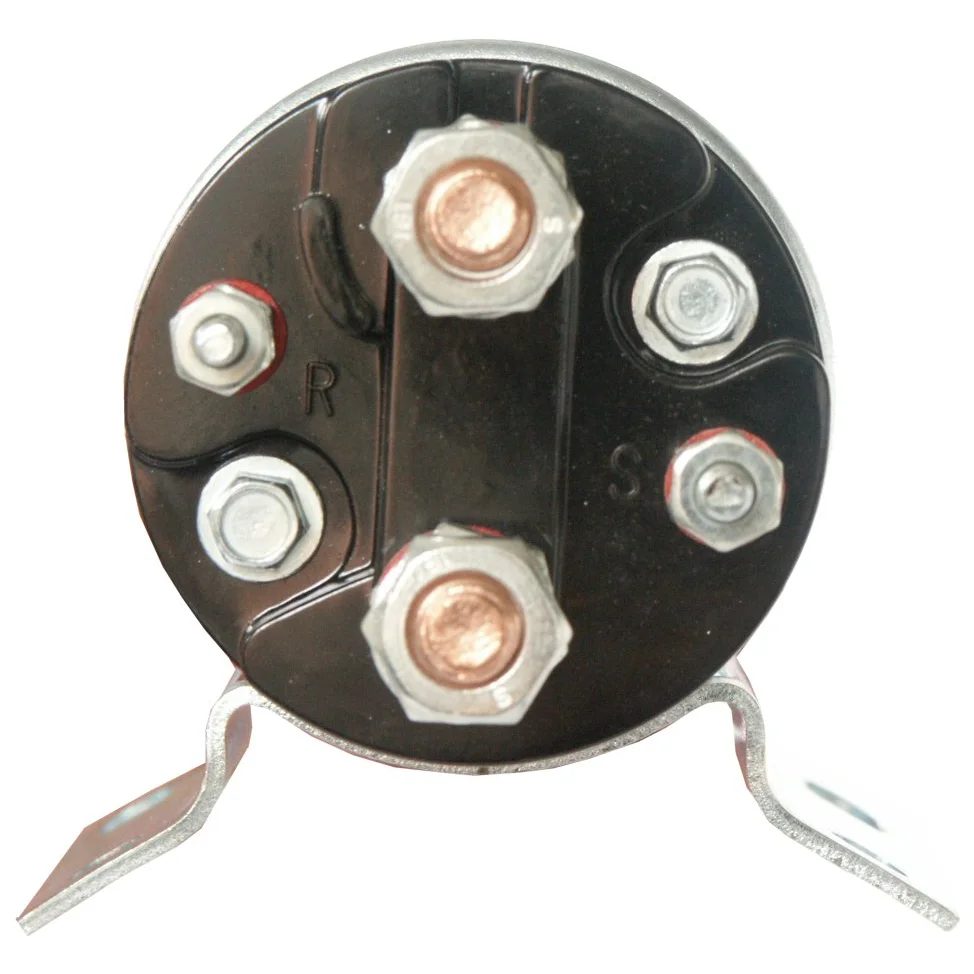

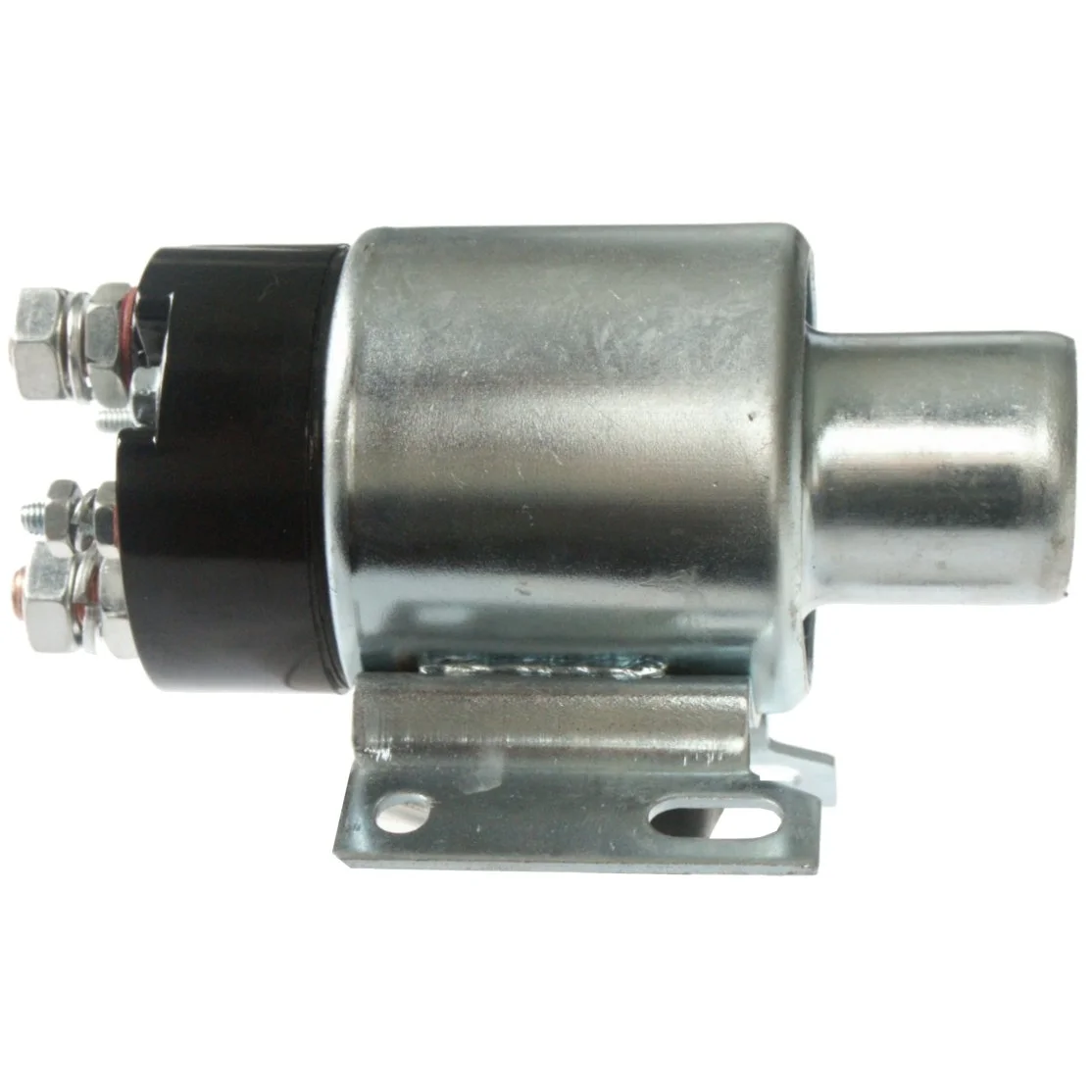

Solenoid
Article no.: F032130500

Solenoid

Technical info:

Voltage: 12, OD mm: 67.20, Total length mm: 153.00, No./mount. holes: 4

Description

Voltage: 12
OD mm: 67.20
Total length mm: 153.00
No./mount. holes: 4
B+: 3/8" UNC
Height/B+: 18.50
Terminal 15A/mm: 8-32 UNC
Terminal 15A/Width: 15.50
Terminal 50/mm: 10-32 UNF
Coil bolt: 3/8" UNC
Coil bolt l.: 19.50
No./terminals: 4
Servicing: 30MT

Files

  • OEM
    d954, d959, d970, d971, d980, F032130500, 321507, 1114365, 1115501, 1115508, 1115510, 1115529, 1115531, 1115540, 1119778, 1119833, 1119877, 1119882, 1119885, 1119890, 1119933, 1119935

  • Normalised article numbler
    d954, d959, d970, d971, d980, f032130500, f042010115, f042s10115, snd1163, snls148, 7951, 7951b, 66102, 321507, 1114365, 1115501, 1115508, 1115510, 1115529, 1115531, 1115540, 1119778, 1119833, 1119877, 1119882, 1119885, 1119890, 1119933, 1119935
  • Description
    Voltage: 12
    OD mm: 67.20
    Total length mm: 153.00
    No./mount. holes: 4
    B+: 3/8" UNC
    Height/B+: 18.50
    Terminal 15A/mm: 8-32 UNC
    Terminal 15A/Width: 15.50
    Terminal 50/mm: 10-32 UNF
    Coil bolt: 3/8" UNC
    Coil bolt l.: 19.50
    No./terminals: 4
    Servicing: 30MT

    Files

  • Suitable for these vehicles

    • OEM
      d954, d959, d970, d971, d980, F032130500, 321507, 1114365, 1115501, 1115508, 1115510, 1115529, 1115531, 1115540, 1119778, 1119833, 1119877, 1119882, 1119885, 1119890, 1119933, 1119935

    • Normalised article numbler
      d954, d959, d970, d971, d980, f032130500, f042010115, f042s10115, snd1163, snls148, 7951, 7951b, 66102, 321507, 1114365, 1115501, 1115508, 1115510, 1115529, 1115531, 1115540, 1119778, 1119833, 1119877, 1119882, 1119885, 1119890, 1119933, 1119935
