Solenoid

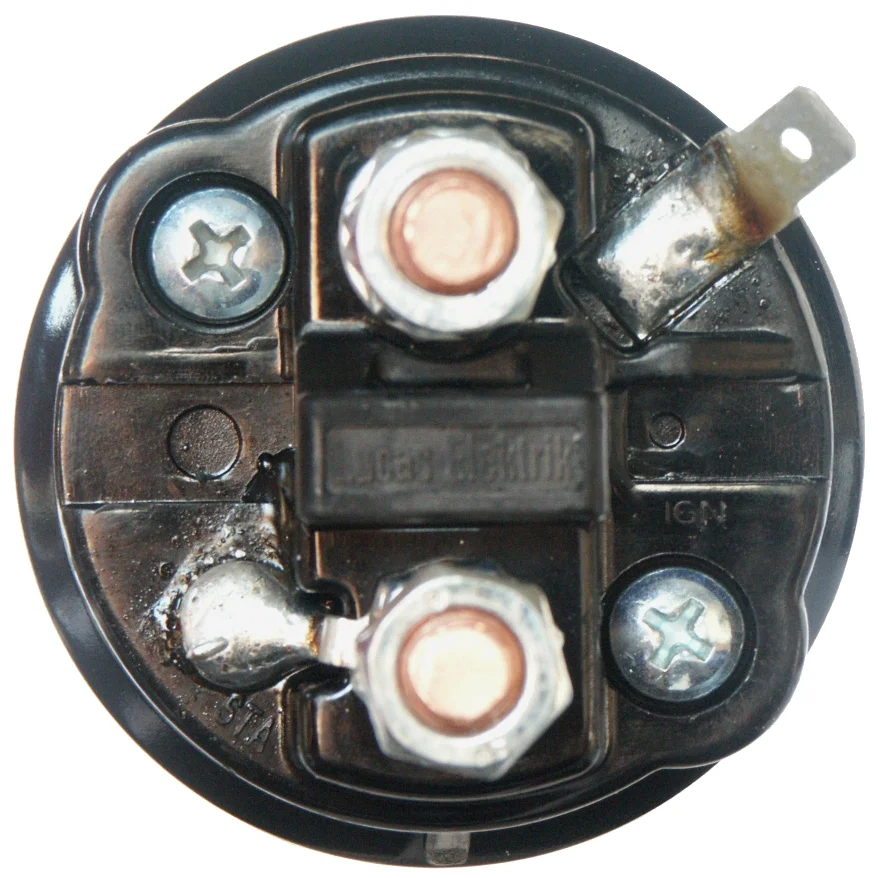

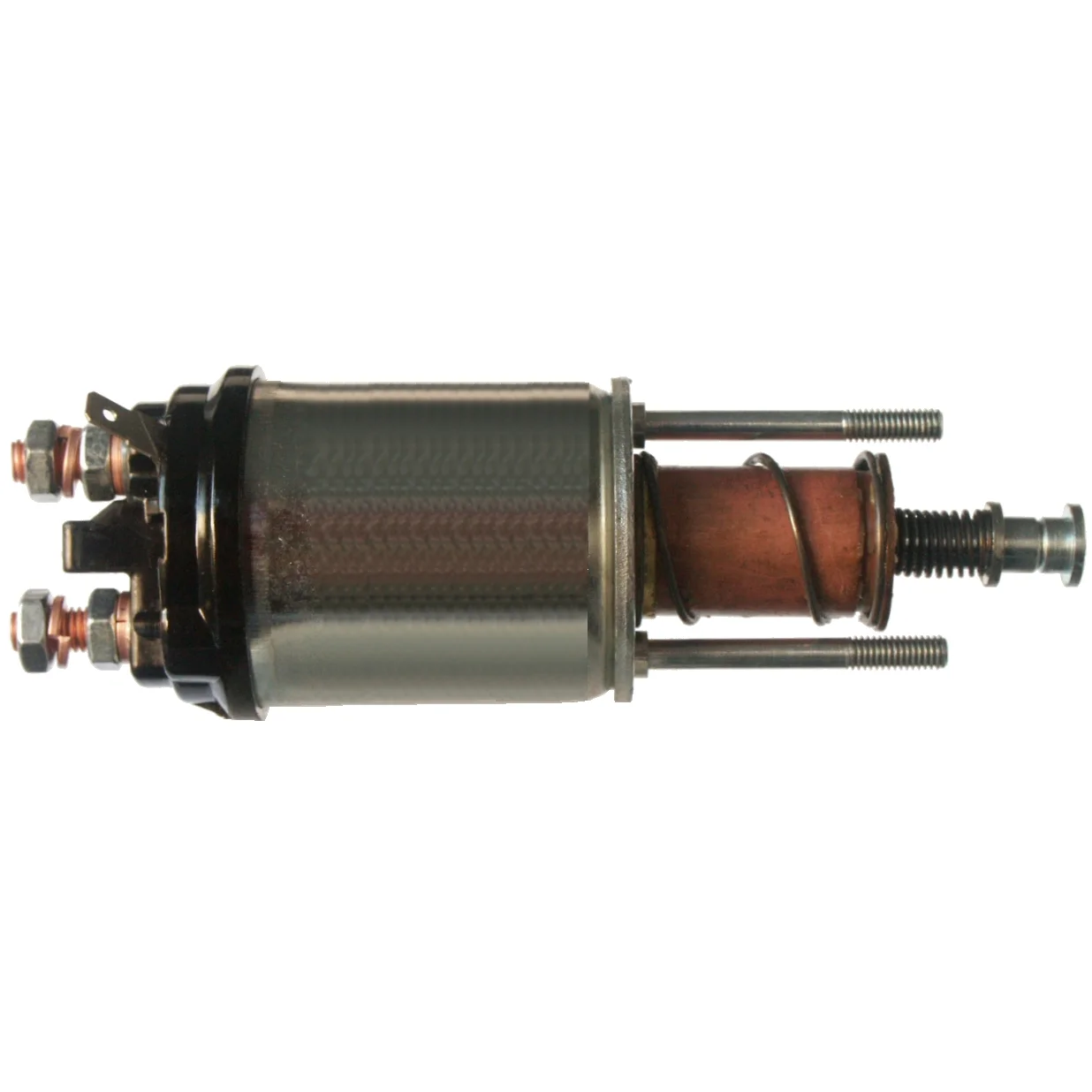

Solenoid
Article no.: F032132269

Solenoid

Technical info:

Voltage: 12, OD mm: 53.70, Total length mm: 104.00, No./mount. holes: 2

Description

Voltage: 12
OD mm: 53.70
Total length mm: 104.00
No./mount. holes: 2
Length mm: 93.50
B+: M8
Height/B+: 19.50
Terminal 50/mm: 6.30
Coil bolt: M8
Coil bolt l.: 19.50
No./terminals: 3
Servicing: M127
Remarks: Cap: HC-CARGO 131015.

Files

  • OEM
    F032132269, SSL0002, SSL0008, tob113, tob121, tob134, tpb107, 76804, 76816, 76821, 76852, 76895, 76896, 76899, 76908, 76961, 77035, 77134, 77154, 77157, 77899, 000076899010, 000077035010

  • Normalised article numbler
    f032132269, f042010317, f042s10317, snd1408, snls342, ss4007, ssl0002, ssl0008, tob113, tob121, tob134, tpb107, 76804, 76816, 76821, 76852, 76895, 76896, 76899, 76908, 76961, 77035, 77134, 77154, 77157, 77899, 000076899010, 000077035010
  • Description
    Voltage: 12
    OD mm: 53.70
    Total length mm: 104.00
    No./mount. holes: 2
    Length mm: 93.50
    B+: M8
    Height/B+: 19.50
    Terminal 50/mm: 6.30
    Coil bolt: M8
    Coil bolt l.: 19.50
    No./terminals: 3
    Servicing: M127
    Remarks: Cap: HC-CARGO 131015.

    Files

  • Suitable for these vehicles

    • OEM
      F032132269, SSL0002, SSL0008, tob113, tob121, tob134, tpb107, 76804, 76816, 76821, 76852, 76895, 76896, 76899, 76908, 76961, 77035, 77134, 77154, 77157, 77899, 000076899010, 000077035010

    • Normalised article numbler
      f032132269, f042010317, f042s10317, snd1408, snls342, ss4007, ssl0002, ssl0008, tob113, tob121, tob134, tpb107, 76804, 76816, 76821, 76852, 76895, 76896, 76899, 76908, 76961, 77035, 77134, 77154, 77157, 77899, 000076899010, 000077035010
