Solenoid
Solenoid
Article no.: F032231917

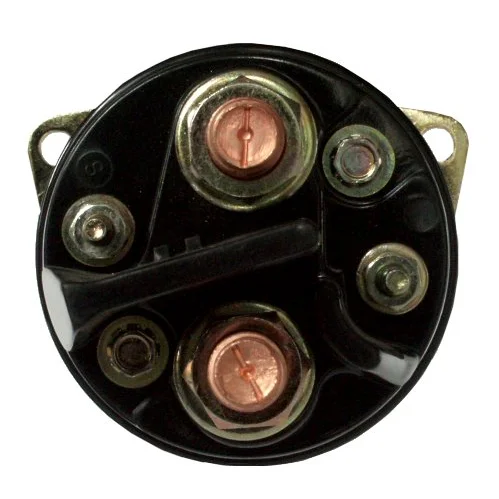

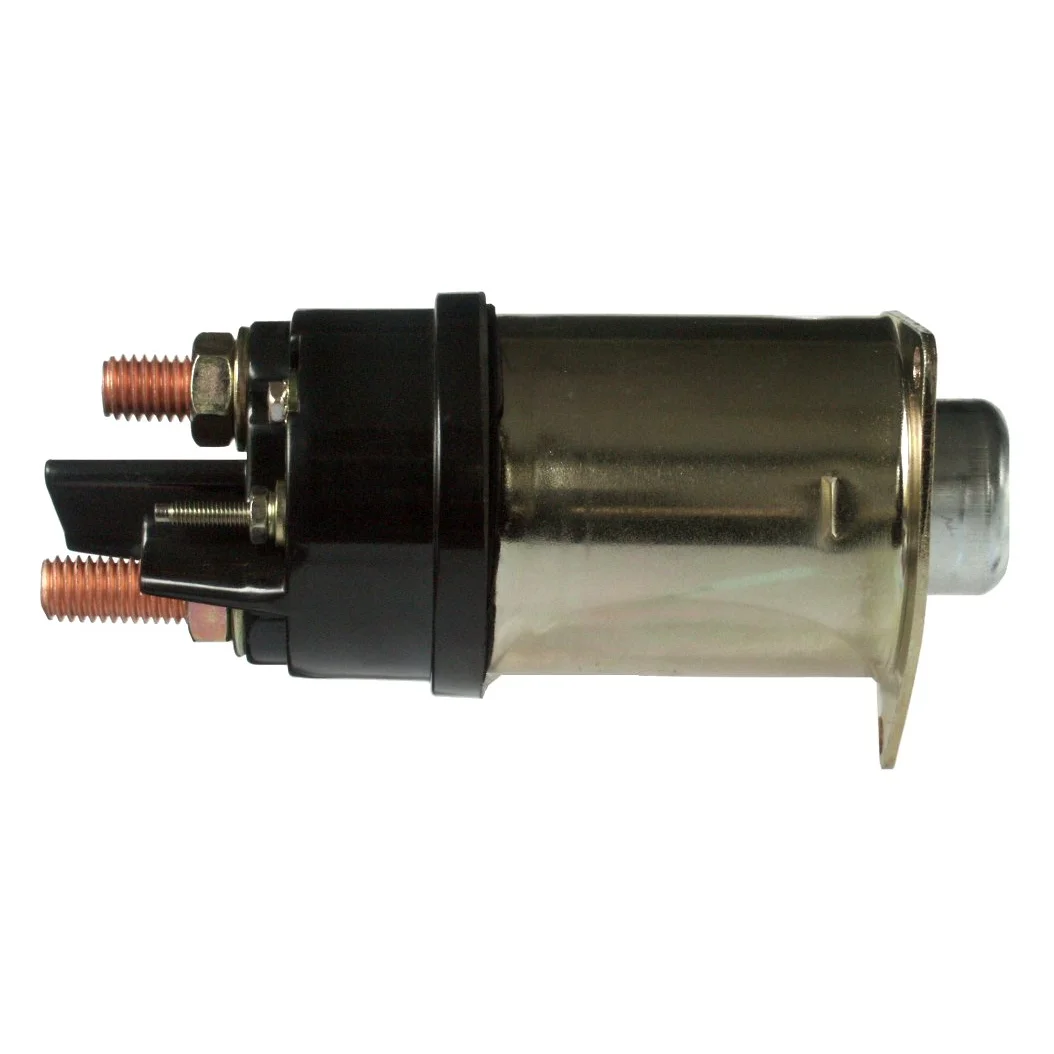

Solenoid

Technical info:

Voltage: 12, OD mm: 68.00, Total length mm: 160.00, No./mount. holes: 3

Description

Voltage: 12
OD mm: 68.00
Total length mm: 160.00
No./mount. holes: 3
Length mm: N/A
B+: 1/2" UNC
Terminal 15A/mm: 10-32 UNF
Terminal 50/mm: 10-32 UNF
Coil bolt: 1/2" UNC
No./terminals: 4
Servicing: 42MT
Remarks: Insulated return. Jump start protection cap.

Files

  • OEM
    d918a, F032231917, ZM 2-456, 2-456, 1115624, 1115656, 10511213

  • Normalised article numbler
    d918a, f032231917, f042010584, f042s10584, snd1263, snlsd42, ss1137p, zm2456, 2456, 20220, 66142, 71047, 661421, 1115624, 1115656, 10511213
  • Description
    Voltage: 12
    OD mm: 68.00
    Total length mm: 160.00
    No./mount. holes: 3
    Length mm: N/A
    B+: 1/2" UNC
    Terminal 15A/mm: 10-32 UNF
    Terminal 50/mm: 10-32 UNF
    Coil bolt: 1/2" UNC
    No./terminals: 4
    Servicing: 42MT
    Remarks: Insulated return. Jump start protection cap.

    Files

  • Suitable for these vehicles

    • OEM
      d918a, F032231917, ZM 2-456, 2-456, 1115624, 1115656, 10511213

    • Normalised article numbler
      d918a, f032231917, f042010584, f042s10584, snd1263, snlsd42, ss1137p, zm2456, 2456, 20220, 66142, 71047, 661421, 1115624, 1115656, 10511213
