Solenoid
Article no.: F032231927

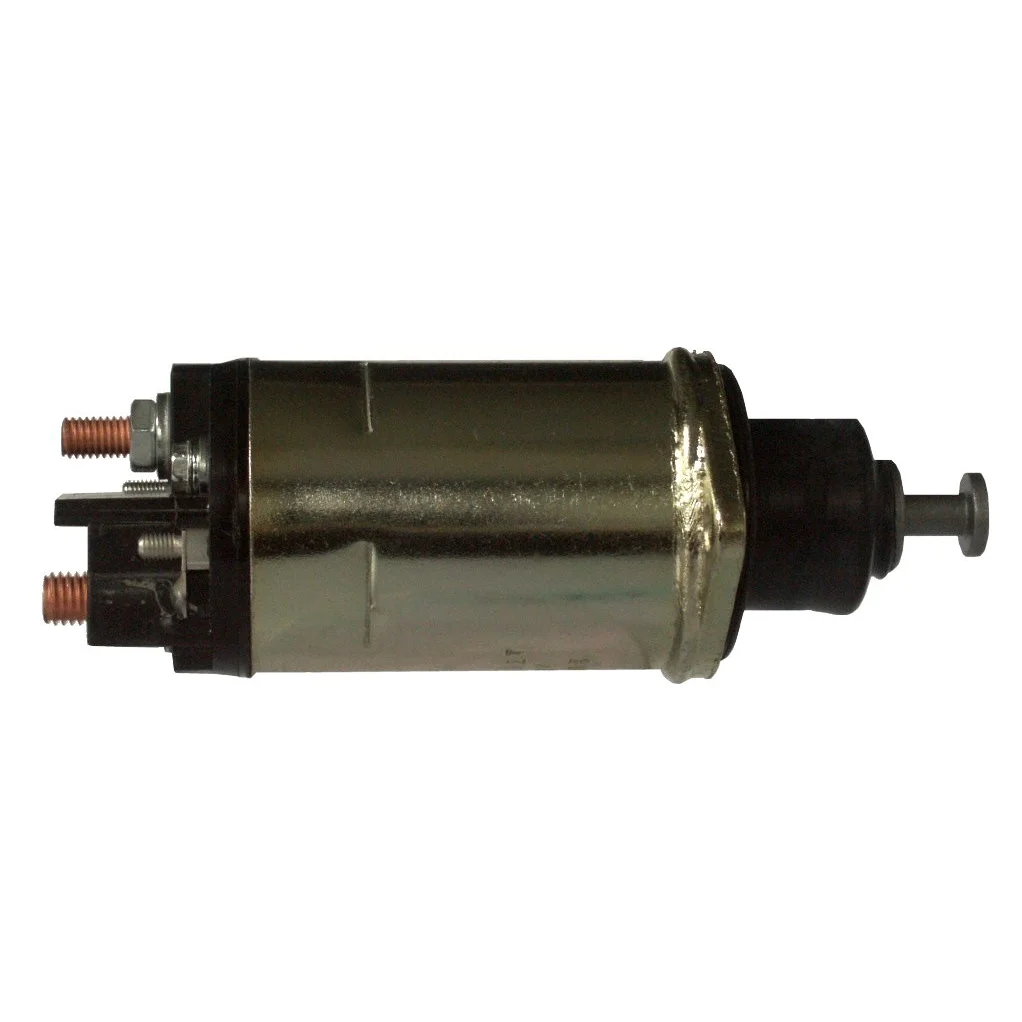

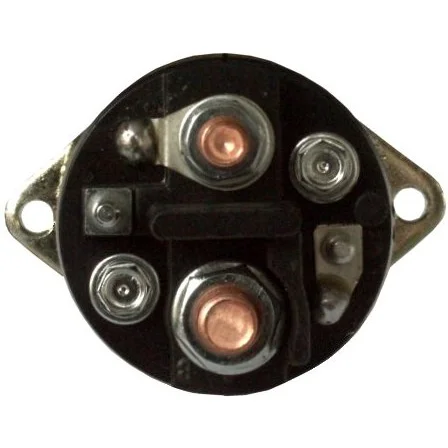

Solenoid

Technical info:

Voltage: 12, OD mm: 57.00, Total length mm: 174.50, No./mount. holes: 2

Description

Voltage: 12
OD mm: 57.00
Total length mm: 174.50
No./mount. holes: 2
Mount. hole 1: 15
Mount. hole 2: 45
Length mm: N/A
B+: M10
Height/B+: 16.00
Terminal 15A/mm: M5
Terminal 15A/Width: 10.00
Terminal 50/mm: M5
Coil bolt: M8
Coil bolt l.: 16.00
No./terminals: 4
Servicing: 28MT
Remarks: Relay terminal: M5.

Files

  • OEM
    d937a, F032231927, ZM 3-805, ZM 808, ZM 809, 3-805, 808, 809, 10457061, 10457151, 10457601, 10478614

  • Normalised article numbler
    d937a, f032231927, f042010493, f042010692, f042s10493, f042s10692, snd12791, snls648, snls648a, ss1129p, zm3805, zm808, zm809, 808, 809, 3805, 20216, 71063, 668406, 6684062, 10457061, 10457151, 10457601, 10478614
  • Description
    Voltage: 12
    OD mm: 57.00
    Total length mm: 174.50
    No./mount. holes: 2
    Mount. hole 1: 15
    Mount. hole 2: 45
    Length mm: N/A
    B+: M10
    Height/B+: 16.00
    Terminal 15A/mm: M5
    Terminal 15A/Width: 10.00
    Terminal 50/mm: M5
    Coil bolt: M8
    Coil bolt l.: 16.00
    No./terminals: 4
    Servicing: 28MT
    Remarks: Relay terminal: M5.

    Files

  • Suitable for these vehicles

    • OEM
      d937a, F032231927, ZM 3-805, ZM 808, ZM 809, 3-805, 808, 809, 10457061, 10457151, 10457601, 10478614

    • Normalised article numbler
      d937a, f032231927, f042010493, f042010692, f042s10493, f042s10692, snd12791, snls648, snls648a, ss1129p, zm3805, zm808, zm809, 808, 809, 3805, 20216, 71063, 668406, 6684062, 10457061, 10457151, 10457601, 10478614
