Article no.: VR-3022

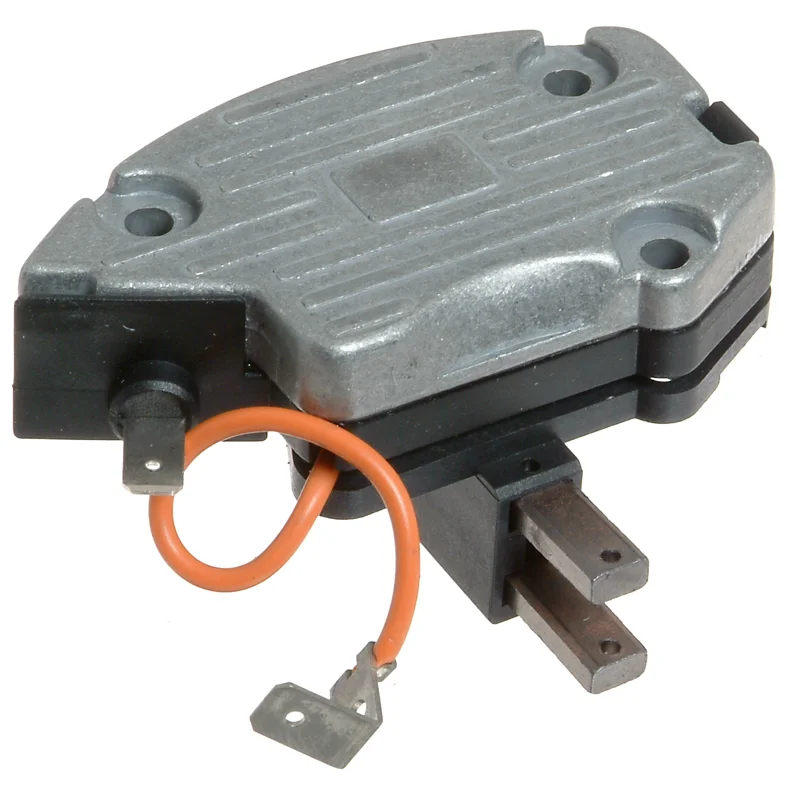

Voltage regulator LU UCB 153

Technical info:

14.3V, Alternator, temperature sensor

Description

Voltage regulator 12V 14.3V, A-Circuit, temperature sensor Battery sensor (S) via external thermistor on the vehicle. DO NOT connect full battery voltage to (S), the regulator will be damaged! For testing, use a 200 ohm resistor between (B+) and (S).

Files

  • OEM
    HU 13 0822, UCB 153, 28006, 37735

  • Fits OEM
    LU 24246, LU 24256, LU 24258A, LU 24262A, LU 24273, LU 24274, LU 54022310, LU 54022337, LU 54022420, LU 54022481, LU LRA 522, LU LRA 530, MM 63324256, MM 63324273, MM 63324274, MM 63324295, MM 63324311

  • Normalised article numbler
    hu130822, lu24246, lu24256, lu24258a, lu24262a, lu24273, lu24274, lu54022310, lu54022337, lu54022420, lu54022481, lulra522, lulra530, mm63324256, mm63324273, mm63324274, mm63324295, mm63324311, ucb153, vr3022, 28006, 37735
  • Description
    Voltage regulator 12V 14.3V, A-Circuit, temperature sensor Battery sensor (S) via external thermistor on the vehicle. DO NOT connect full battery voltage to (S), the regulator will be damaged! For testing, use a 200 ohm resistor between (B+) and (S).

    Files

  • Suitable for these vehicles

    • OEM
      HU 13 0822, UCB 153, 28006, 37735

    • Fits OEM
      LU 24246, LU 24256, LU 24258A, LU 24262A, LU 24273, LU 24274, LU 54022310, LU 54022337, LU 54022420, LU 54022481, LU LRA 522, LU LRA 530, MM 63324256, MM 63324273, MM 63324274, MM 63324295, MM 63324311

    • Normalised article numbler
      hu130822, lu24246, lu24256, lu24258a, lu24262a, lu24273, lu24274, lu54022310, lu54022337, lu54022420, lu54022481, lulra522, lulra530, mm63324256, mm63324273, mm63324274, mm63324295, mm63324311, ucb153, vr3022, 28006, 37735
